Delock klemmenblokset voor printplaat 4-polig 5,08 mm rastermaat horizontaal 66506

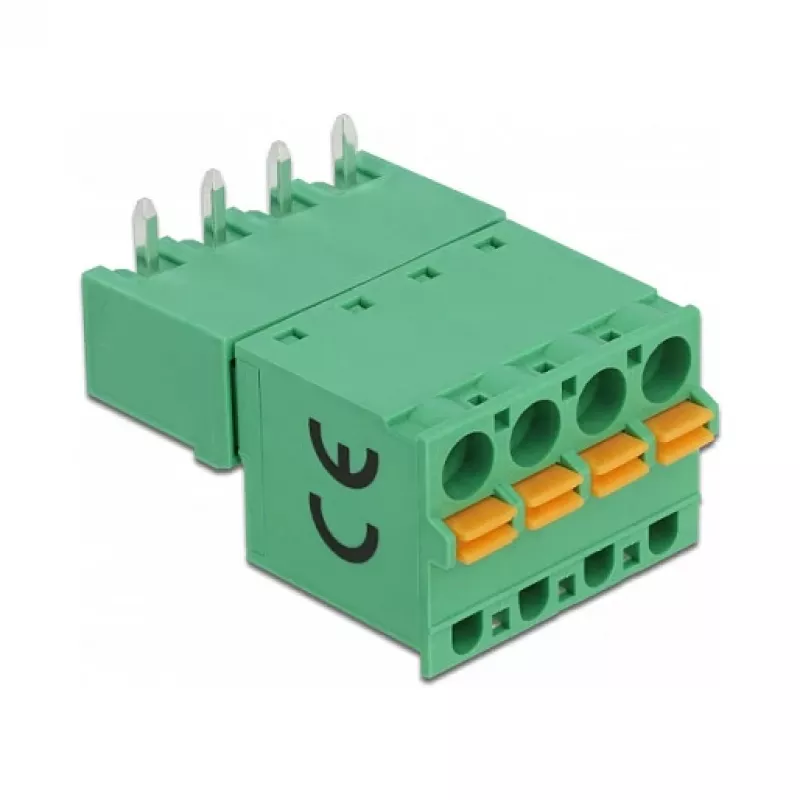

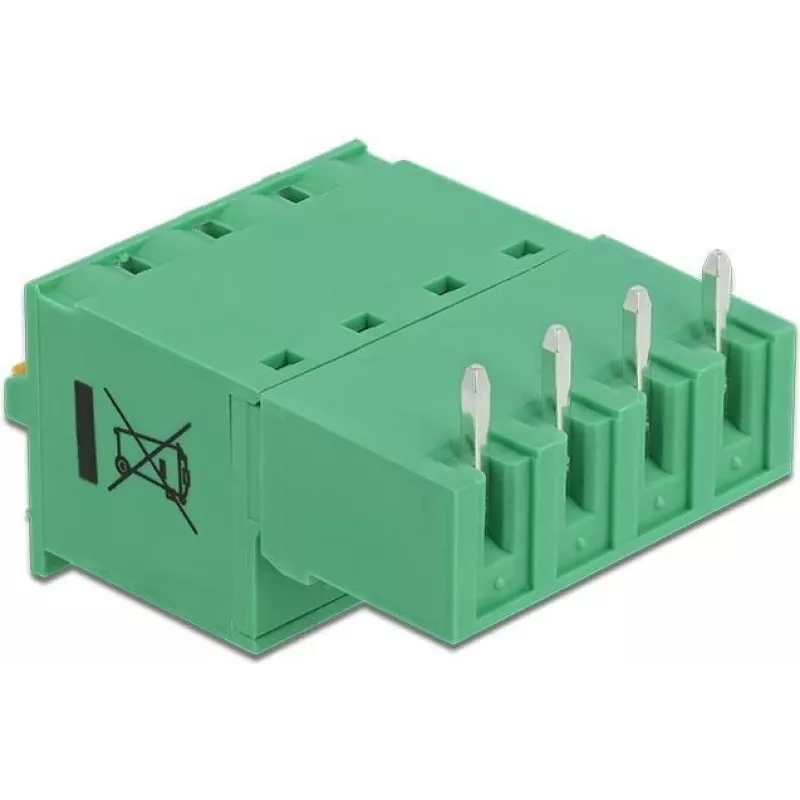

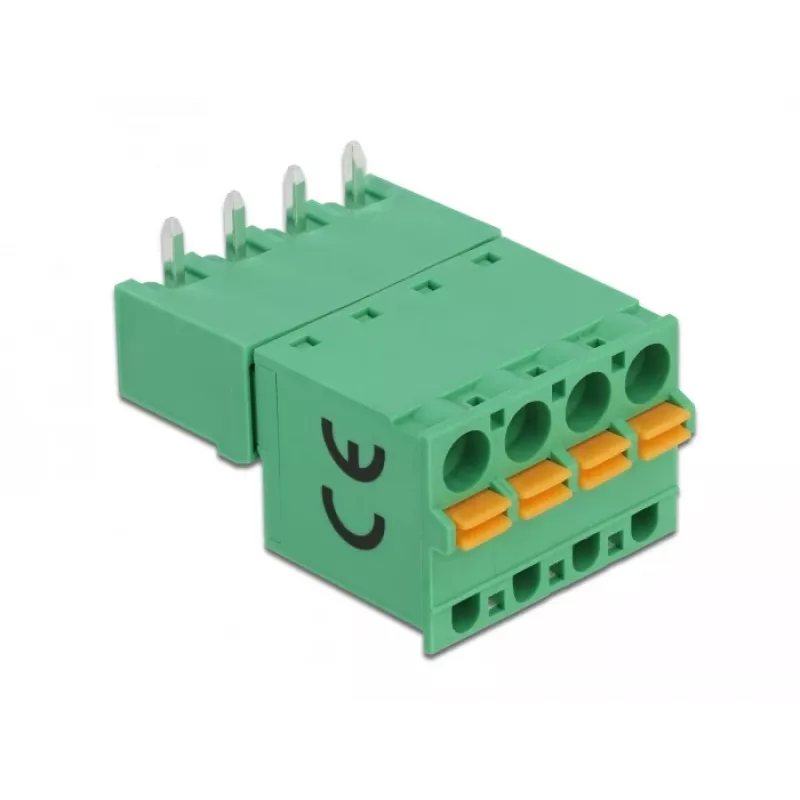

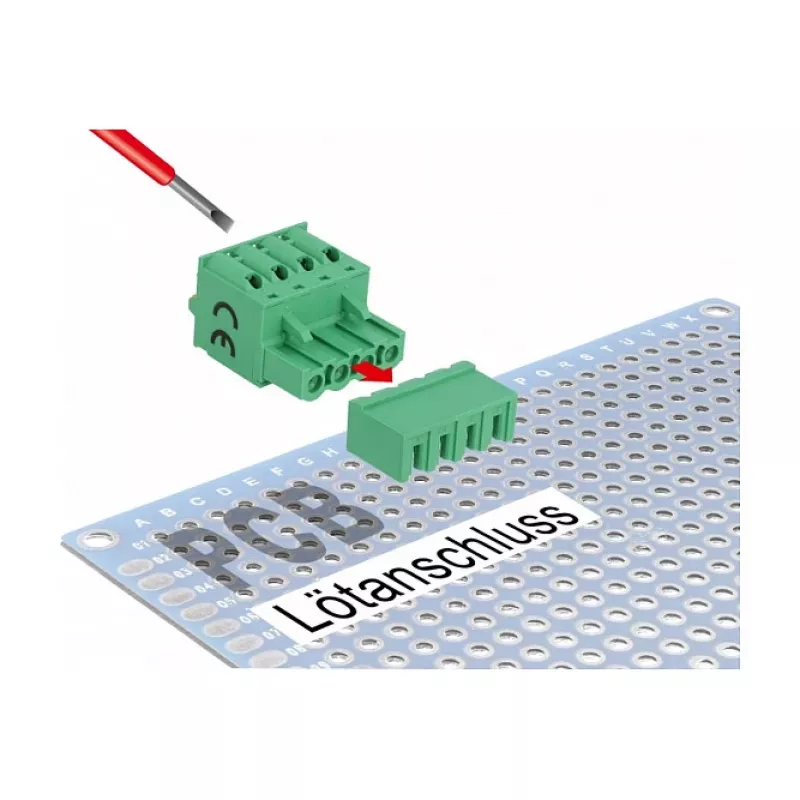

When you need a reliable wire-to-board connection on a printed circuit board, this Delock terminal block set provides a straightforward screw-terminal solution. It includes both a male and a female 4-pin connector with a 5.08 mm pitch, allowing you to create a secure, horizontal connection without soldering.

Who is it for

This set is intended for electronics hobbyists, technicians, and engineers who need to connect wires to a PCB in a detachable manner. It is suitable for prototyping, repairs, or small production runs where a robust and reusable connection is required.

Main features

• 4-pin terminal block set with 5.08 mm pitch
• Horizontal orientation for low-profile PCB mounting
• Screw terminal connection method – no soldering needed
• Rated for 10 A and 300 V
• Accepts solid or stranded wire from 24 to 12 AWG
• Operating temperature range: -40 °C to 105 °C
• Housing made of PA66, UL94V-0 flammability rated
• Contacts: brass, tin-plated; screws: steel, zinc-plated
• Colour: green

Specifications

• Connector type: Terminal block set
• Number of pins: 4
• Pitch: 5.08 mm
• Orientation: Horizontal
• Mounting type: PCB
• Connection method: Screw terminal
• Rated current: 10 A
• Rated voltage: 300 V
• Wire gauge (solid): 24 - 12 AWG
• Wire gauge (stranded): 24 - 12 AWG
• Stripping length: 7 - 8 mm
• Operating temperature: -40 °C to 105 °C
• Housing material: PA66
• Contact material: Brass, tin-plated
• Screw material: Steel, zinc-plated
• Colour: Green
• Flammability rating: UL94V-0
• Set contents: 1x male connector, 1x female connector

Tips

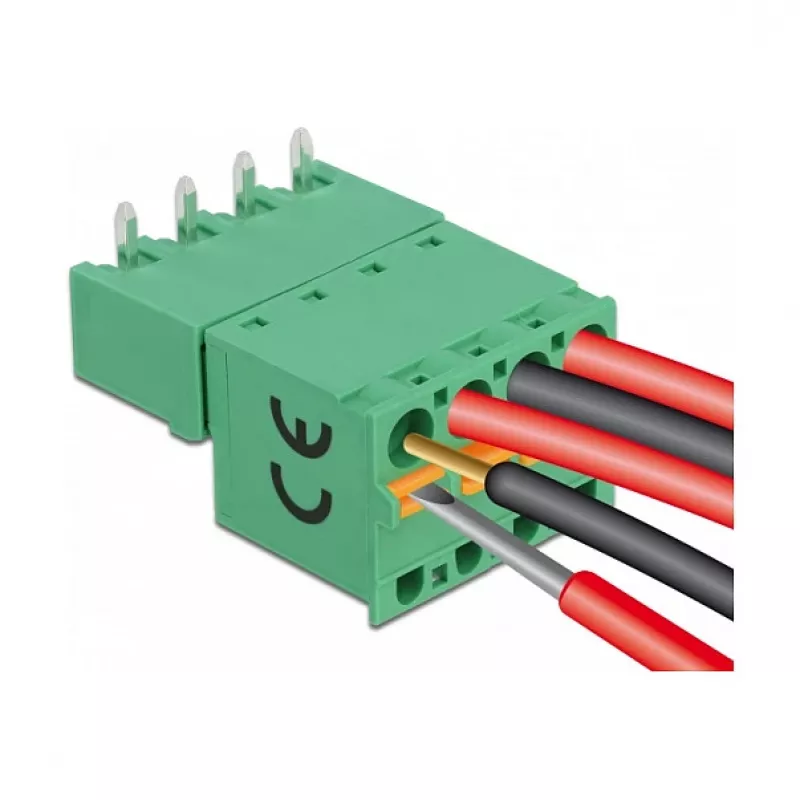

Ensure the wire is stripped to the recommended length of 7-8 mm before insertion. Tighten the screws firmly to secure the wire, but avoid over-tightening to prevent damage to the wire or terminal.
