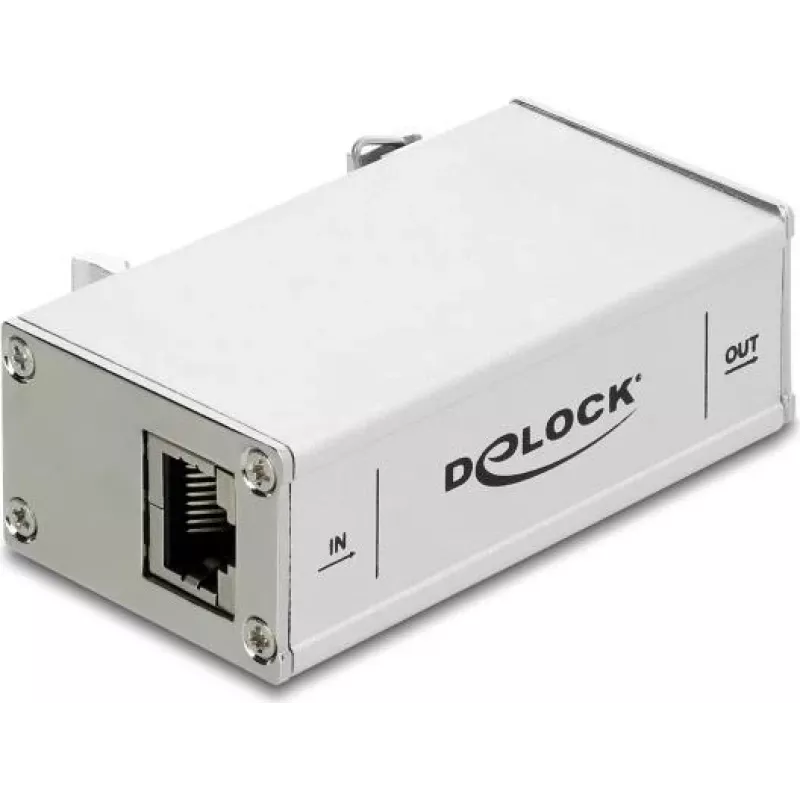

Delock netwerk-overspanningsbeveiliging RJ45 10G DIN-railmontage

Protect your high-speed network infrastructure with the Delock Network Surge Protector RJ45 10G, engineered for DIN rail mounting. This robust device safeguards sensitive Ethernet equipment from damaging voltage spikes and surges, supporting data rates up to 10 Gigabit Ethernet. Its metal housing and industrial-grade design make it ideal for harsh environments, while PoE compatibility up to 90W ensures seamless integration with powered devices.

Advantages

This surge protector offers comprehensive protection for all eight pins of an RJ45 connection, ensuring complete line coverage. With a nominal discharge current of 5 kA and maximum of 10 kA, it effectively diverts transient overvoltages. The low voltage protection levels (<600 V line-line, <1000 V line-ground) keep your equipment safe. The DIN rail mount allows for quick installation in control cabinets, and the metal housing provides durability and EMI shielding. It supports a wide frequency range up to 500 MHz, making it compatible with Cat.5e through Cat.8 cabling.

Suitable for

• Industrial Ethernet networks and automation systems
• PoE devices such as IP cameras, access points, and VoIP phones
• Outdoor or exposed installations where lightning-induced surges are a risk
• Data centers and server rooms requiring high-speed protection
• Building management and security systems

Key specifications

• Connector: RJ45 (8P8C), all 8 pins protected
• Ethernet speed: 10 Gigabit (10GBASE-T)
• Mounting: DIN rail (Hutschienenmontage)
• PoE compatibility: IEEE 802.3af/at/bt up to 90W
• Nominal discharge current: 5 kA (8/20 µs)
• Max discharge current: 10 kA (8/20 µs)
• Voltage protection level: <600 V (line-line), <1000 V (line-ground)
• Frequency range: up to 500 MHz
• Housing material: metal
• Operating temperature: -40 °C to 80 °C
• Ingress protection: IP20
• Standards: IEC 61643-21, EN 61643-21

Recommendations

For optimal performance, install this surge protector as close as possible to the protected equipment and ensure proper grounding via the DIN rail or separate ground terminal. Use shielded Cat.6A or higher cables for 10G applications. Regularly inspect the unit for signs of wear or damage, especially after electrical storms.
