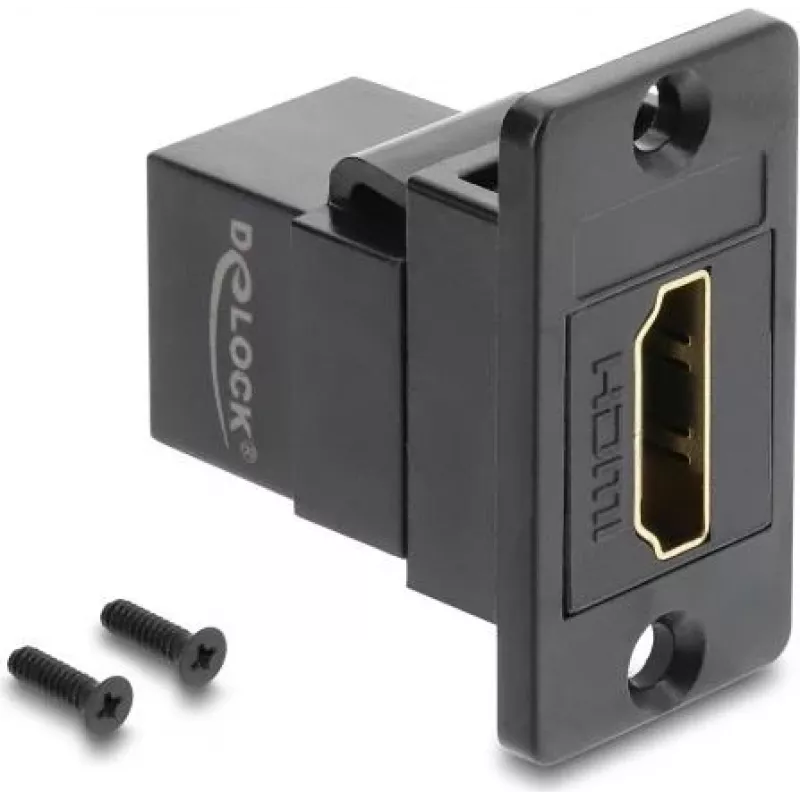

Delock paneelmontage HDMI female naar female koppelstuk 4K zwart (91194)

The Delock Panel Mount HDMI Female to Female Coupler (model 91194) is a high-quality adapter designed for permanent installation in panels, walls, or enclosures. It allows you to extend an HDMI connection through a panel, providing a clean and professional finish for AV systems, digital signage, or home theater setups. This coupler supports 4K Ultra HD resolution at 60 Hz and data transfer rates up to 18 Gbps, ensuring high-definition video and audio transmission.

Advantages

This panel mount coupler offers a secure and reliable connection for HDMI cables, eliminating the need for loose cables running through panels. Its metal housing with nickel-plated finish provides durability and shielding against interference. The gold-plated contacts ensure optimal signal integrity and corrosion resistance. With support for Audio Return Channel (ARC), HDMI Ethernet Channel (HEC), and HDCP 2.2, it is compatible with modern AV equipment.

Suitable for

• Mounting in panels, walls, or enclosures for permanent HDMI connections
• Digital signage, kiosks, and commercial displays
• Home theater and conference room installations
• Industrial and professional AV systems

Key specifications

• Connector: HDMI Female to HDMI Female
• HDMI Standard: High Speed HDMI with Ethernet
• Resolution: Up to 3840 x 2160 @ 60 Hz (4K UHD)
• Data Transfer Rate: Up to 18 Gbps
• Audio Return Channel (ARC): Yes
• HDMI Ethernet Channel (HEC): Yes
• HDCP Support: Yes (HDCP 2.2 compatible)
• HDR Support: Yes (HDR10 compatible)
• Color Sampling: 4:4:4, 4:2:2, 4:2:0
• Connector Plating: Gold-plated contacts
• Housing Material: Metal (Nickel-plated)
• Color: Black
• Mounting Type: Panel Mount
• Panel Cut-out Dimensions: 19.5 x 14.5 mm
• Mounting Hole Distance: 25 mm
• Mounting Screw Diameter: M3
• Operating Temperature: -20 °C to 85 °C
• Included Accessories: 2 x Screws

Recommendations

For optimal performance, use high-quality HDMI cables and ensure proper panel cut-out dimensions. This coupler is ideal for permanent installations where a clean and secure connection is required.
