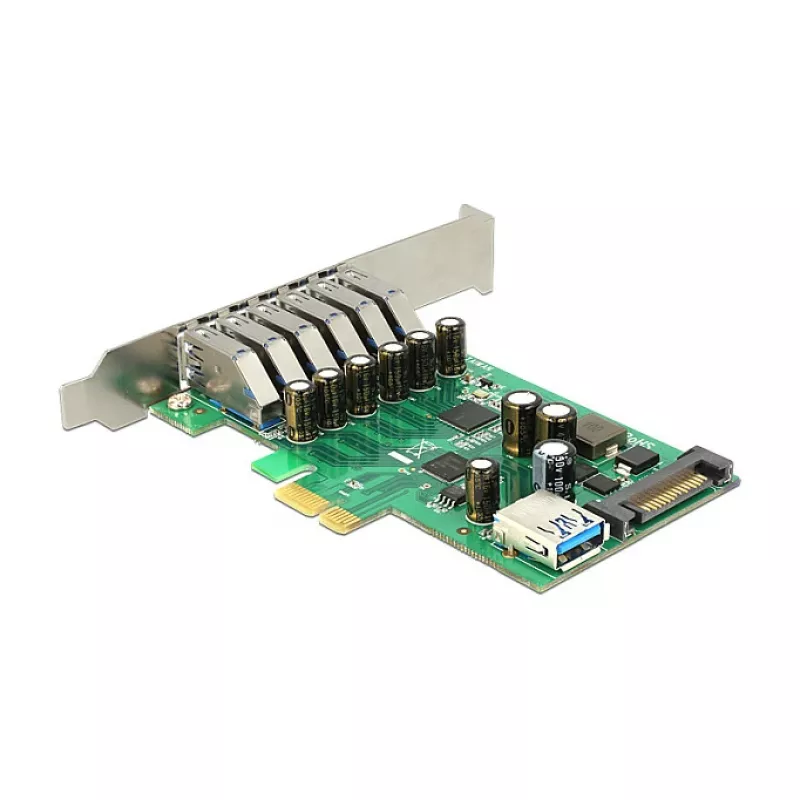

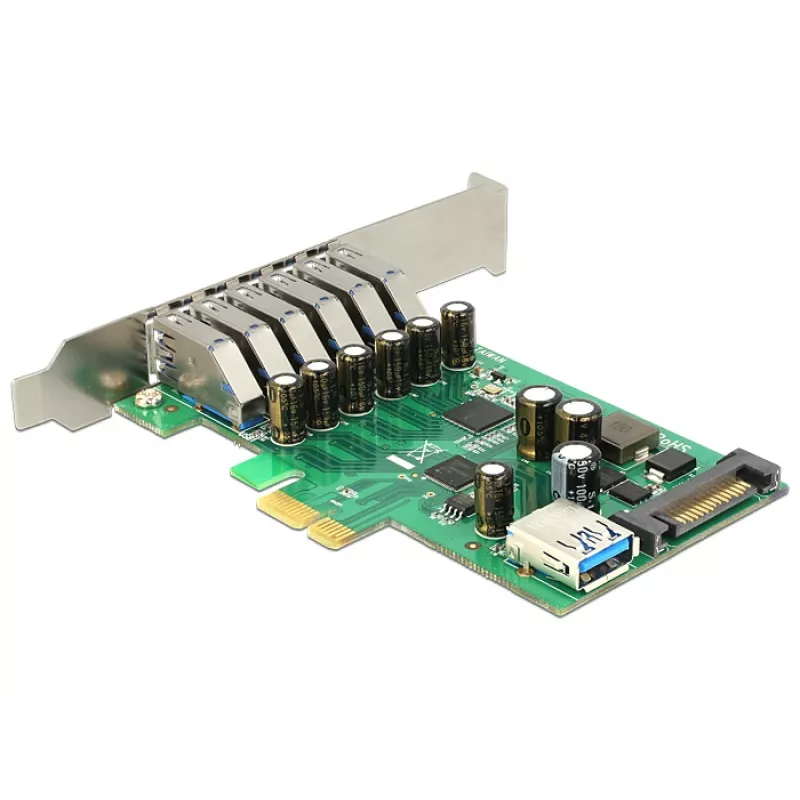

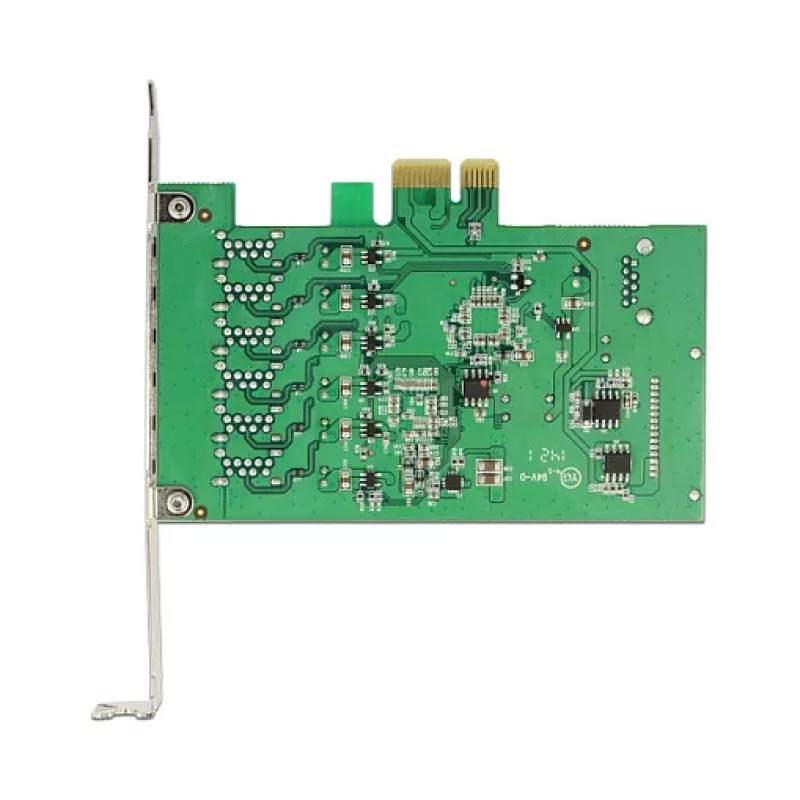

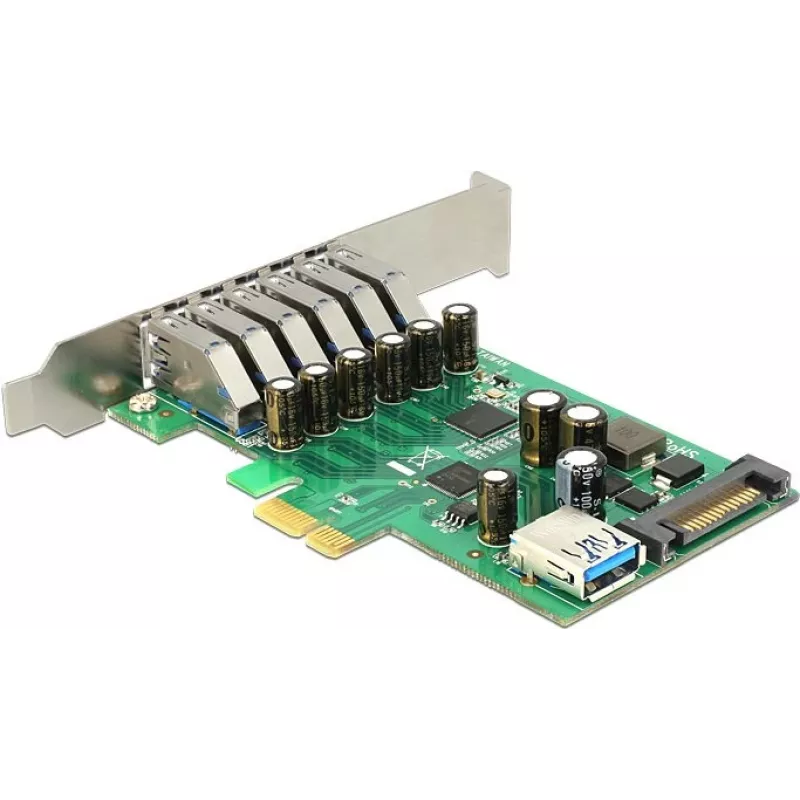

Delock PCI Express x1-kaart naar 6 x externe + 1 x interne USB 3.0

Add seven SuperSpeed USB 3.0 ports to your desktop PC with this Delock PCI Express x1 card. It provides six external Type-A ports and one internal Type-A port, all capable of data transfer rates up to 5 Gbps.

Overview

The card is powered by a Renesas uPD720201/2 controller and connects via a PCIe x1 slot. It supports PCIe 2.0 and is backward compatible with USB 2.0 and USB 1.1 devices. Each port delivers up to 900 mA, and hot-swapping is supported. A SATA power connector ensures stable operation for all connected devices.

What stands out

• Seven USB 3.0 ports: six external, one internal
• High-speed 5 Gbps data transfer
• Renesas controller for reliable performance

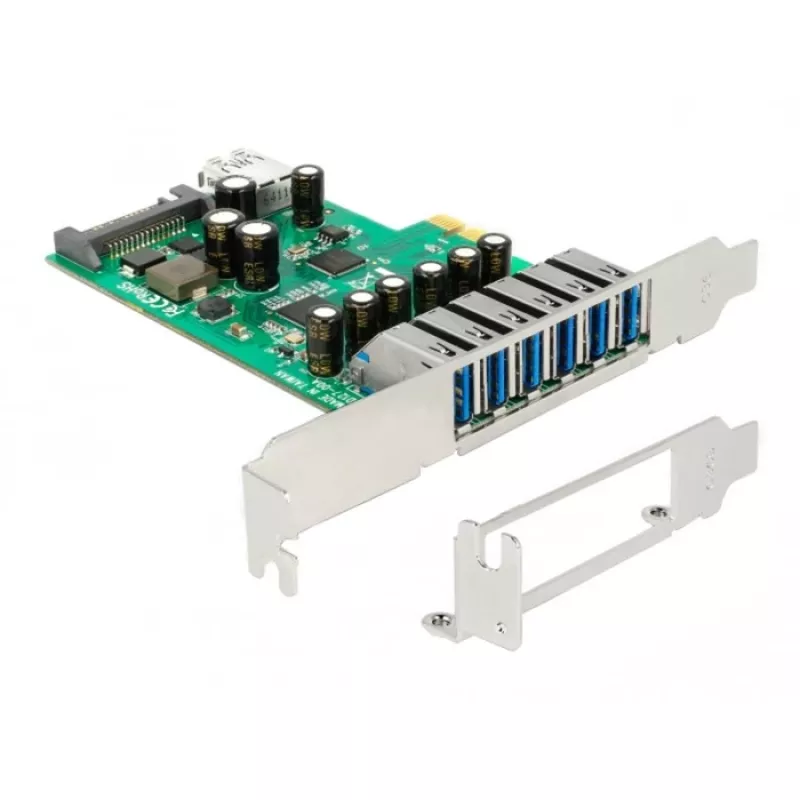

• Includes both standard and low-profile brackets

Technical details

• Host interface: PCI Express x1
• Output interface: USB 3.2 Gen 1 (USB 3.0)
• Data transfer rate (max): 5 Gbps
• Chipset: Renesas uPD720201/2
• Internal: Yes
• Hot-swap: Yes
• Mounting brackets included: Yes
• SATA power connector type: 15-pin
• Windows operating systems supported: Windows 7/8/10/11 (32/64-bit)
• Linux operating systems supported: Kernel 2.6.31 and later

Our verdict

A practical expansion card for users needing multiple high-speed USB 3.0 connections, with flexible bracket options for different case sizes.
