Delock Ratchet VI persprofiel-inzetstuk voor krimptang (90535)

The Delock Ratchet VI press profile insert is a dedicated crimping die engineered for insulated terminals, offering three precise crimp profiles from 0.5 to 6.0 mm² (AWG 20–10). Unlike generic dies, its quick-change design locks into compatible Delock ratchet crimping tools, ensuring consistent, repeatable crimps for ring, spade, and butt connectors.

Highlights

• Hardened tool steel construction for long service life
• Three crimp sizes: 0.5–1.0 mm², 1.5–2.5 mm², 4.0–6.0 mm²
• Quick-change insert for fast profile swaps
• Compatible with Delock crimping tools 90295, 90296, 90527, 90528

In daily use

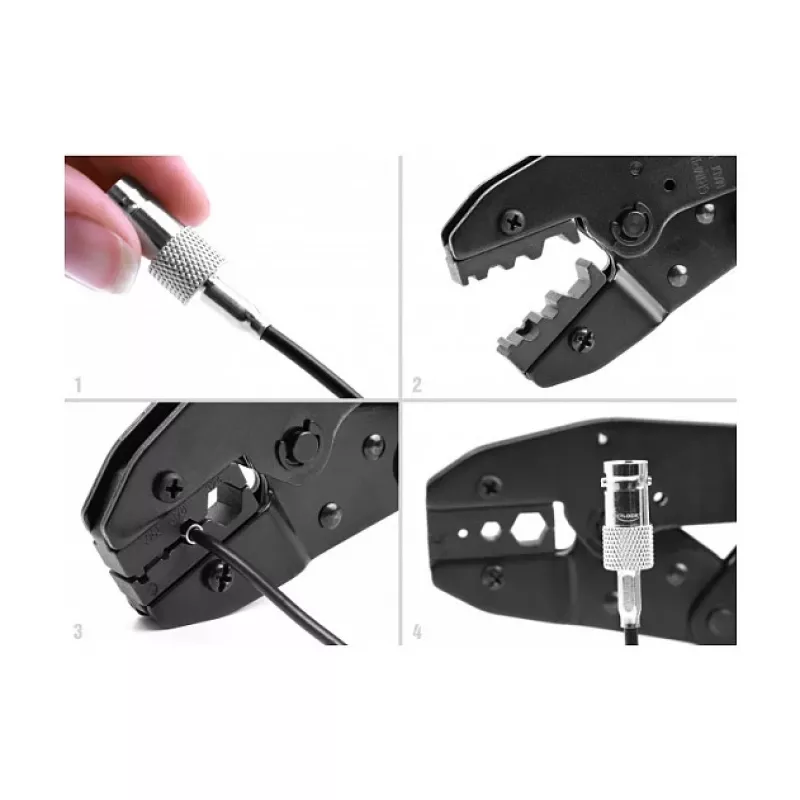

Insert the die into the tool, select the matching colour-coded profile for your terminal, and squeeze the ratchet until it releases. The profile geometry is matched to insulated terminal dimensions, producing a secure mechanical and electrical connection without damaging the insulation.

Full specifications

• Crimp profile range: 0.5 – 6.0 mm² (AWG 20 – AWG 10)
• Specific profiles: 0.5–1.0 mm² (AWG 20–18), 1.5–2.5 mm² (AWG 16–14), 4.0–6.0 mm² (AWG 12–10)
• Number of crimp sizes: 3
• Terminal compatibility: Insulated ring terminals, spade terminals, butt connectors
• Material: Hardened tool steel
• Mounting type: Quick-change insert
• Compatible tools: Delock 90295, 90296, 90527, 90528

Final note

This insert is a genuine Delock accessory, designed to work seamlessly with the specified ratchet crimping tools for professional-grade terminations.
