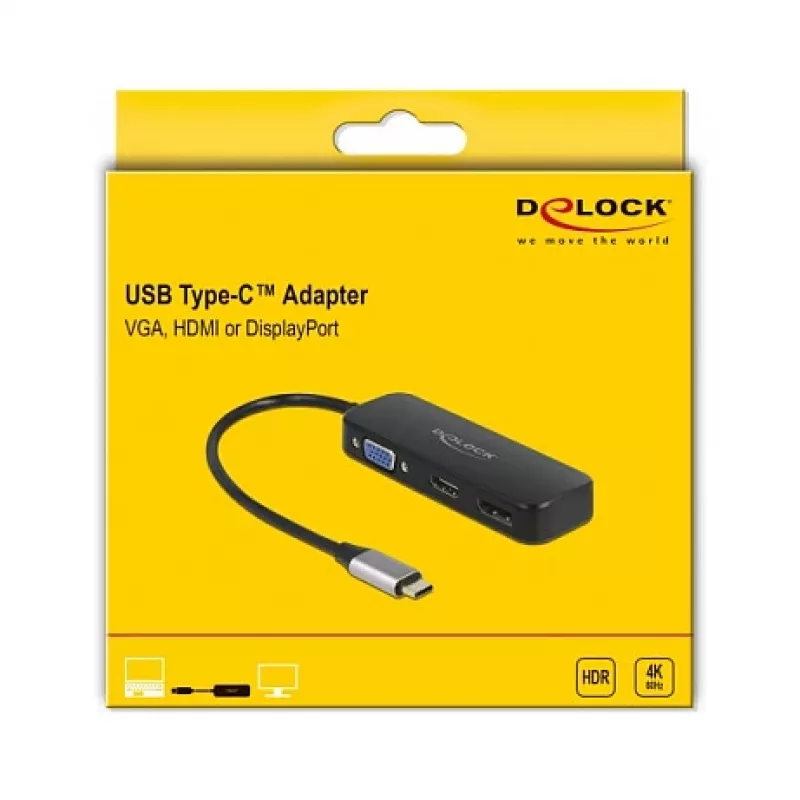

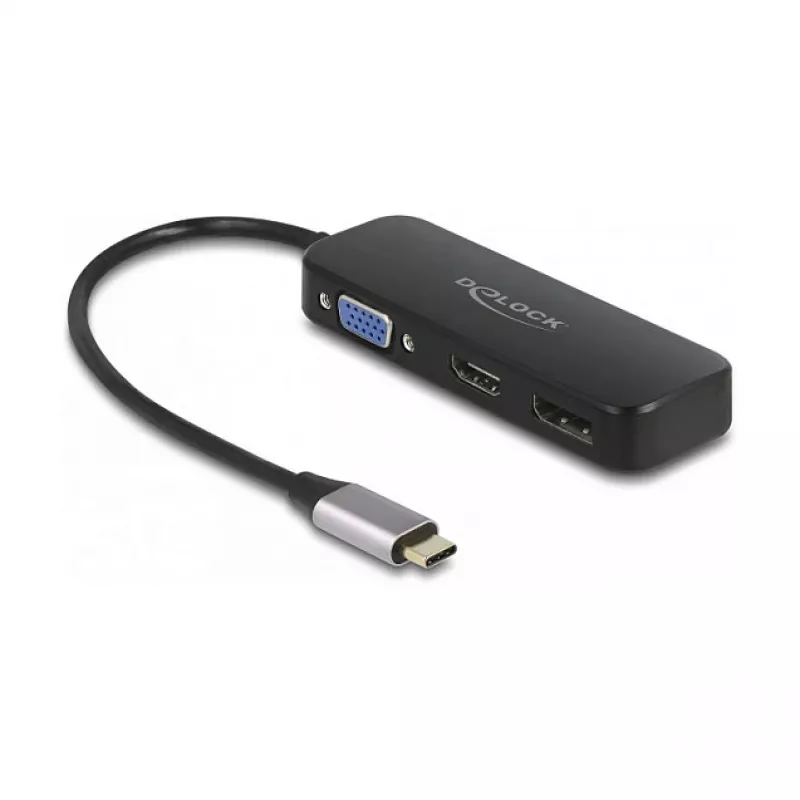

DeLOCK USB Type-C adapter naar VGA HDMI DisplayPort 4K 60 Hz

The DeLOCK USB Type-C Adapter to VGA HDMI DisplayPort 4K 60 Hz allows connection of a VGA, HDMI or DisplayPort monitor, projector or TV to a computer, laptop, tablet or smartphone with a USB-C interface that supports DisplayPort Alternate Mode. The adapter is also compatible with Thunderbolt 3 ports. It supports single-monitor DisplayPort or HDMI output up to 3840 x 2160 at 60 Hz and can mirror two outputs (HDMI + VGA) simultaneously at up to 1920 x 1080 @ 60 Hz per monitor.

Advantages

The adapter provides three video outputs (VGA, HDMI, DisplayPort) in a compact, wired form factor and is compatible with devices that support DisplayPort Alternate Mode over USB-C and with Thunderbolt 3. It supports up to 4K @ 60 Hz on a single compatible output and offers dual mirrored output (HDMI + VGA) at Full HD. The product is black, includes one HDMI and one VGA port, and is suitable for connecting legacy and modern displays.

Suitable for

• Connecting a laptop or tablet with USB-C (DisplayPort Alt Mode) to an external 4K monitor via HDMI or DisplayPort
• Connecting older VGA projectors or monitors alongside an HDMI display (mirrored output)
• Using with Thunderbolt 3 equipped computers for external display output

Key specifications

• Brand: DELOCK
• Model / MPN: 64156
• EAN: 4043619641567
• Ports: 1 × VGA (D-Sub), 1 × HDMI, 1 × DisplayPort
• Maximum resolution (single output): up to 3840 × 2160 @ 60 Hz
• Dual mirrored output (HDMI + VGA): up to 1920 × 1080 @ 60 Hz per monitor
• Connectivity: Wired, USB-C with DisplayPort Alternate Mode; compatible with Thunderbolt 3
• Product colour: Black

How to use

Connect the adapter to the USB-C or Thunderbolt 3 port of your computer, laptop, tablet or smartphone that supports DisplayPort Alternate Mode. Attach the required display cable(s) to the adapter’s VGA, HDMI or DisplayPort output and to the external display(s). For single 4K output use either the HDMI or DisplayPort connection. To mirror two displays, connect both HDMI and VGA; both will show the same image at up to 1920 × 1080 @ 60 Hz.

Recommendations

Use high-quality HDMI or DisplayPort cables for 4K @ 60 Hz performance and ensure the host device supports DisplayPort Alternate Mode or Thunderbolt 3. When using dual mirrored output, verify display resolutions and refresh rates to match 1920 × 1080 @ 60 Hz for optimal compatibility.
