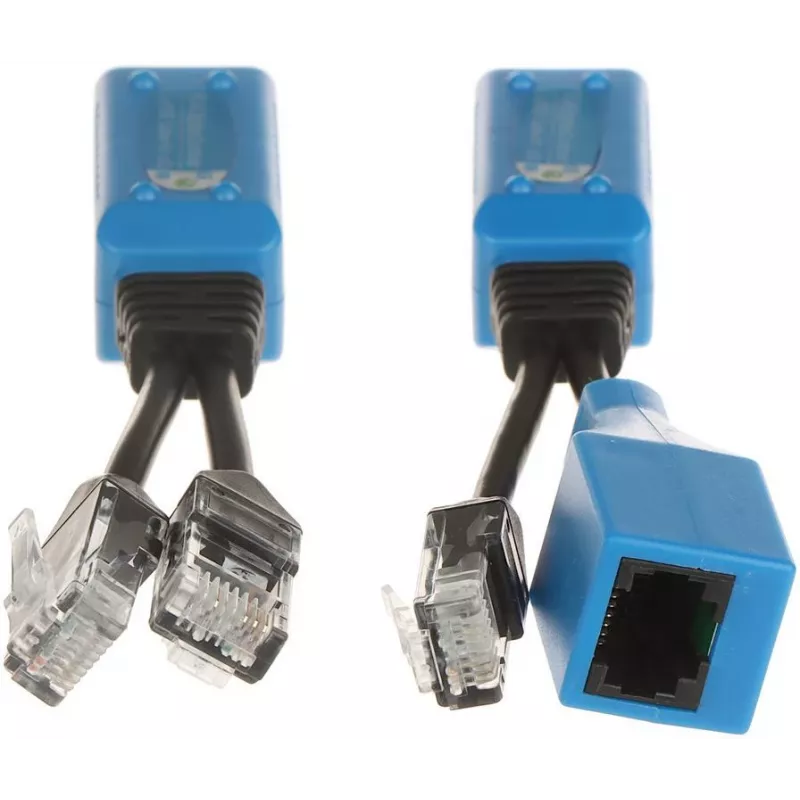

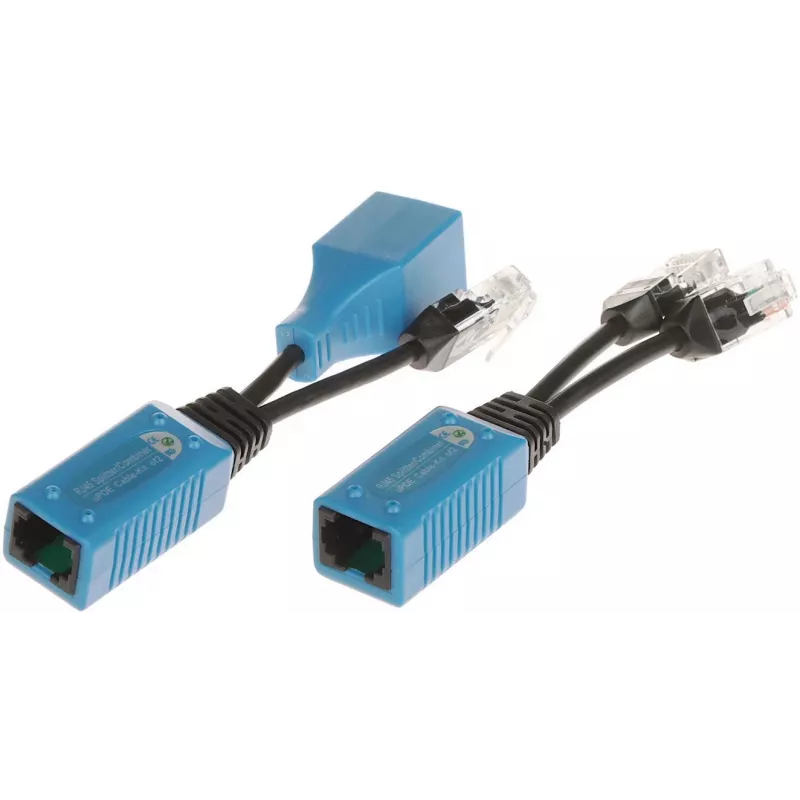

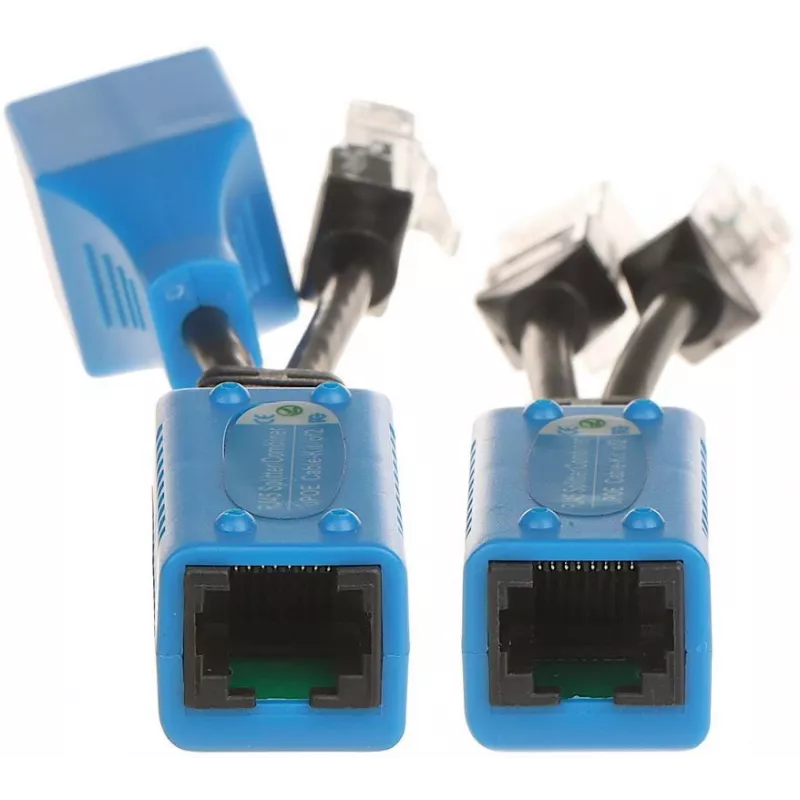

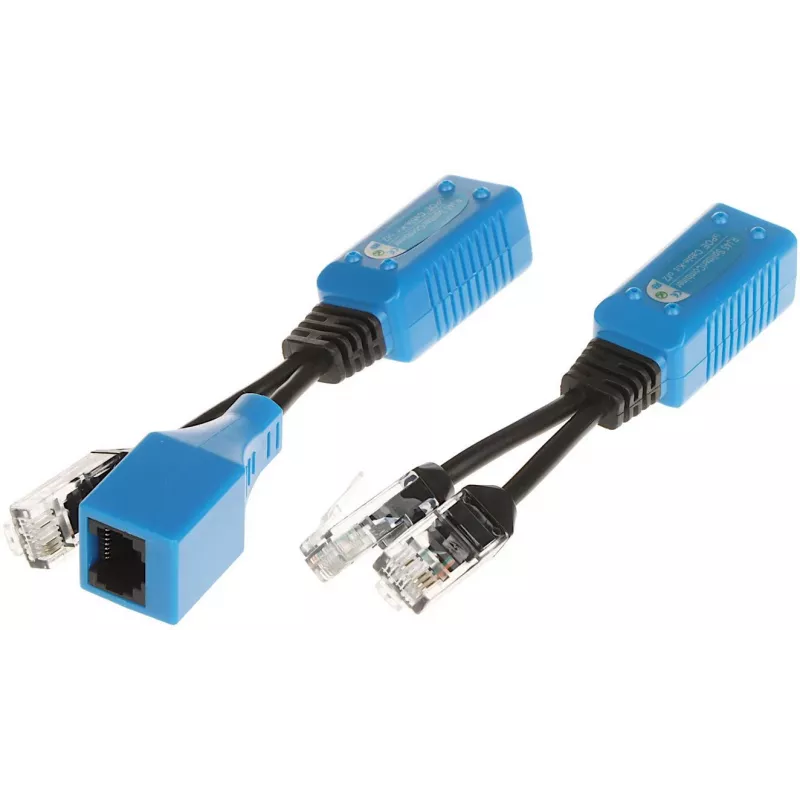

DELTA AD-UTP-2W/WG RJ45 UTP-splitter adapter 2x RJ45 female

The DELTA AD-UTP-2W/WG is a compact RJ45 UTP splitter adapter designed to connect two devices via a single Ethernet cable. It splits an 8-wire input into two 4-wire outputs, enabling shared network connectivity for low-speed applications up to 100 Mbps. Ideal for temporary setups or cable-saving scenarios, this passive adapter requires no external power and supports Cat5, Cat5e, and Cat6 cables.

Advantages

Cost-effective solution for reducing cable clutter; plug-and-play installation with no configuration needed; durable PVC housing ensures long-lasting performance; nickel-plated connectors for reliable signal transmission.

Suitable for

• Connecting two devices (e.g., computers, printers) to a single Ethernet wall outlet
• Temporary network expansions in offices or home environments
• Applications where only two pairs (4 wires) are sufficient, such as 10/100 Mbps networks

Key specifications

• Product Type: RJ45 UTP Splitter Adapter
• Input Connector: 1x RJ45 Male
• Output Connectors: 2x RJ45 Female
• Supported Cable Type: UTP (Unshielded Twisted Pair)
• Ethernet Standard Support: 10/100 Mbps (Fast Ethernet)
• Wiring Configuration: Splits 8-wire input into two 4-wire outputs
• Compatibility: Cat5, Cat5e, Cat6
• Housing Material: Durable PVC/Plastic
• Color: Black
• Power Requirement: Passive (No external power required)
• Shielding: Unshielded
• Data Transfer Rate: Up to 100 Mbps
• Number of Ports: 1 Input, 2 Output
• Integrated Cable Length: Approx. 15 cm (pigtail)
• Connector Plating: Nickel-plated

Recommendations

For optimal performance, use with Cat5e or Cat6 cables and ensure both connected devices support 10/100 Mbps. Note that simultaneous full-speed operation may require manual switching or specific network configuration.
