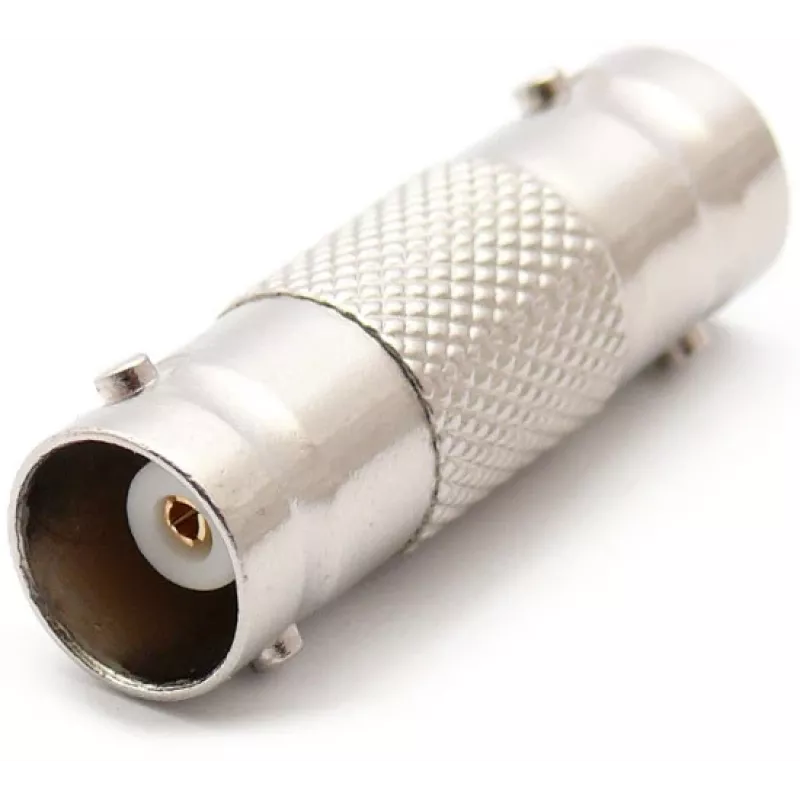

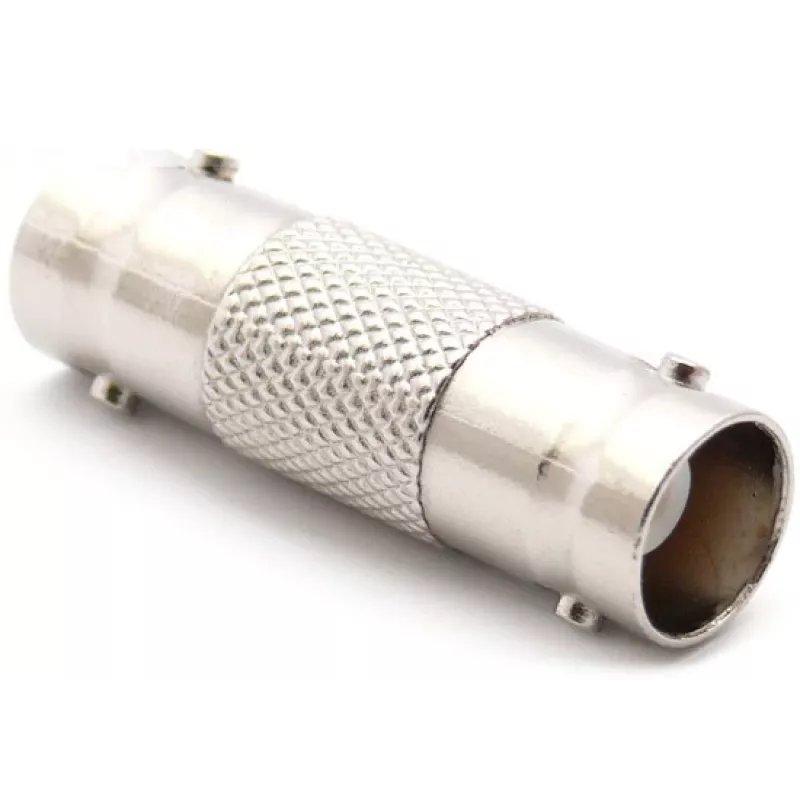

DELTA BNC bus naar BNC bus koppeladapter, 75 Ohm, vernikkeld messing, dubbel-BNC-BNC

This BNC barrel connector provides a reliable inline connection between two BNC male cables, ideal for extending or joining coaxial runs in CCTV, video surveillance, and RF applications. Its double BNC-BNC design ensures secure coupling with minimal signal loss.

Advantages

The nickel-plated brass body and contacts offer excellent corrosion resistance and durability, while the PTFE insulation maintains stable impedance at 75 Ohm. With a frequency range up to 4 GHz, it supports both analog and digital video signals, including SDI. The coupler is RoHS compliant and rated for 500 mating cycles, ensuring long-term reliability.

Suitable for

• Extending coaxial cable runs in CCTV systems
• Joining BNC cables in video surveillance setups
• RF and test & measurement connections
• Broadcast and professional video environments

Key specifications

• Connector type: BNC female to BNC female
• Impedance: 75 Ohm
• Body material: Nickel-plated brass
• Contact material: Brass with nickel plating
• Insulation: PTFE (Teflon)
• Frequency range: DC to 4 GHz
• Voltage rating: 500V peak
• Temperature range: -40°C to +85°C
• Durability: 500 mating cycles
• Color: Silver
• RoHS compliant: Yes

Recommendations

For best performance, ensure that both BNC male connectors are clean and properly seated. This coupler is ideal for professional installations where signal integrity is critical.
