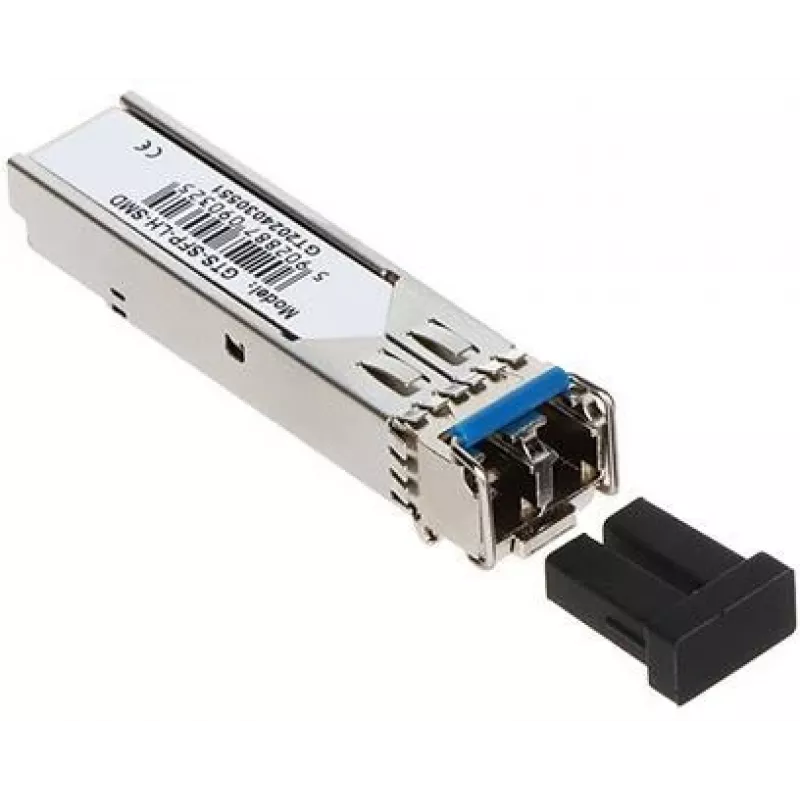

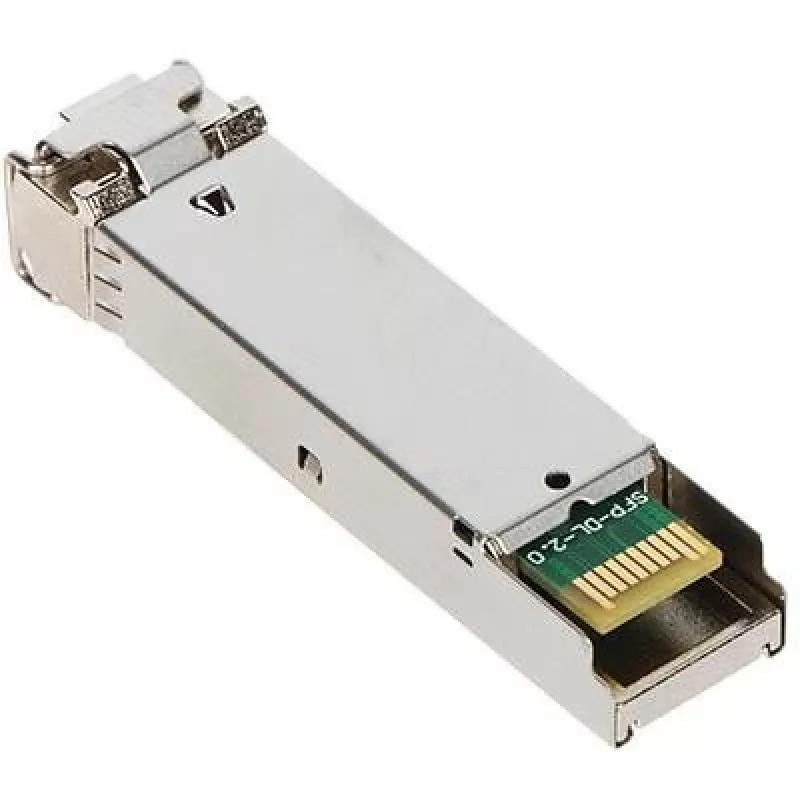

DELTA GTS-SFP-LH-SMD single-mode SFP-transceiver 1,25 Gbit/s 1550 nm 80 km LC duplex

The DELTA GTS-SFP-LH-SMD is a high-performance single-mode SFP transceiver module designed for long-haul Gigabit Ethernet and Fibre Channel applications. It delivers reliable data transmission over distances up to 80 km, making it ideal for metropolitan area networks and enterprise backbone connections.

Advantages

This module offers exceptional optical budget of 29 dB, ensuring stable links even in challenging environments. With hot-pluggable SFP form factor, it enables easy installation and maintenance without network downtime. The built-in DDM/DOM support allows real-time monitoring of optical parameters for proactive network management.

Suitable for

• Gigabit Ethernet (1000BASE-LX/LH) networks
• 1G/2G Fibre Channel storage area networks
• Metro and access network infrastructure
• Long-distance point-to-point connections

Key specifications

• Form Factor: SFP
• Fiber Type: Single-Mode (OS2)
• Data Rate: 1.25 Gbps
• Wavelength: 1550 nm
• Max Distance: 80 km
• Connector: LC Duplex
• Transmit Power: 0 to +5 dBm
• Receive Sensitivity: -24 dBm
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, pair this module with single-mode fiber patch cables (OS2) and ensure proper cleaning of optical connectors. Compatible with any MSA-compliant SFP slot.
