DELTA HDMI-naar-AV-converter - zwart

The DELTA HDMI/AV Converter is a compact and reliable device that converts digital HDMI signals to analog composite video and stereo audio. Ideal for connecting modern HDMI sources to older TVs, projectors, or AV receivers with RCA inputs. Supports resolutions up to 1080p input and outputs 480i/576i in NTSC or PAL format. Plug-and-play operation with USB power supply.

Advantages

Easy to use with no drivers required; supports HDCP; switchable NTSC/PAL; low power consumption.

Suitable for

• Connecting HDMI devices (Blu-ray players, game consoles, set-top boxes) to legacy AV equipment
• Home theater setups with older projectors or TVs
• Digital signage and presentations

Key specifications

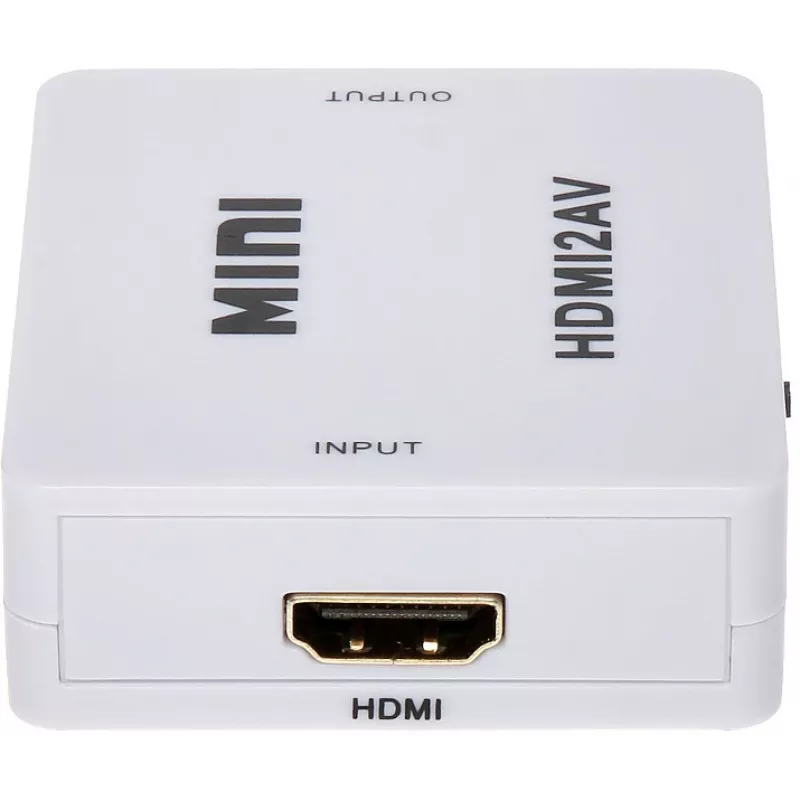

• Input: 1 x HDMI (HDMI 1.3)

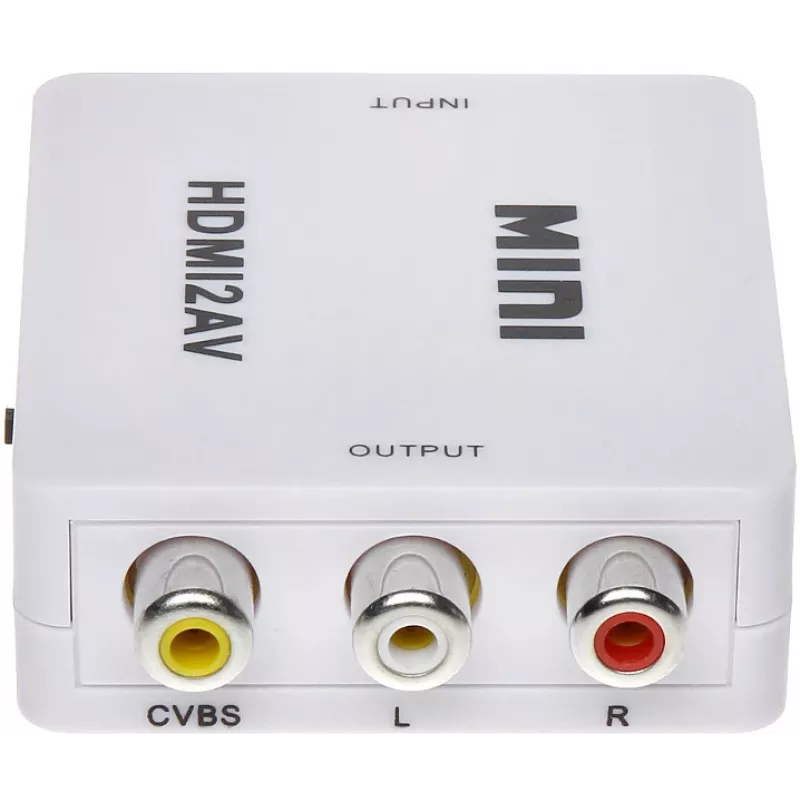

• Output: 3 x RCA (Composite Video, L/R Audio)
• Supported Input Resolutions: 480p, 576p, 720p, 1080i, 1080p @50/60Hz
• Output Resolution: 480i (NTSC) / 576i (PAL)
• Power: USB 5V (Mini USB port)
• Power Consumption: <1W
• HDCP Support: Yes
• Material: ABS Plastic
• Color: Black
• Included: Mini USB power cable

Recommendations

For best performance, use a high-quality HDMI cable and ensure the USB power source provides stable 5V. Compatible with all standard HDMI sources.
