DEWALT TCT cirkelzaagblad 160x20mm 30T +10° spaanghoek 16mm ring

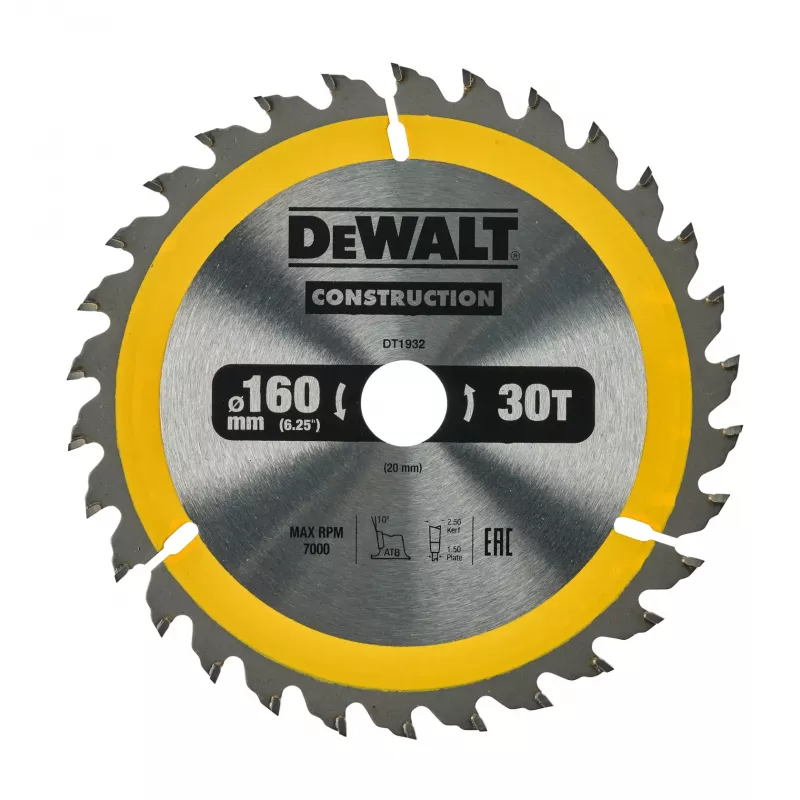

The DEWALT DT1932 is a high-performance tungsten carbide tipped (TCT) circular saw blade designed for general purpose wood cutting. With a blade diameter of 160 mm, a bore of 20 mm, and 30 teeth with a positive +10° rake angle, this blade delivers clean, precise cuts in softwood, hardwood, plywood, MDF, chipboard, and laminate. The included 16 mm reduction ring ensures compatibility with a wide range of saws.

Advantages

Engineered for durability and accuracy, the DT1932 features ATB (Alternate Top Bevel) tooth geometry for efficient cross-cutting and ripping. The high-grade steel body and tungsten carbide tips provide long-lasting sharpness, while the positive rake angle reduces cutting resistance for smoother operation. Ideal for portable circular saws, cordless saws, and table saws.

Suitable for

• Softwood and hardwood
• Plywood, MDF, chipboard, and laminate
• General woodworking and construction
• Cross-cutting and rip-cutting applications

Key specifications

• Blade Diameter: 160 mm
• Bore Diameter: 20 mm
• Reduction Ring: 16 mm (included)
• Number of Teeth: 30
• Tooth Material: Tungsten Carbide Tipped (TCT)
• Rake Angle: +10°
• Kerf Thickness: 2.2 mm
• Plate Thickness: 1.4 mm
• Max RPM: 9500
• Application: General Purpose Wood Cutting

Recommendations

For optimal performance, ensure the blade is properly mounted and the saw is set to the correct RPM. Always use appropriate safety equipment. This blade is not suitable for metal, concrete, or stone cutting.
