Digital signage-flatpanel iiyama LH6564UHS-B1AG 65 inch 4K Ultra HD

The ProLite LH6564UHS-B1AG is a 65" 4K Ultra HD digital signage flat panel designed for continuous commercial use. Running Android 14 and offering Wi‑Fi connectivity, this display supports remote content delivery and 24/7 operation. With a VA panel, 3840 x 2160 resolution and 500 cd/m² brightness, the unit fits retail, corporate, hospitality and restaurant environments and features a black finish and VESA mounting for flexible installation.

Advantages

This digital signage display integrates Android OS for on‑display app installation and local playback, and includes iiSignage² (CMS), iiControl (DMS) and iiShare (wireless presentation) for simplified content and device management. Signal FailOver ensures the screen automatically switches to an available input if the primary source is lost, maintaining continuous content playback. The panel supports both landscape and portrait orientations and includes built‑in speakers for immediate audio playback.

Suitable for

• Retail stores: advertising and product promotions
• Corporate environments: reception displays and internal communication
• Hospitality: hotel lobbies and information screens
• Restaurants and cafes: menu boards and promotional content

Key specifications

• Display diagonal: 65"
• Resolution: 3840 x 2160 (4K Ultra HD)
• Panel type: VA
• Brightness: 500 cd/m²
• Pixel pitch: 0.372 x 0.372 mm
• Response time: 6.5 ms
• Contrast ratio (typical): 5000:1
• Operation: 24/7
• Operating system: Android 14
• Connectivity: Wi‑Fi enabled

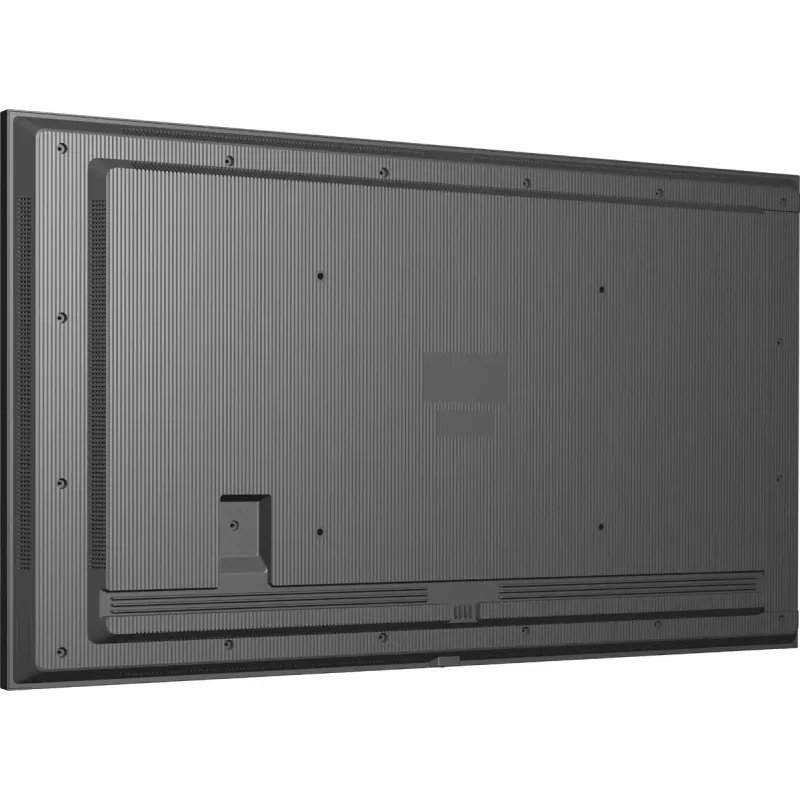

• VESA mounting: Yes
• Built‑in speakers: Yes
• Colour: Black

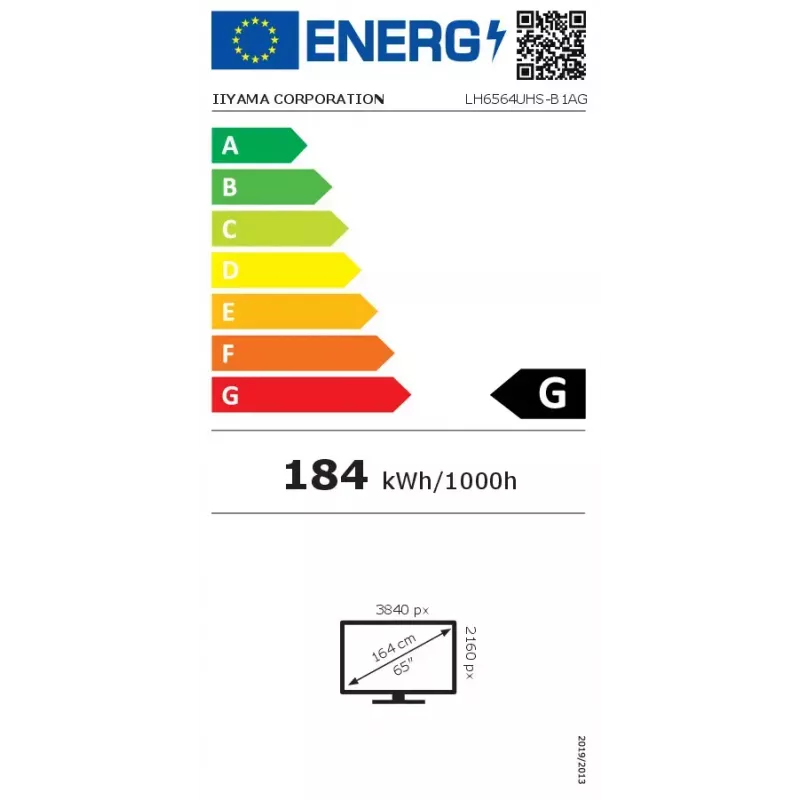

• Energy efficiency class (SDR): G; Energy consumption (SDR) per 1000 h: 184 kWh

How to use

Install the display using a compatible VESA mount and connect it to power and your network via Wi‑Fi. Use the onboard Android 14 interface to install or run signage applications directly on the panel, or deploy and manage content remotely with iiSignage² (CMS) and iiControl (DMS). Configure input priorities and enable Signal FailOver to ensure automatic switching between sources if the main feed is lost. Select landscape or portrait orientation according to installation requirements and upload 4K content for optimal image quality.

Recommendations

Place the screen where brightness of 500 cd/m² provides sufficient visibility for the viewing distance and ambient light; for outdoor or very bright locations consider additional shading. Schedule regular content checks and use the CMS tools to monitor device status for uninterrupted 24/7 operation.
