DIN-rail montageset Barox PD-DIN-kit-VDSL voor DIN-rail klem PD-VDSL-MI100

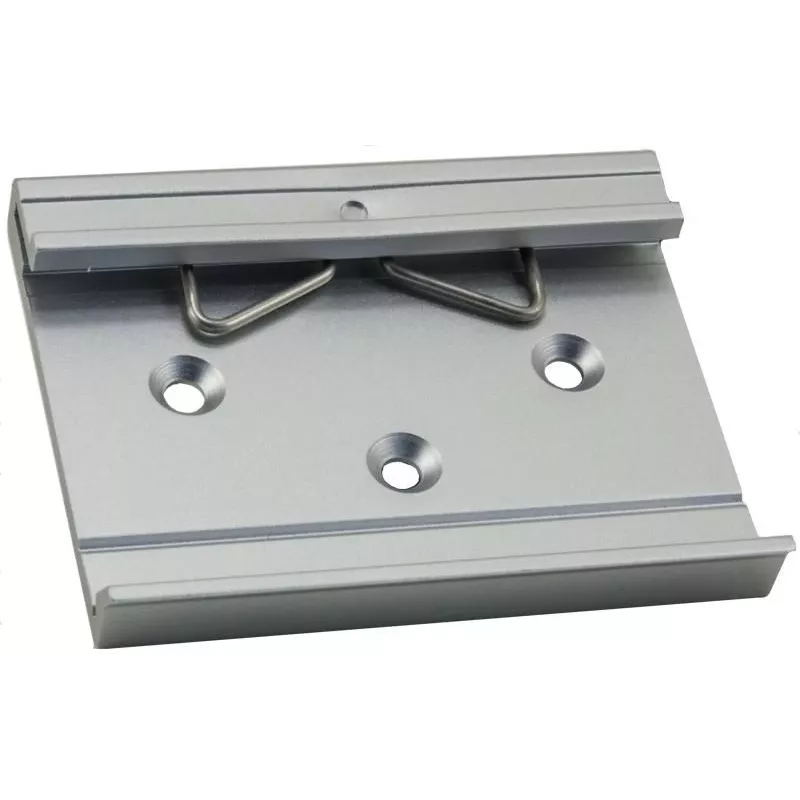

Barox PD-DIN-kit-VDSL is a DIN-rail mounting kit designed specifically to attach the Hutschienenklammer PD-VDSL-MI100 to standard DIN rails. The kit enables secure mechanical fixation of VDSL equipment inside electrical cabinets, service closets and telecom racks, providing stable positioning and tidy installation for devices that require DIN-rail mounting.

Advantages

The PD-DIN-kit-VDSL streamlines installation by matching the mounting geometry of the PD-VDSL-MI100 clamp with commercial DIN rails, eliminating the need for ad-hoc brackets or modifications. It delivers reliable mechanical support under typical industrial and telecommunication conditions, helping to reduce movement and vibration. The kit supports a neat, space-efficient layout inside cabinets and racks, improving accessibility for wiring and maintenance.

Suitable for

• Mounting Hutschienenklammer PD-VDSL-MI100 on standard DIN rails
• Securing VDSL/telecom equipment inside control cabinets and service closets
• Organized rack and cabinet installations where DIN-rail attachment is required

Key specifications

• Intended mounting: standard 35 mm DIN rail (EN 60715)
• Compatibility: designed to interface with the PD-VDSL-MI100 clamp
• Material: metal/plastic combination for structural support and insulation (manufacturer specification)
• Fixation method: clip-on or screw-assisted attachment to DIN rail depending on installation condition
• Operating environment: indoor electrical cabinets and telecom enclosures

How to use

Position the PD-DIN-kit-VDSL on the DIN rail at the desired location and secure the Hutschienenklammer PD-VDSL-MI100 to the kit according to the clamp's installation instructions. Ensure the kit is correctly engaged with the profile of the 35 mm DIN rail and that any screws or locking features are tightened to prevent movement. Route signal and power cabling with adequate strain relief and maintain recommended clearances inside the cabinet to allow ventilation and access.

Recommendations

Verify compatibility with the specific PD-VDSL-MI100 clamp before installing, and follow local installation and safety standards for telecommunications and electrical equipment. Use appropriate tools and torque settings for any fasteners, and check that the assembly is secure after initial operation and periodically during maintenance.
