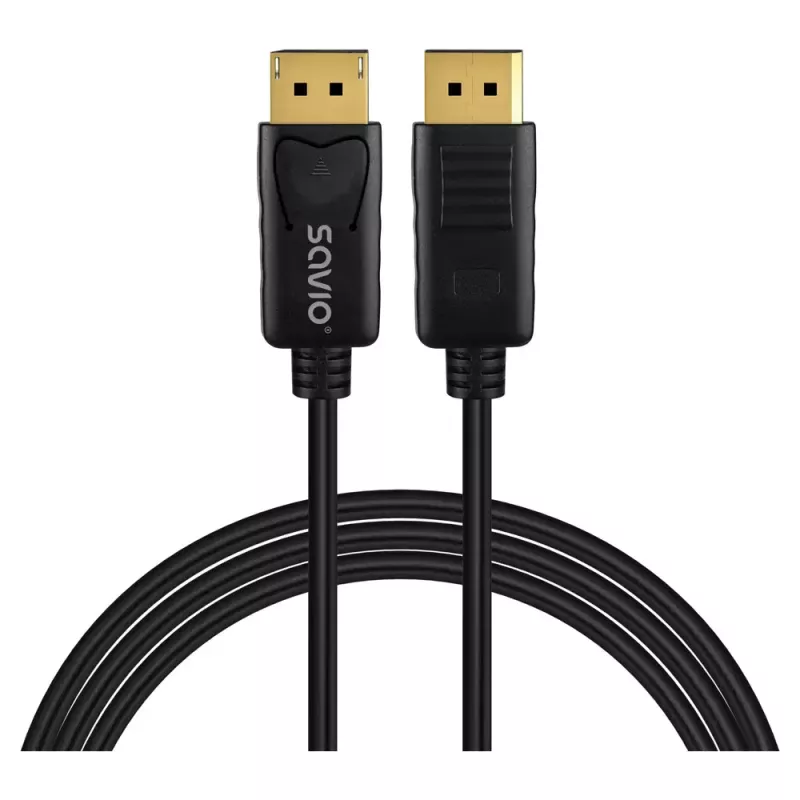

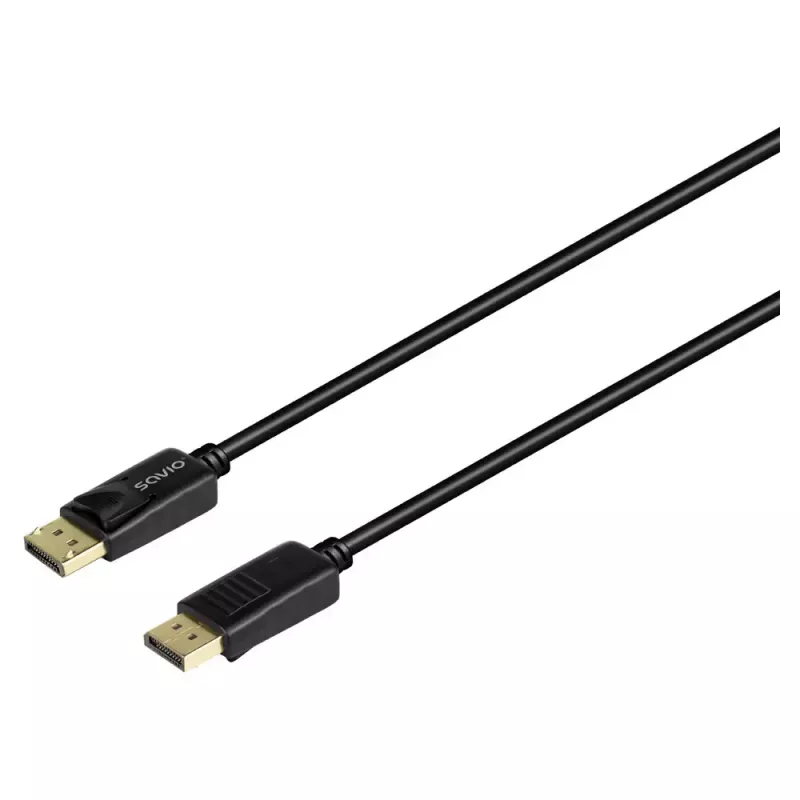

DisplayPort 1.4-kabel SAVIO CL-206, 3 m, passief, ondersteuning voor 8K@60Hz / 4K@120Hz

SAVIO CL-206 is a 3 m DisplayPort 1.4 passive cable designed to transmit high-resolution video and multi-channel audio between PCs, graphics cards, monitors and other DisplayPort-compatible AV devices. The cable uses DisplayPort 1.4 bandwidth features and Display Stream Compression (DSC) to support up to 8K@60Hz and 4K@120Hz (depending on source and display), while AWG 30 conductors and a 5.3 mm outer diameter provide mechanical durability and flexible handling for desktop and home-theatre setups.

Advantages

The cable offers DisplayPort-to-DisplayPort connectivity with support for up to 32.4 Gbps bandwidth, DSC compression and high refresh rate modes such as 4K at 144 Hz and Full HD at 240 Hz. Its 3 m length increases installation flexibility, and the construction balances durability with enough flexibility for cable routing. Support for HDR and multi-channel audio ensures compatibility with modern monitors and AV systems.

Suitable for

• Connecting a PC or graphics card to a high-resolution monitor (8K/4K)
• Gaming setups that require high refresh rates and low latency
• Professional graphics, video editing and CAD work requiring accurate, high-detail displays
• Home theatre systems or AV racks where longer cable runs are needed

When it may not be suitable

This passive DisplayPort 1.4 cable requires both source and display to support the advertised resolutions and refresh rates; actual performance depends on device capabilities and any intermediate adapters. For applications demanding active signal boosting over very long runs beyond 3 m or where specific certified active cables are required, this passive cable may not provide reliable results.

Key specifications

• Cable length: 3 m
• Connector type: DisplayPort male to DisplayPort male
• DisplayPort version: 1.4
• Maximum bandwidth: up to 32.4 Gbps (DisplayPort 1.4 features)
• Supported resolutions/refresh rates: up to 8K @ 60 Hz (with DSC), 4K @ up to 144 Hz (depending on source/display), Full HD @ up to 240 Hz
• Compression support: Display Stream Compression (DSC)
• Conductor specification: AWG 30
• Outer diameter: approx. 5.3 mm
• Colour: Black
• Weight: approx. 0.109 kg

How to use

Connect one DisplayPort male connector to the source device (graphics card, laptop docking station or AV player) and the other to the monitor or DisplayPort-compatible display. Ensure both devices are set to use the desired resolution and refresh rate in the system or monitor settings. If you plan to use high-resolution modes (8K@60Hz or 4K@120Hz), verify that the source, cable and display all support the chosen mode and enable DSC or HDR settings on compatible devices if required. Route the cable to avoid sharp bends and mechanical strain; the 3 m length allows more flexible placement of devices.

What to consider before purchase

• Verify that both your source device and display support DisplayPort 1.4 features and the target resolution/refresh rate.
• Consider whether a passive 3 m cable meets your run length needs; for longer distances an active cable or signal booster may be required.
• Check display settings for DSC and HDR if you intend to use 8K or very high refresh rates.
• Confirm mechanical routing space and whether the cable diameter and flexibility fit your installation.

Recommendations

For best results, use the SAVIO CL-206 with compatible DisplayPort 1.4 sources and displays, enable DSC when required for 8K modes, and avoid tight bends near the connectors. When using high refresh rates in gaming or professional work, confirm GPU output settings and monitor input modes to achieve the intended resolution and refresh rate.
