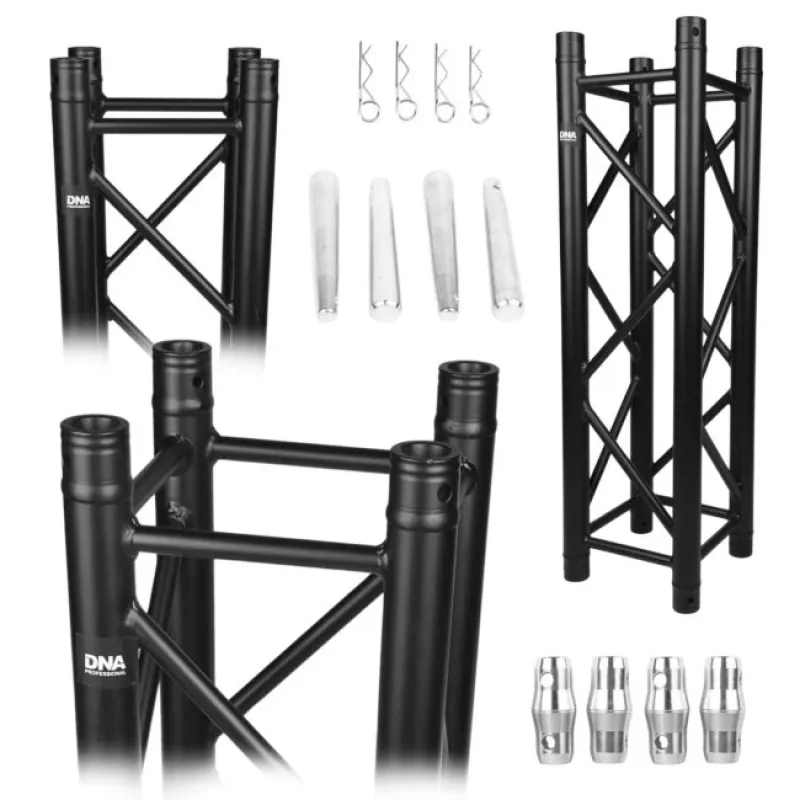

DNA TB4 200 truss-segment vierkant voor podiumverlichting

Professional 2-meter square truss segment engineered for demanding stage lighting, sound reinforcement, and exhibition applications. The DNA TB4 200 delivers exceptional load-bearing capacity and structural rigidity, making it the backbone of reliable rigging systems for concerts, trade shows, and permanent installations. Its 4-point design with 50 mm main tubes and 20 mm diagonals ensures stable, secure support for heavy equipment while remaining lightweight for efficient handling.

Advantages

Crafted from high-strength aluminum alloy EN AW-6082 T6, this truss combines durability with a low weight of only 10.5 kg per segment. The conical coupler connection system allows rapid assembly and disassembly without tools, reducing setup time and labor costs. The natural aluminum finish resists corrosion and blends seamlessly with any stage design. Fully compatible with other DNA TB4 series trusses and industry-standard systems, it offers flexible configuration for any venue.

Suitable for

• Concert and theater lighting rigs
• Line array and speaker suspension
• Exhibition booth frameworks
• Event staging and temporary structures
• Permanent installations in clubs, churches, and auditoriums

Key specifications

• Truss type: 4-point square truss
• Length: 200 cm (2 m)
• Outer dimensions: 290 x 290 mm
• Main tube: 50 mm diameter, 2 mm wall thickness
• Diagonal tube: 20 mm diameter, 2 mm wall thickness
• Material: EN AW-6082 T6 aluminum alloy
• Connection: conical couplers with pins and safety clips
• Weight: approx. 10.5 kg per segment

Recommendations

For optimal performance, pair with DNA TB4 series accessories and ensure proper load calculations per manufacturer guidelines. Suitable for both mobile and permanent installations.
