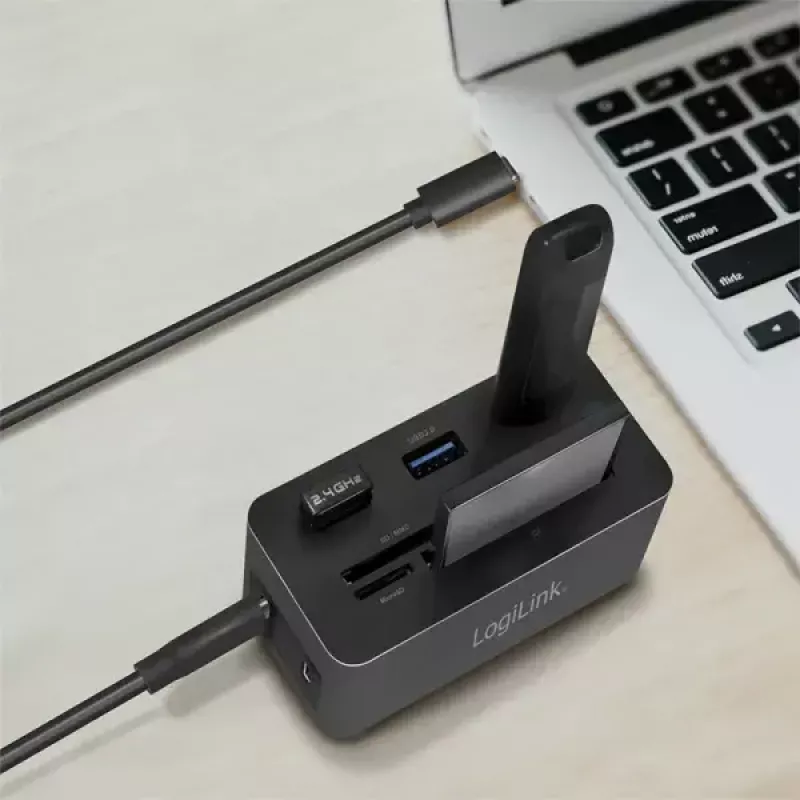

Dockingstation LogiLink UA0370

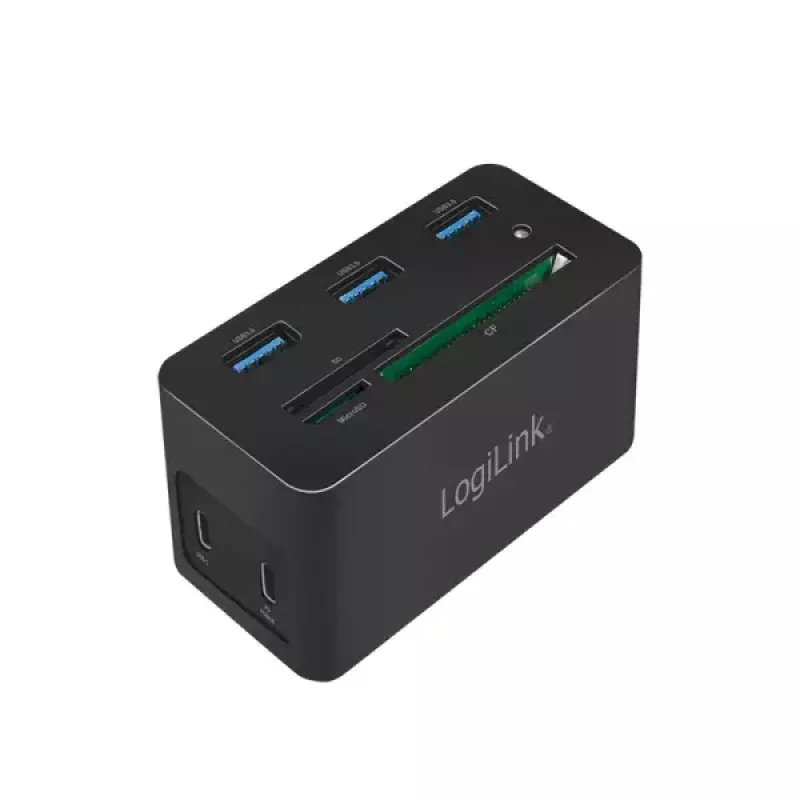

The LogiLink UA0370 is a compact USB 3.2 (Gen 1) Type-C docking station that expands a laptop or USB-C device with up to 10 ports over a single cable. It supports data transfer rates up to 5 Gbit/s, a single HDMI output with Ultra‑HD 4K (3840x2160) resolution, Gigabit Ethernet (10/100/1000 Mbit/s) and USB Power Delivery charging up to 60 W. The mini black housing includes card reader support for CF, SD and MicroSD and is designed for desktop or mobile workspaces.

Advantages

The docking station provides a straightforward way to add multiple peripherals using one USB-C connection, combining fast data transfer, video output and wired network access. Integrated USB Power Delivery keeps the connected laptop charged while powering attached devices. Its small footprint and lightweight design make it easy to carry and place on limited desk space.

Suitable for

• Expanding connectivity for laptops with a USB-C port
• Connecting an external monitor or projector at up to 4K resolution
• Using wired Gigabit Ethernet where Wi‑Fi is not available or reliable
• Attaching multiple USB-A peripherals such as keyboard, mouse and external drives
• Reading SD, MicroSD and CF memory cards

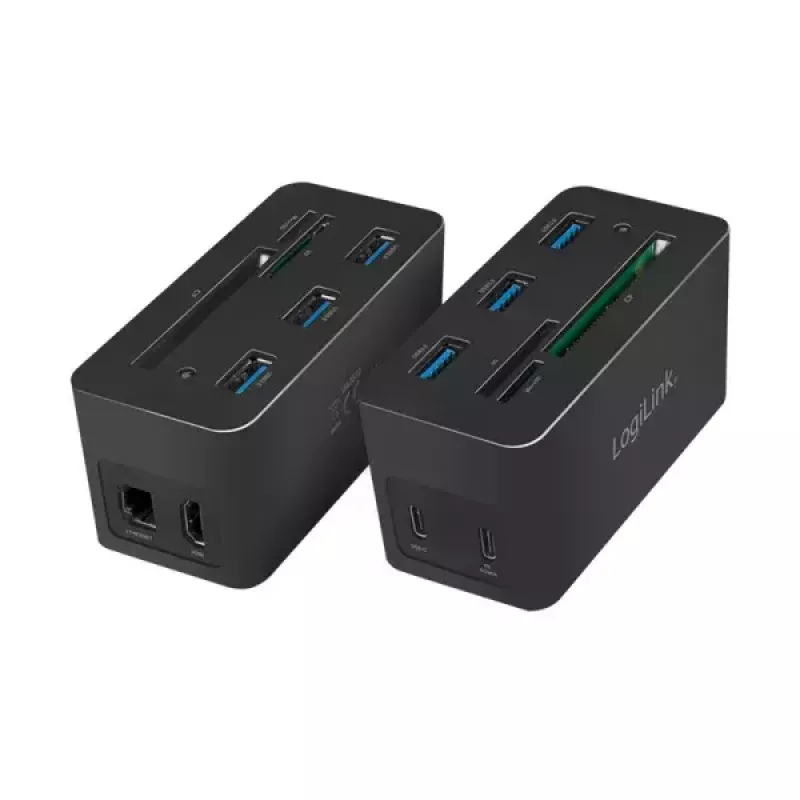

Key specifications

• Interface: USB 3.2 Gen 1 (Type-C host)
• Data transfer rate: up to 5 Gbit/s
• Power Delivery: up to 60 W via USB-C PD port
• Video output: 1 × HDMI, up to 3840×2160 (4K UHD)
• USB ports: 3 × USB 3.2 Gen 1 Type-A
• Ethernet: 1 × RJ45 Gigabit (10/100/1000 Mbit/s)
• Memory card support: CF, SD, MicroSD
• Colour: Black; Weight: 0.181 kg; Dimensions (W×D×H): 46×41×86 mm

How to use

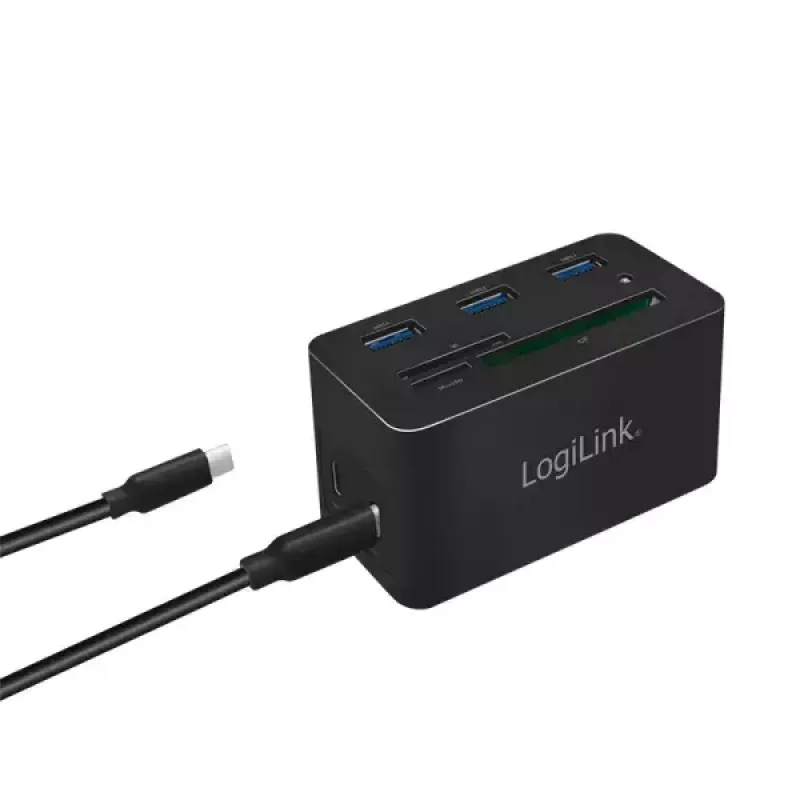

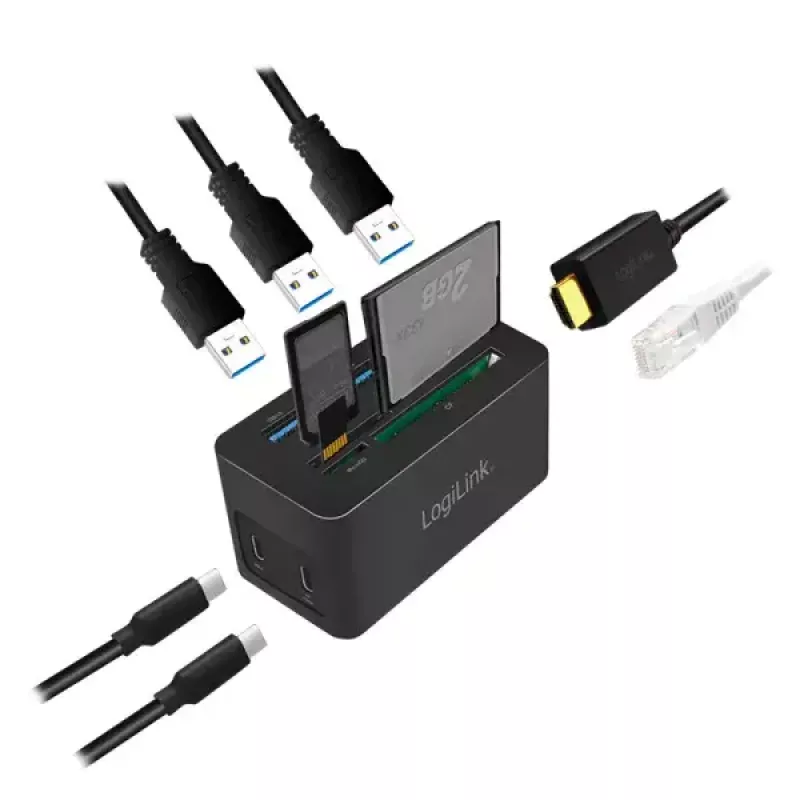

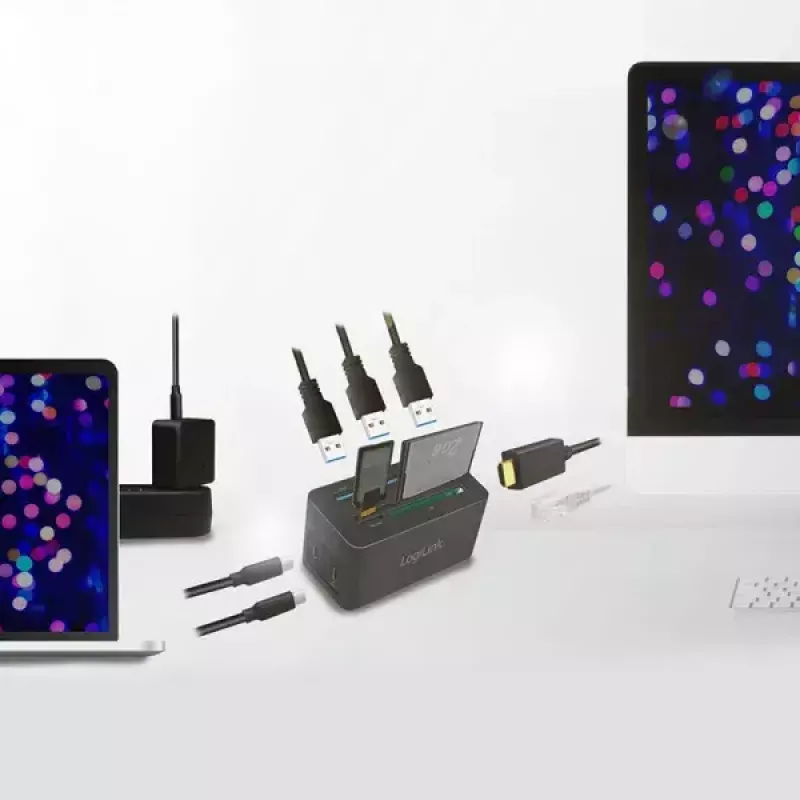

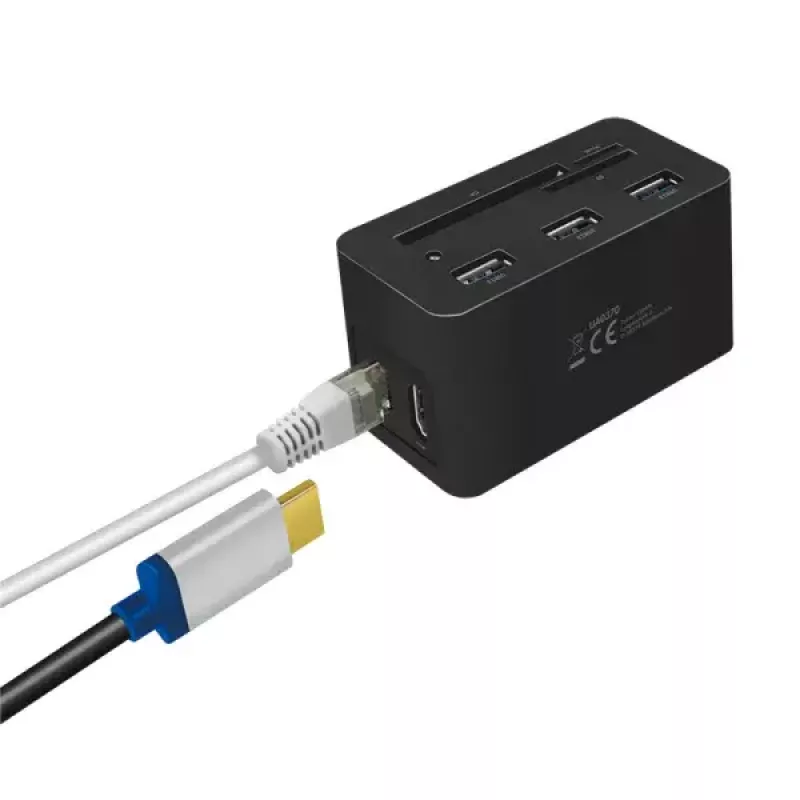

Connect the UA0370 to your computer's USB-C port using the integrated cable. If your laptop supports USB Power Delivery, connect its power adapter to the docking station's PD port to enable charging up to 60 W while using the dock. Attach an HDMI cable to the dock and your external monitor or projector to enable video output; select the appropriate display mode in your operating system. Plug USB-A devices into the available ports and insert memory cards into the corresponding slots to access files. For wired network access, connect an Ethernet cable to the RJ45 port.

Recommendations

Use a USB-C host port that supports data and video (DisplayPort Alt Mode) to ensure full functionality. For 4K output, verify that both the host and the display device support the desired resolution and refresh rate. Avoid overloading the dock with high-power peripherals if your host power source provides less than 60 W.
