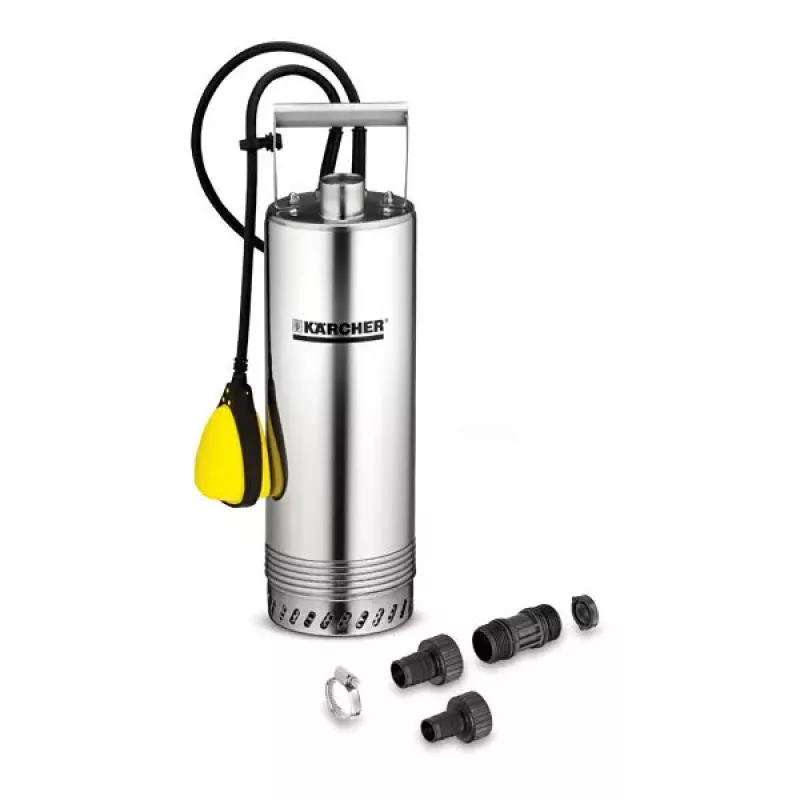

Dompelpomp Kärcher BP 2

The Kärcher BP 2 immersion pressure pump is designed for garden water supply using alternative sources such as rainwater, well water or groundwater. It helps reduce the consumption of drinking water by delivering non-potable sources for irrigation. The pump features a stainless steel casing, threaded connections, a carrying handle and an integrated check valve for reliable operation.

Advantages

The stainless steel pump casing, threaded connections and carrying handle ensure long-term robustness. An integrated pre-filter protects the pump from coarse particles. A float switch with adjustable switching height prevents dry running by turning the pump on and off according to the water level. A hose connection set for both 3/4" and 1" hoses is included for simple installation.

Suitable for

• Irrigation of garden beds and lawns using rainwater or well water
• Water supply for garden hoses and sprinklers
• Use in wells or tanks where a submersible pump is required

Key specifications

• Brand: Kärcher
• Model: BP 2 (MPN 1.645-420.0)
• Power: 800 W
• Maximum flow rate: 5700 l/h
• Maximum pressure: 3.2 bar
• Maximum delivery head: 32 m
• Weight: 10 kg
• Cable length: 10 m
• Integrated pre-filter and check valve
• Float switch with adjustable switching height
• Includes hose connection set for 3/4" and 1" hoses

How to use

Lower the Kärcher BP 2 pump into the water source and secure it with the carrying handle or an attached rope if inserting into a well shaft. Connect the hose using the supplied connection set and set the desired switching height on the float switch. Plug in the pump and check that the pre-filter is free of debris. The float switch will start and stop the pump automatically according to the water level to prevent dry running.

Recommendations

Use the BP 2 pump only with clean non-potable water sources for garden irrigation. Regularly inspect and clean the pre-filter and hose connections to maintain performance. Do not operate the pump without sufficient water level and avoid abrasive particles to prolong service life.
