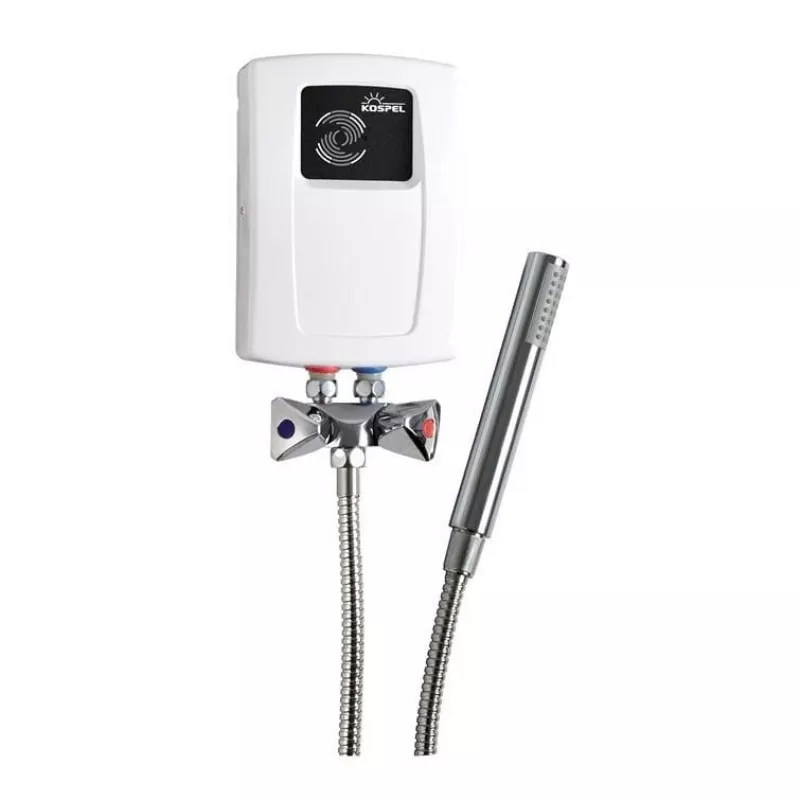

Doorstroomverwarmer Kospel EPS2.P-5.5 kW

The Kospel EPS2.P-5.5 kW is a high-quality instantaneous (tankless) water heater designed for single-point use, such as under a kitchen sink or washbasin. With a power output of 5.5 kW and single-phase 230 V operation, it provides hot water on demand without the need for a storage tank. Its compact, wall-mounted design and IP25 protection rating make it suitable for installation in damp environments.

Advantages

Instantaneous heating eliminates standby energy losses, saving electricity. The hydraulic control automatically adjusts power based on water flow, ensuring consistent temperature. Bare wire heating elements provide efficient heat transfer and long service life. The unit is lightweight and easy to install with a standard G 1/2" water connection.

Suitable for

• Kitchen sinks
• Washbasins
• Small handwashing stations
• Point-of-use hot water in bathrooms or utility rooms

Key specifications

• Power: 5.5 kW
• Voltage: 230 V, Single-phase
• Rated Current: 23.9 A
• Water Connection: G 1/2"
• Min./Max. Water Pressure: 0.1 MPa (1 bar) / 0.6 MPa (6 bar)
• Nominal Flow Rate (ΔT=30°C): 2.6 L/min
• Protection Class: IP25
• Energy Efficiency Class: A
• Housing Material: ABS Plastic
• Dimensions (HxWxD): 290 x 190 x 110 mm
• Weight: 1.5 kg

Recommendations

For optimal performance, ensure the electrical supply is protected by a suitable circuit breaker and that the water pressure is within the specified range. Professional installation is recommended.
