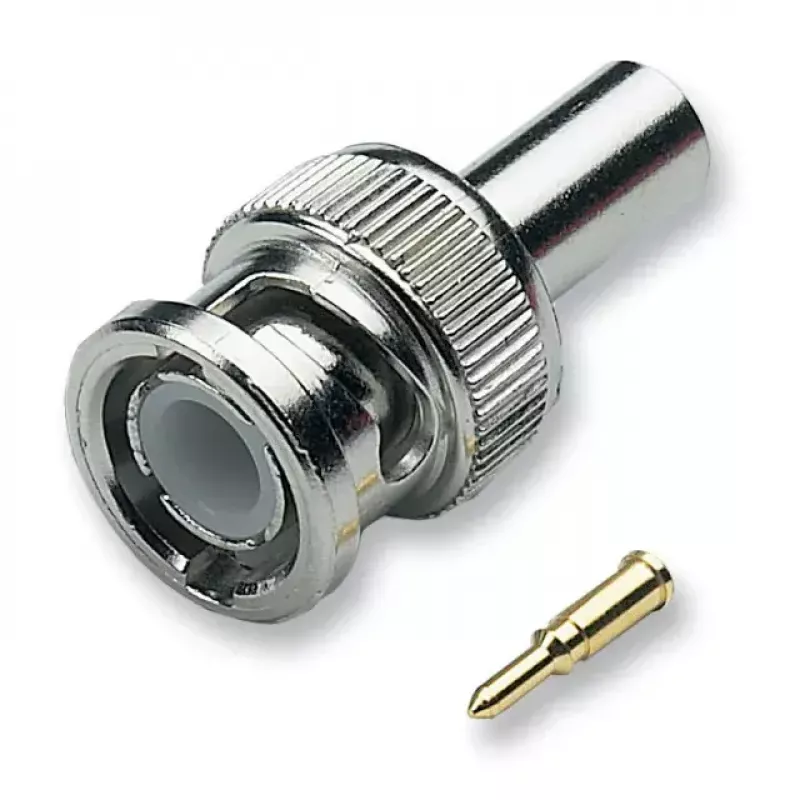

Draadconnector BNC EFB Elektronik 52500.1

The EFB Elektronik 52500.1 wire connector is a straight BNC crimp plug designed for reliable signal transmission. Constructed from brass with a nickel finish, this single-pack connector provides a durable interface for coaxial cables in a variety of installations where a BNC connection is required.

Advantages

The nickel-plated brass construction offers corrosion resistance and mechanical strength while maintaining good conductivity. The straight crimp design simplifies cable termination and creates a secure, low-loss connection suitable for analog and digital signals. Supplied individually, the connector is convenient for repair, replacement, or small-scale installations.

Suitable for

• Audio/video signal connections (CCTV, broadcast equipment)
• Test and measurement equipment
• Radio frequency and networking applications using coaxial cable
• Repair and DIY cable assembly

Key specifications

• Type: BNC crimp plug, straight
• Material: Brass with nickel plating
• Pack quantity: 1 piece
• Brand: EFB Elektronik
• Manufacturer part number (MPN): 52500.1
• EAN: 4049759039004
• Product colour: Nickel

How to use

Prepare the coaxial cable by stripping the outer jacket, shielding, and dielectric to the appropriate lengths for the connector. Insert the cable into the BNC crimp plug so that the centre conductor seats in the pin and the shielding contacts the body. Use the correct-size crimp ferrule and a compatible crimping tool to compress the ferrule evenly, ensuring a firm mechanical and electrical connection. Verify continuity and signal integrity after assembly.

Recommendations

For consistent results, use a dedicated BNC crimping tool and the recommended ferrule size for your cable type. Avoid over-crimping to prevent damage to the connector or cable; inspect the finished connection for proper seating and mechanical stability before use.
