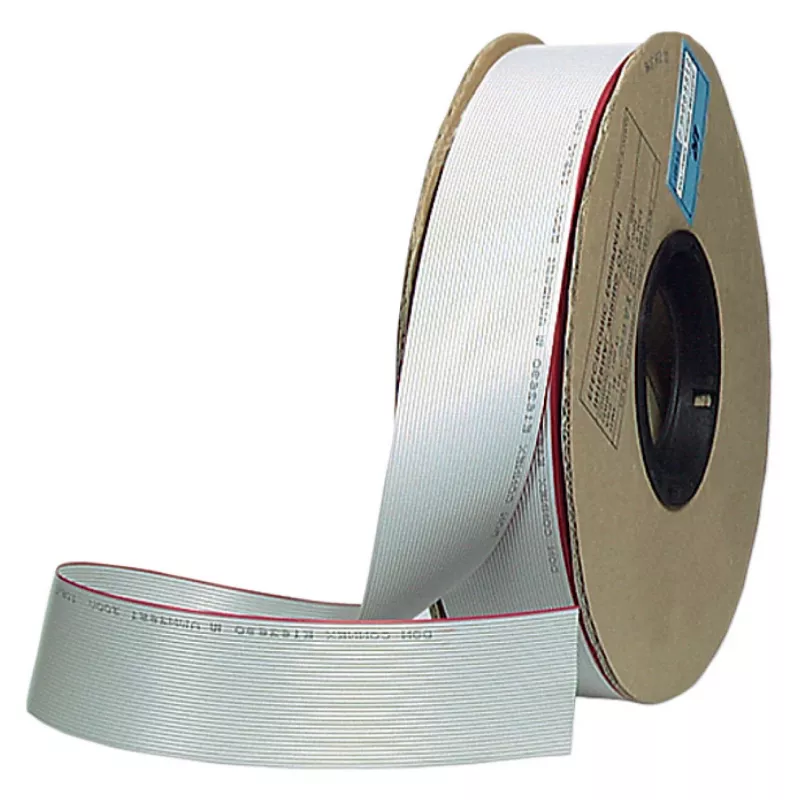

Draadspoel EFB Elektronik AWG 28-44, rastermaat 1,0 mm, 30,5 m (92944.30R)

This EFB Elektronik wire reel contains 30.5 meters of fine-gauge conductor arranged on a 1.0 mm pitch carrier, designed for use where precise wire spacing and compact routing are required. The product provides a continuous ribbon of AWG 28–44 compatible wire for prototyping, connector assembly, and signal wiring. Its format simplifies handling of multiple conductors in parallel and supports neat, repeatable wiring on PCBs, in harnesses, and during repair work.

Advantages

The continuous reel format reduces handling time and maintains consistent conductor spacing for reliable insertion into headers and connectors. The 1.0 mm pitch carrier keeps wires aligned for easier routing and termination. Fine-gauge AWG 28–44 conductors are suitable for low-current signal paths and compact assemblies, enabling tidy harnesses and precise PCB ribbon connections. The long 30.5 m length minimises reel changes during batch work or extended projects.

Suitable for

Key specifications

How to use

Cut the required length of ribbon from the reel and separate or fan out individual conductors as needed for insertion into headers or connectors. If necessary, strip insulation from wire ends carefully before soldering or crimping. When inserting into 1.0 mm pitch connectors, ensure alignment of the carrier to maintain spacing and avoid conductor stress. For harness assembly, route the ribbon along the harness path and secure with ties or adhesive spots before terminating ends.

Recommendations

Use appropriate wire strippers for fine-gauge conductors to avoid nicking. For signal integrity, keep runs short and avoid routing alongside high-current wiring. Store the reel in a dry, dust-free area and avoid sharp bends that could compromise conductor insulation.
