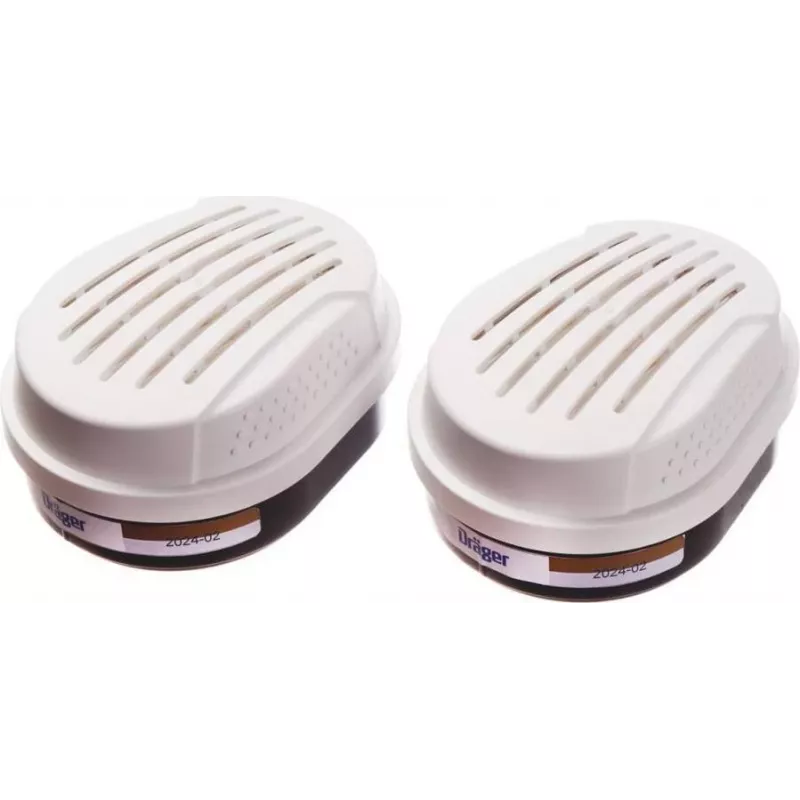

Dräger X-plore bajonet combinatiefilter A1B1E1K1 Hg P3 RD (2-pack) 6738817

The Dräger X-plore Bayonet Combination Filter A1B1E1K1 Hg P3 RD stands out with its comprehensive protection against organic, inorganic, acid, ammonia, and mercury vapours, plus high-efficiency particulate filtration. Unlike single-purpose filters, this twin pack offers reusable, all-in-one defence for demanding work environments.

Highlights

• Combination gas and particulate filter with A1B1E1K1 Hg P3 protection
• Reusable (RD) design for extended service life
• Bayonet connection for quick, secure attachment to Dräger X-plore masks
• Pack of 2 filters

In daily use

Designed for use with Dräger X-plore 3300, 3500, and 5500 series half and full face masks, these filters provide reliable protection against a wide range of gases, vapours, and particulates. The P3 class ensures 99.95% minimum efficiency against solid and liquid particles, while the gas protection classes cover organic, inorganic, acid, ammonia, and mercury vapours at low concentrations up to 1000 ppm. The colour-coded rings (brown, grey, yellow, green, red, white) allow for quick identification of filter type.

Full specifications

• Filter Type: Combination Filter
• Gas Protection Class: A1B1E1K1
• Particulate Protection Class: P3
• Mercury Protection: Yes (Hg)
• Reusability: Reusable (RD)
• Connection System: Dräger X-plore Bayonet TwinFilter
• Compatibility: Dräger X-plore 3300, 3500, 5500 series half and full face masks
• Standard Compliance (Gas/Vapour): EN 14387:2004 + A1:2008
• Standard Compliance (Particulate): EN 143:2000 + A1:2006
• Protection Against (Gases/Vapours): Organic, Inorganic, Acid, Ammonia, Mercury Vapours
• Protection Against (Particulates): Solid & Liquid Particles, Aerosols
• Gas Capacity (A1, B1, E1, K1): Low (up to 1000 ppm or 0.1% by volume)
• Particulate Efficiency (P3): High (99.95% minimum)
• Quantity per Pack: 2 Filters
• Color Coding: Brown, Grey, Yellow, Green, Red, White
• Shelf Life: 6 years
• CE Marking: Yes

Final note

These filters are intended for occupational use and should be selected based on a thorough hazard assessment. Always follow manufacturer guidelines for filter replacement and mask compatibility.
