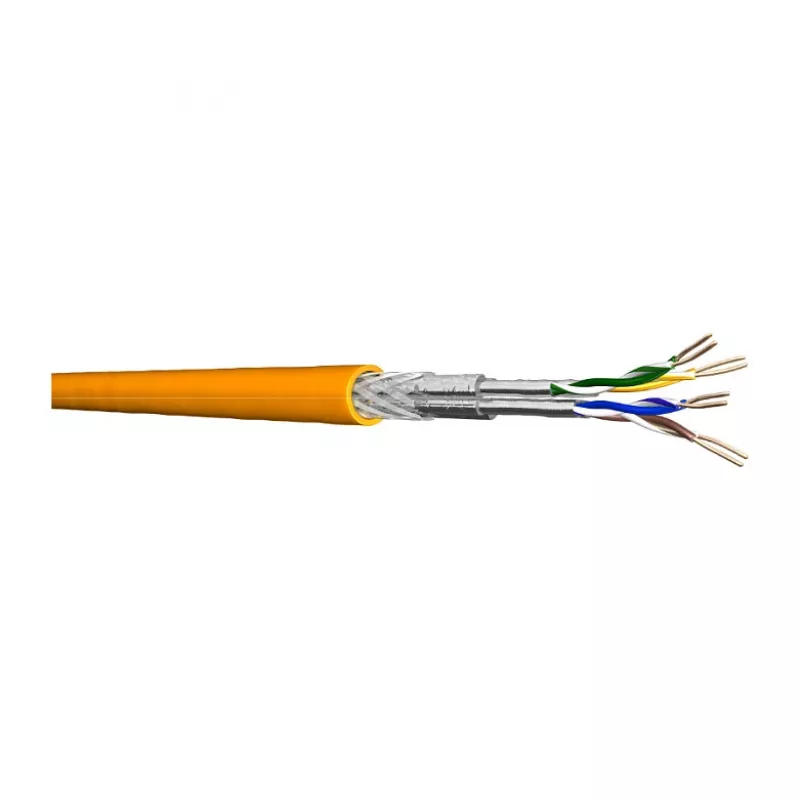

DRAKA UC1500 MM SS/23 4P 6F CAT7 FRNC-C 1000 m Tr. 4x2 AWG23 datakabel

High-speed data transmission in industrial and commercial environments demands cabling that can handle 10 Gigabit Ethernet without interference. The DRAKA UC1500 MM SS/23 is a CAT7 S/FTP cable engineered for exactly that—reliable, high-frequency performance over long distances. With a 600 MHz bandwidth and 1000-meter reel, it's the backbone for structured cabling systems where uptime and signal integrity are non-negotiable.

Who is it for

Network installers, data center technicians, and facility managers who need a robust, flame-retardant cable for permanent installation. It suits office LANs, industrial networks, and backbone links where future-proofing and safety are priorities.

Main features

• CAT7 performance: supports 10GBASE-T up to 100 meters, with 600 MHz bandwidth.
• S/FTP shielding: each pair is foiled, plus an overall braid screen, minimizing alien crosstalk and EMI.
• FRNC-C jacket: flame retardant, non-corrosive, low smoke—safer for buildings and people.
• Solid bare copper conductors, AWG23, 4 pairs (8 conductors), 100 Ohm impedance.
• Supplied on a 1000-meter reel for efficient pulls and minimal waste.

Specifications

• Cable type: Data cable, CAT7, S/FTP
• Conductor: Bare copper, solid, AWG23
• Pairs: 4 (8 conductors)
• Impedance: 100 Ohm
• Max frequency: 600 MHz
• Data rate: 10 Gigabit Ethernet
• Jacket: FRNC-C
• Outer diameter: approx. 7.5 mm
• Operating temperature: -20°C to +60°C
• Installation temperature: 0°C to +50°C
• Length: 1000 m
• Packaging: Cable drum / reel

Tips

For best performance, maintain the twist rate and avoid sharp bends. Use shielded RJ45 connectors and grounded patch panels to preserve the shielding integrity. When pulling, do not exceed the maximum tensile load to prevent conductor damage.
