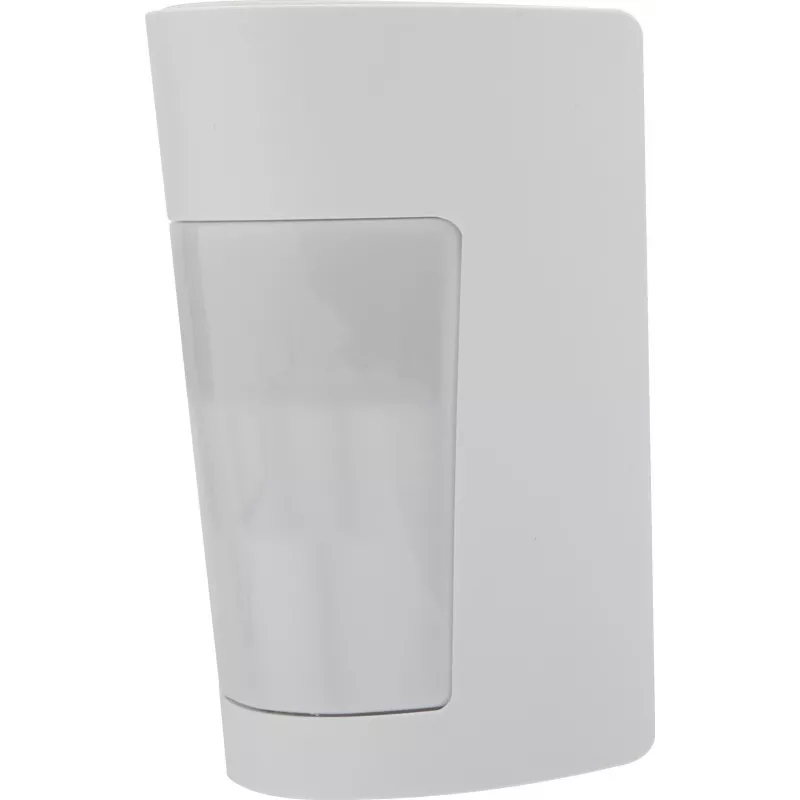

DSC PGP8914 PowerG PIR-bewegingsmelder met dierimmuniteit

The DSC PGP8914 is a high-performance wireless PIR motion detector designed for indoor security applications. Utilizing PowerG technology, it offers reliable, encrypted communication with DSC security systems. With a detection range of 12 meters and a 90-degree angle, it provides comprehensive coverage while maintaining pet immunity up to 38 kg. Advanced True Motion Recognition™ ensures accurate detection while minimizing false alarms.

Advantages

Pet immunity up to 38 kg reduces false triggers from pets. PowerG wireless technology ensures robust, encrypted communication with a range of up to 2000 meters line of sight. Long battery life of up to 8 years from a single CR123A lithium battery. Front and back tamper protection enhances security. Advanced algorithms provide false alarm immunity.

Suitable for

• Residential and commercial indoor security systems
• Integration with DSC PowerG security panels (PowerSeries Neo, Iotega, Qolsys IQ Panel 2+)
• Areas requiring pet-friendly motion detection

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Wireless Technology: PowerG (Frequency Hopping Spread Spectrum)
• Operating Frequency: 868 MHz
• Detection Range: 12 meters (40 feet)
• Detection Angle: 90 degrees
• Pet Immunity: Up to 38 kg (85 lbs)
• Power Source: 1x CR123A Lithium Battery
• Battery Life: Up to 8 years
• Installation Environment: Indoor
• Tamper Protection: Front and Back Cover Tamper
• Encryption: 128-bit AES Encryption
• Temperature Compensation: Advanced True Motion Recognition™
• Mounting Height: 1.8 - 2.4 meters (6 - 8 feet)
• Operating Temperature: -10°C to 55°C (14°F to 131°F)
• Wireless Range: Up to 2000m (6500ft) line of sight
• LED Indicator: Alarm, Tamper, Low Battery, Walk Test

Recommendations

For optimal performance, mount at the recommended height and avoid direct sunlight or heat sources. Ensure compatibility with your DSC PowerG panel.
