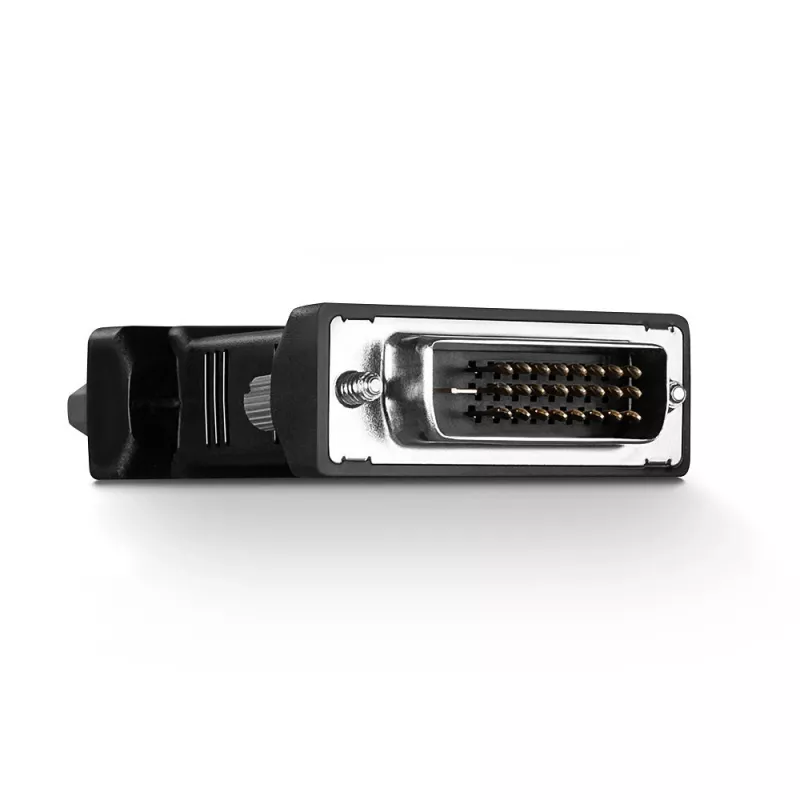

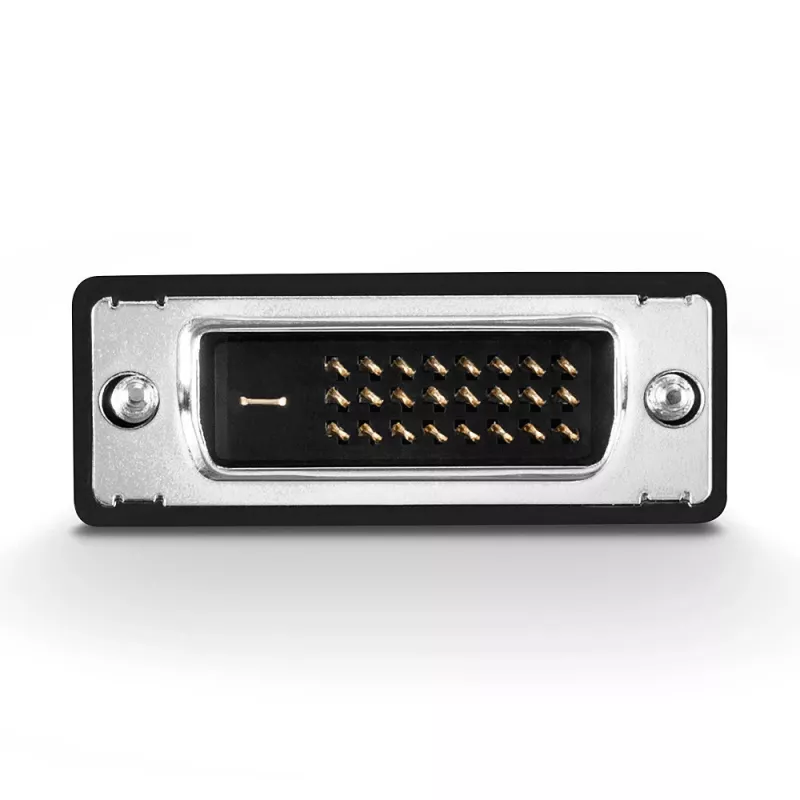

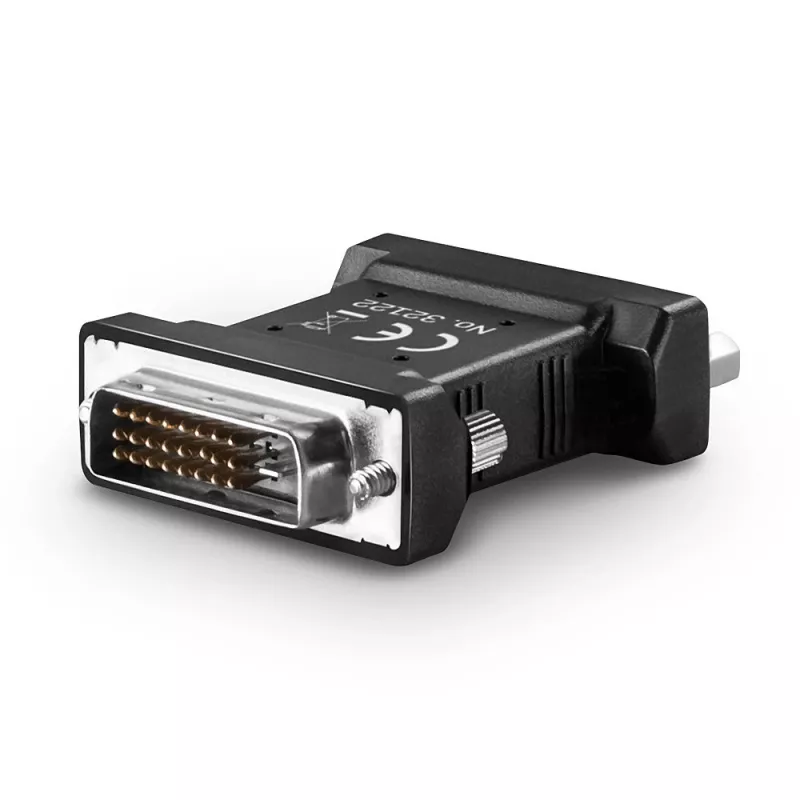

DVI EDID-emulator Lindy 32122

The Lindy DVI EDID Emulator provides stable EDID information to prevent compatibility issues between a source device and display. EDID (Extended Display Identification Data) describes a display's capabilities such as supported resolutions, refresh rates and screen characteristics, and without it a source may not output a correct video signal. This emulator continuously supplies EDID data to maintain proper communication between graphics cards, AV/KVM extenders, switches and splitters, and can act as a virtual monitor to keep a PC or server graphics card active for remote access.

Advantages

The emulator supports resolutions up to 2560x1600@60Hz and is suitable for use with legacy PCs and displays. It prevents display dropouts and EDID-related errors when using extenders, switches or splitters. When combined with the Lindy EDID recorder (32120) the device can provide cloned EDID information to the source. The unit also includes pre-set EDID data for common resolution and timing combinations so it can be used without cloning a specific monitor.

Key specifications

• Maximum supported resolution: 2560x1600 @ 60Hz
• Interface: DVI
• Function: EDID emulation and virtual monitor
• Compatibility: AV/KVM extenders, switches, splitters, legacy PCs and displays
• Works with Lindy EDID recorder (model 32120) for EDID cloning
• Includes pre-set EDID profiles for common resolutions/timings

How to use

Connect the Lindy DVI EDID Emulator between the source device and the display, or attach it directly to the graphics card to act as a virtual monitor. If cloning is required, use the Lindy EDID recorder (32120) to copy EDID data from the target display to the emulator. Alternatively, select one of the built-in EDID profiles for standard resolution/timing combinations. Ensure cables and connectors are secure and power is applied to the connected devices for stable EDID transmission.

Recommendations

Use the emulator when deploying AV/KVM extenders, switches or splitters, or when a remote-access system requires the graphics card to remain active. For exact monitor duplication, perform EDID cloning with the Lindy EDID recorder (32120); otherwise use the built-in profiles for common display setups.
