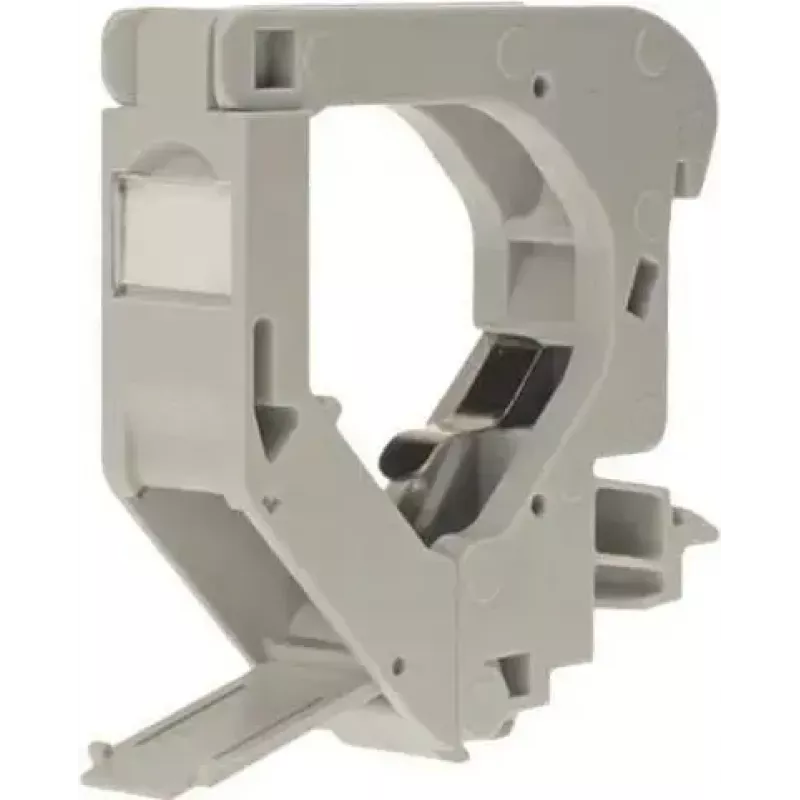

DIN-rail modulehouder ZVK gmbh ECO Module Carrier CKVHECOMOD voor montage van elektronische modules

The ECO Module Carrier CKVHECOMOD by zvk gmbh is a DIN rail mounting carrier designed to secure and organize electronic modules in control panels and electrical cabinets. It provides standardized DIN-rail compatibility for straightforward installation, stable fixation and compact arrangement of components used in industrial automation and electrical distribution. The carrier is intended to streamline module layout and support maintenance access while fitting common DIN rail systems.

Advantages

The carrier offers a reliable platform for mounting electronic modules with consistent rail compatibility, reducing installation time and helping maintain tidy layouts inside control cabinets. Its compact form factor supports space-efficient assembly, and the design enables secure fixation of modules to withstand typical industrial conditions. The product is made to integrate with standard DIN-rail setups, facilitating replacement or reconfiguration of modules without major modifications to the enclosure.

Suitable for

• Mounting electronic modules in control panels
• Organizing components in electrical distribution cabinets
• Industrial automation equipment installations
• Prototyping and test racks where DIN-rail mounting is required

Key specifications

• Form factor: DIN-rail compatible carrier
• Primary function: Secure mounting and organization of electronic modules
• Typical application area: Control panels, electrical cabinets, automation systems
• Installation: Snap-on or clip mounting to standard DIN rails
• Design: Compact profile suitable for dense module arrangements

How to use

Position the ECO Module Carrier on the standard DIN rail and engage it using the carrier's rail fastening feature until it snaps or locks into place. Place the electronic module(s) onto the carrier according to the module manufacturer's mounting instructions and secure them to the carrier using the provided or compatible fixing method. Ensure that modules are aligned and that any required clearances for ventilation or wiring are observed. For removal or reconfiguration, release the carrier from the DIN rail following the reverse of the installation steps.

Recommendations

Confirm compatibility between the module dimensions and the carrier before installation, follow all relevant electrical and safety standards when working inside control cabinets, and ensure proper grounding and strain relief for connected wiring. Use in environments and applications consistent with the rated conditions of the mounted modules and the DIN-rail system.
