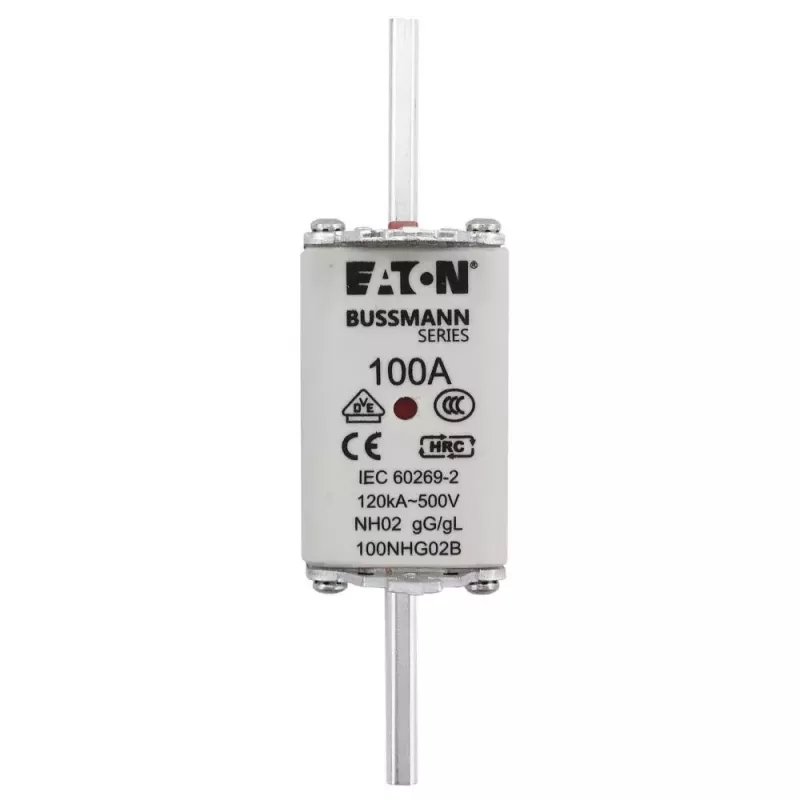

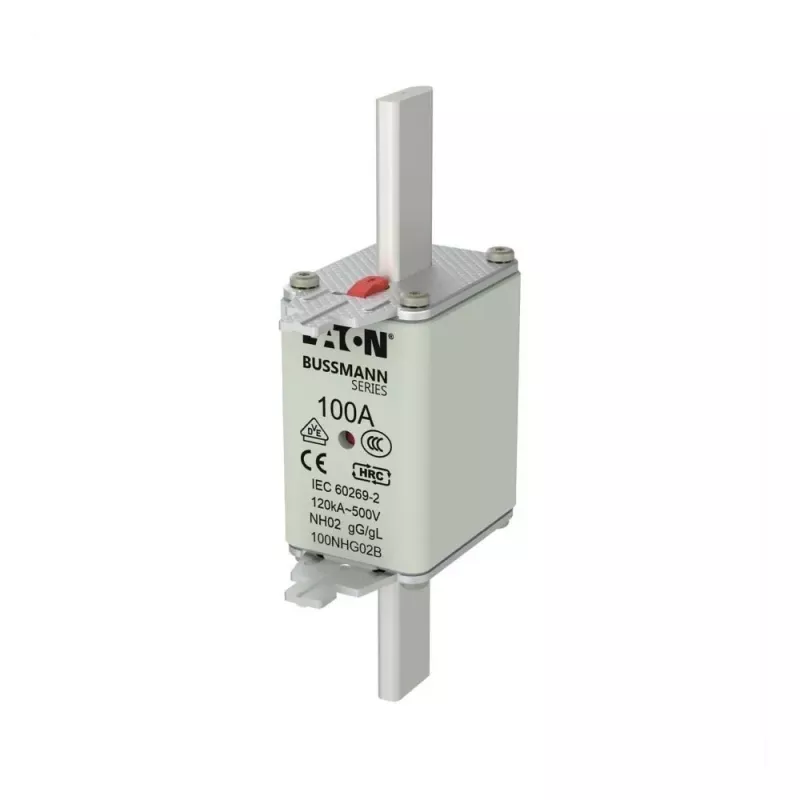

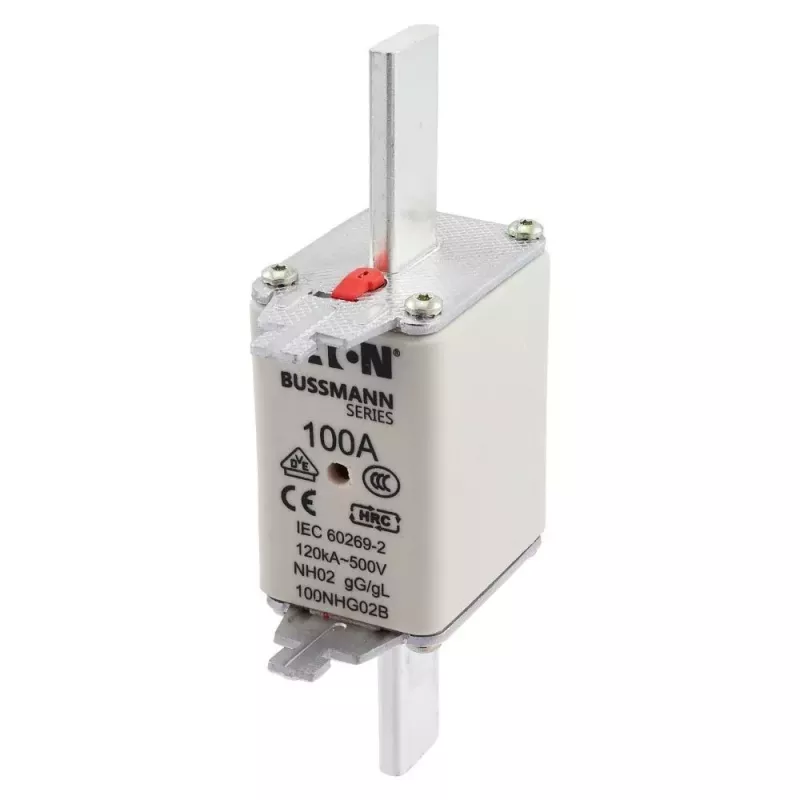

Eaton 100NHG02B NH-zekering D02 100 A 500 V gG met mechanische indicator, 3-pack

With a breaking capacity of 120 kA, the Eaton 100NHG02B NH fuse handles severe short-circuit conditions in industrial power distribution. This D02 size fuse is rated for 100 A at 500 V AC and features a mechanical indicator for quick status checks.

Overview

The Eaton 100NHG02B is a general-purpose (gG) NH fuse designed for overload and short-circuit protection in low-voltage networks. Its blade contact mounting and ceramic body ensure reliable performance in demanding environments.

What stands out

• High breaking capacity of 120 kA for robust protection
• Mechanical fuse indicator for visual status confirmation
• D02 size fits standard NH fuse holders
• Silver-plated copper contacts for low resistance
• Complies with IEC 60269

Technical details

• Fuse type: NH fuse
• Size: D02
• Rated current: 100 A
• Rated voltage: 500 V AC
• Operating class: gG (general purpose)
• Breaking capacity: 120 kA
• Number of poles: 1
• Mounting: Blade contact
• Body material: Ceramic
• Contact material: Silver-plated copper
• Series: NHG
• Pack quantity: 3

Our verdict

A reliable NH fuse for industrial protection, offering high breaking capacity and easy status indication.
