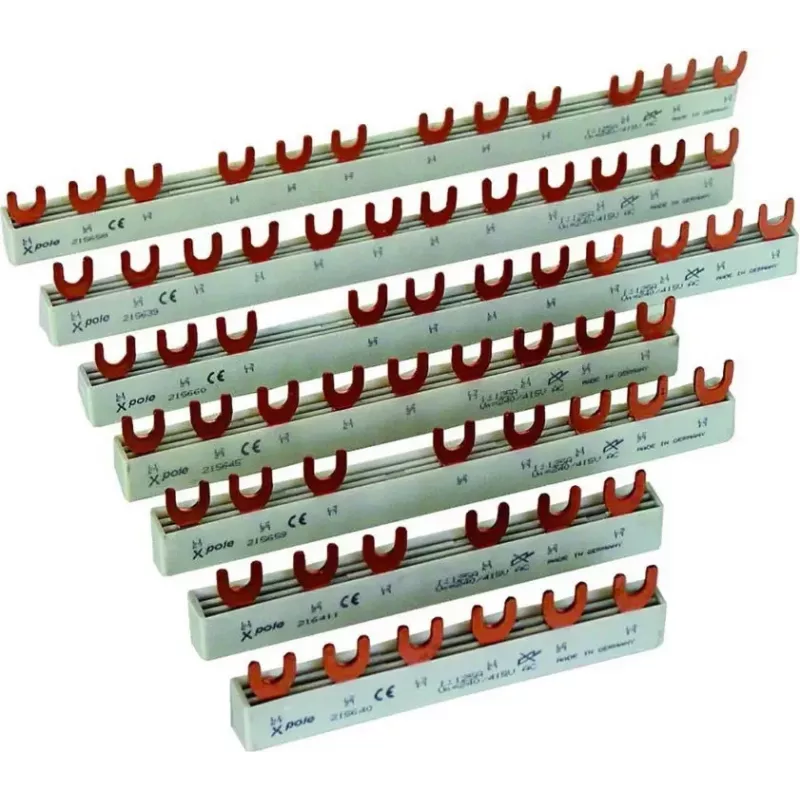

Eaton 215637 combinatie-busbarverbinder 1-polig 500V 63A vork wit

Rated at 500 V AC and 63 A, this 1-pole combination busbar connector from Eaton's xPole series provides a reliable fork connection for modular DIN rail devices.

Overview

The Eaton 215637 is a fully insulated busbar connector designed for linking xPole series circuit breakers, RCDs, and other modular devices. Its fork connection accommodates conductors up to 10 mm², ensuring secure and efficient power distribution in distribution boards.

What stands out

• High 63 A current rating for demanding circuits
• 500 V AC operational voltage for versatile applications
• Fully insulated white housing for safety
• 1-pole design with fork connection for quick installation

Technical details

• Product type: Combination busbar connector
• Number of poles: 1
• Number of modules: 1
• Rated operational voltage (Ue): 500 V AC
• Rated current (In): 63 A
• Conductor cross-section: 10 mm²
• Connection type: Fork
• Insulation: Fully insulated
• Colour: White
• Material: Copper conductor, plastic insulation
• Mounting: For DIN rail modular devices
• Series: xPole

Our verdict

A robust and safe busbar connector for professional electrical installations, offering high current capacity and easy fork connections.
