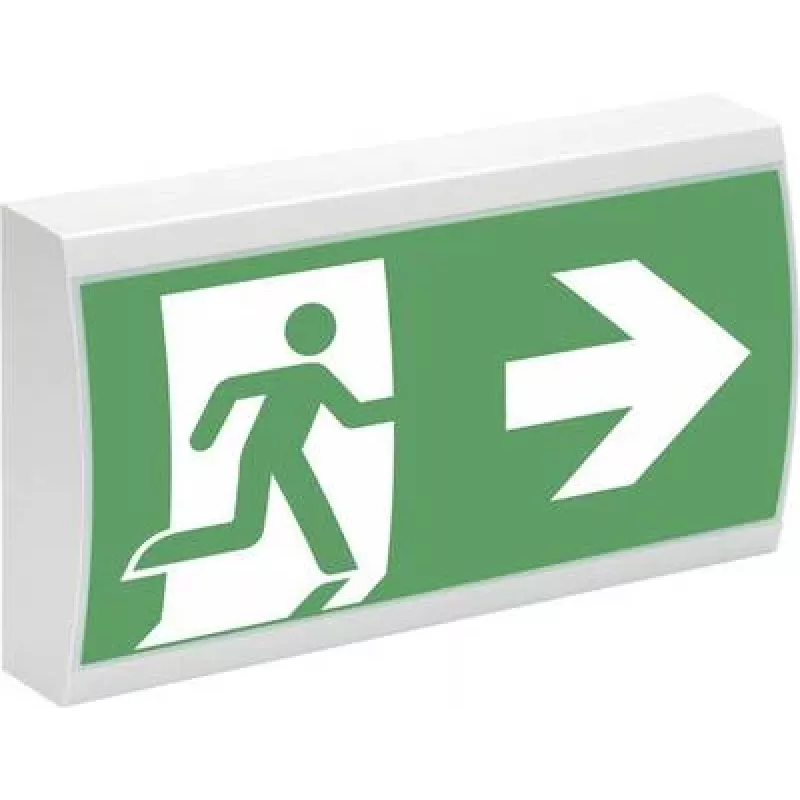

Eaton 40071349399 LED-noodverlichting voor vluchtroutes, plafond-/wandmontage, wit

LED emergency escape route luminaire for ceiling or wall mounting, providing 150 lm emergency light output with a 3-hour duration. The selectable maintained/non-maintained operation and automatic self-test function ensure reliable safety lighting in commercial and industrial buildings.

Advantages

High-efficiency LED light source with low 3.5 W mains power consumption. Quick 24-hour battery charging and robust polycarbonate housing in white (RAL 9003). IP40 protection and IK03 impact resistance for durable indoor use.

Suitable for

• Escape route illumination in offices, corridors, stairwells
• Industrial facilities and warehouses
• Public buildings requiring emergency lighting

Key specifications

• Light source: LED
• Mounting: ceiling, wall
• Operating mode: maintained / non-maintained (selectable)
• Rated voltage: 230 V AC, 50/60 Hz
• Power consumption (mains): 3.5 W
• Luminous flux (emergency): 150 lm
• Emergency operation duration: 3 h
• Battery: Ni-MH, 3.6 V / 1.5 Ah
• Charging time: 24 h
• Protection class: IP40
• Impact resistance: IK03
• Housing material: polycarbonate (PC)
• Housing colour: white (RAL 9003)
• Self-test function: automatic
• Viewing distance: 24 m
• Ambient temperature: 5 °C to 40 °C

Recommendations

Ideal for safety-conscious facility managers seeking a reliable, low-maintenance emergency luminaire with automatic self-testing.
