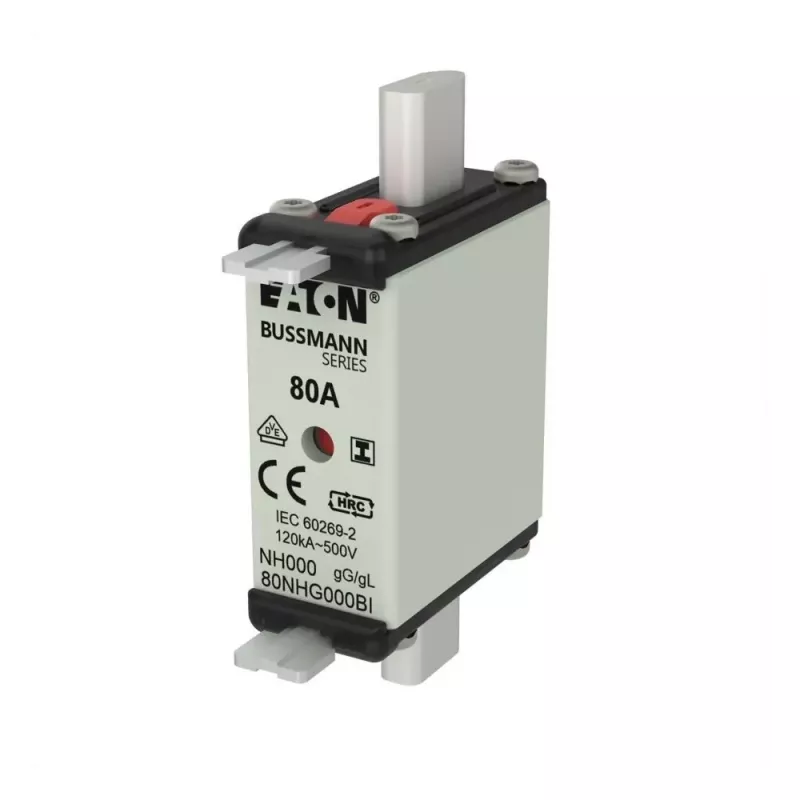

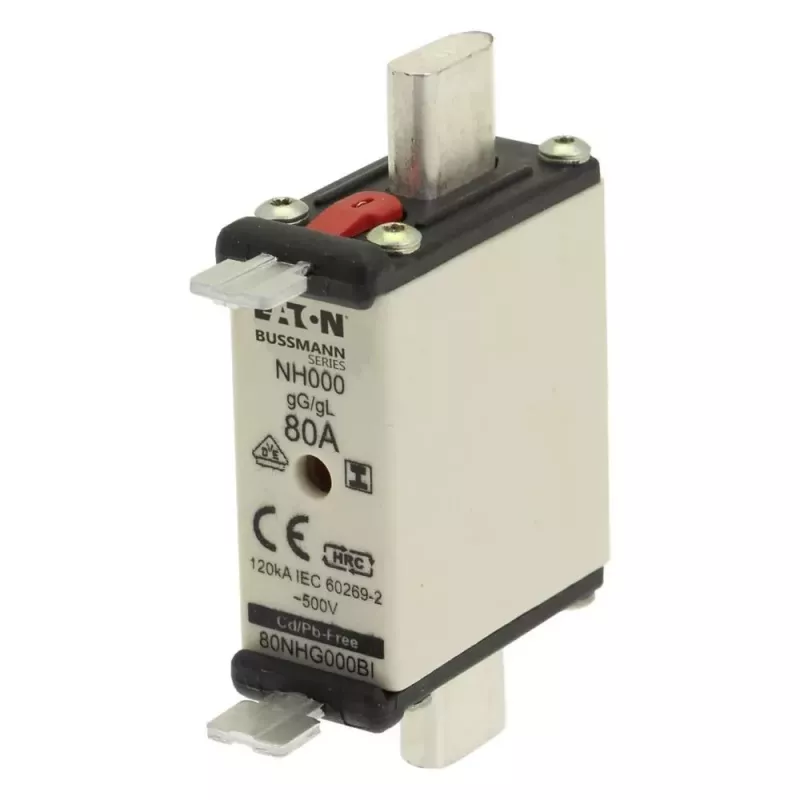

Eaton 80NHG000BI NH-zekeringpatroon 80 A 500 V AC maat 000 met mechanische indicator, 3-pack

NH fuse link with mechanical indicator, rated 80 A and 500 V AC, size 000, operating class gG. Provides reliable protection for cables and lines in industrial applications, with a breaking capacity of 120 kA and a compact blade-type design for standard NH fuse bases.

Advantages

The mechanical top indicator provides clear visual confirmation of fuse status, simplifying maintenance and reducing downtime. The ceramic body and silver-plated copper contacts ensure durability and low contact resistance, while the gG operating class offers full-range protection for general-purpose applications.

Suitable for

• Protection of cables and lines in low-voltage distribution systems
• General industrial applications requiring reliable overcurrent protection
• Use with standard NH fuse bases and disconnectors for size 000

Key specifications

• Fuse type: NH fuse link
• Size: NH000
• Rated current: 80 A
• Rated voltage: 500 V AC
• Operating class: gG
• Breaking capacity: 120 kA
• Indicator: mechanical (top)
• Quantity per pack: 3 pieces
• Standard: IEC 60269-2
• Mounting: blade type contacts
• Body material: ceramic
• Contact material: silver-plated copper
• Frequency: 50/60 Hz
• Power dissipation at rated current: 7.5 W

Recommendations

Ensure compatibility with your fuse holder and verify that the rated voltage and current match your system requirements before installation.
