Eaton 9SX 9SX3000 USV online double conversion 3000VA 2700W rack/tower 2U 120V zwart

The Eaton 9SX 9SX3000 is a high-performance online double conversion UPS designed to provide reliable, clean power for critical equipment. With 3000VA / 2700W capacity, it offers pure sine wave output and automatic voltage regulation, protecting servers, network gear, and industrial systems from power disturbances. Its rack/tower convertible 2U form factor allows flexible installation in data centers or office environments.

Advantages

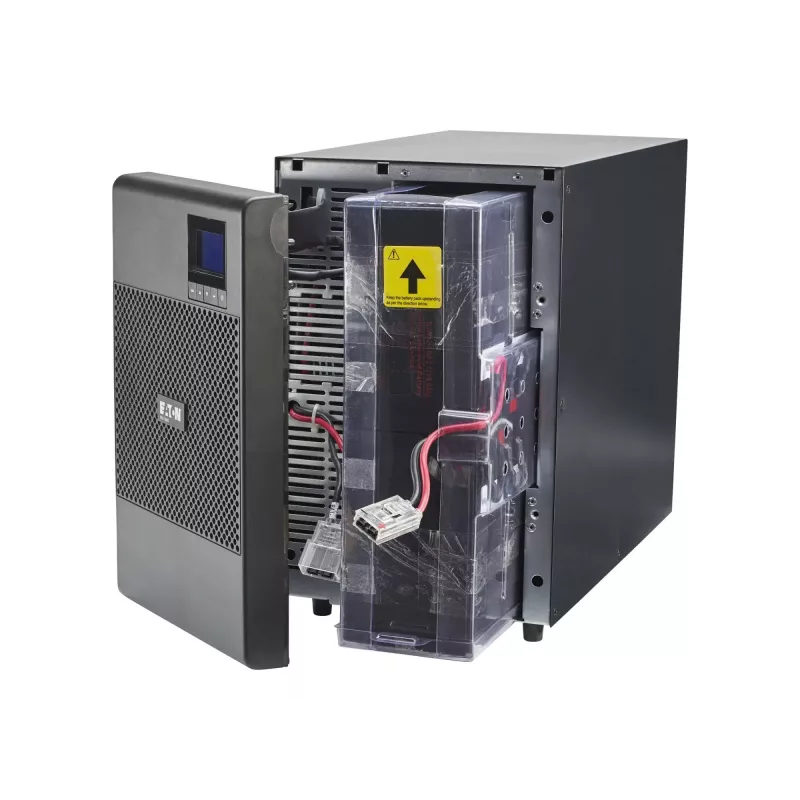

Advanced double conversion topology ensures zero transfer time and complete isolation from input power anomalies. High efficiency up to 95% in online mode and 98% in high-efficiency mode reduces energy costs. Hot-swappable batteries simplify maintenance without downtime. The intuitive LCD display provides real-time status and configuration options.

Suitable for

• Small to medium business servers and storage
• Network switches, routers, and security systems
• Telecommunications equipment
• Industrial control systems and medical devices

Key specifications

• UPS Topology: Online Double Conversion
• Power Capacity: 3000 VA / 2700 W
• Input Voltage: AC 100/110/120/125 V
• Output Voltage: AC 100/110/120/125 V (Configurable)
• Input Connection: NEMA L5-30P
• Output Connections: 4x NEMA 5-20R, 1x NEMA L5-30R
• Form Factor: Rack/Tower Convertible 2U
• Communication: USB, RS-232, Relay, EPO, Expansion Slot
• Battery Type: Sealed Lead Acid, Hot-swappable
• Typical Runtime: 5 min (full load), 15 min (half load)
• Color: Black
• Certifications: UL, cUL, Energy Star

Recommendations

For enhanced remote management, install the Eaton Gigabit Network Card (optional) and use Eaton Intelligent Power Protector software. Ensure proper ventilation and avoid overloading the UPS beyond its rated capacity.
