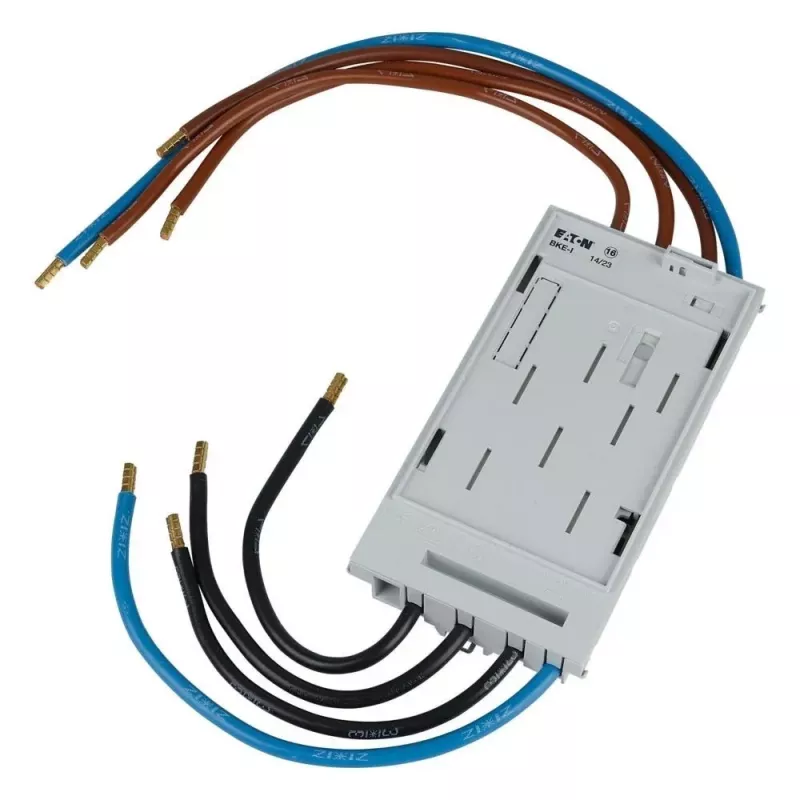

Eaton adapter BKE-I-ZU200/AB350-16QMM aansluidadapter (196796)

Connection adapter for Eaton BKE-I-ZU200 and AB350 series circuit breakers, enabling secure connection of 16 mm² conductors via screw terminals.

Advantages

The adapter is made of light grey thermoplastic and features a copper alloy contact for reliable electrical conductivity. Its direct attachment to compatible device terminals simplifies installation.

Suitable for

• Eaton BKE-I-ZU200 series devices
• Eaton AB350 series devices

Key specifications

• Conductor cross-section: 16 mm²
• Connection method: screw terminal
• Number of poles: 1
• Material: thermoplastic housing, copper alloy contact
• Colour: light grey
• Operating temperature: -25 °C to +70 °C

Recommendations

Verify compatibility with your specific Eaton device model before installation.
