Eaton CI-PKZ01 opbouwbehuizing met geïntegreerde schakelaar, 158 x 80 x 116,5 mm, grijs 281403

Rated insulation voltage up to 690 V and IP65 protection make this surface-mounted enclosure a robust solution for motor protective circuit breakers.

Overview

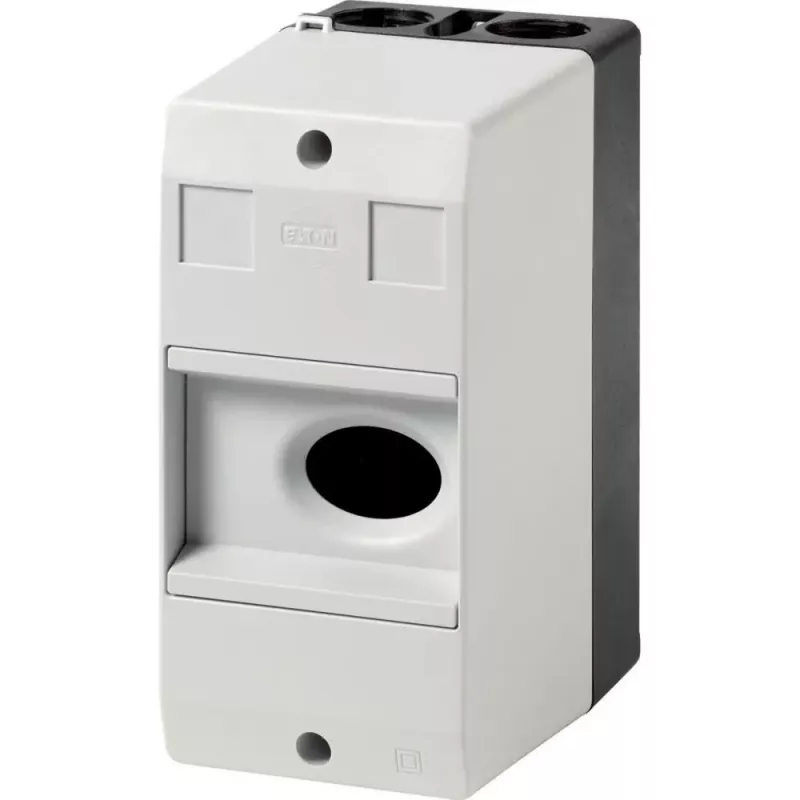

The Eaton CI-PKZ01 is a grey surface-mounted enclosure designed to house Eaton PKZ0, PKZM0, and PKE motor protective circuit breakers. It features an integrated ON/OFF pushbutton switch (black/white) and top and bottom knockouts for cable entry (e.g., 2x M25/M32).

What stands out

• Integrated ON/OFF pushbutton switch for direct control
• IP65 and NEMA 12 protection against dust and water jets
• Halogen-free, self-extinguishing insulating material
• Wide operating temperature range: -25 to +70 °C

Technical details

• Dimensions (L x W x H): 158 x 80 x 116.5 mm
• Material: Plastic (insulating material), grey RAL 7035
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: Wall mounting
• Standards: IEC/EN 60947, VDE 0660

Our verdict

A compact, reliable enclosure for motor protection applications, offering high insulation and environmental resistance.
