EATON CORPORATION Eaton 9SX 1500i - 1500VA 1350W

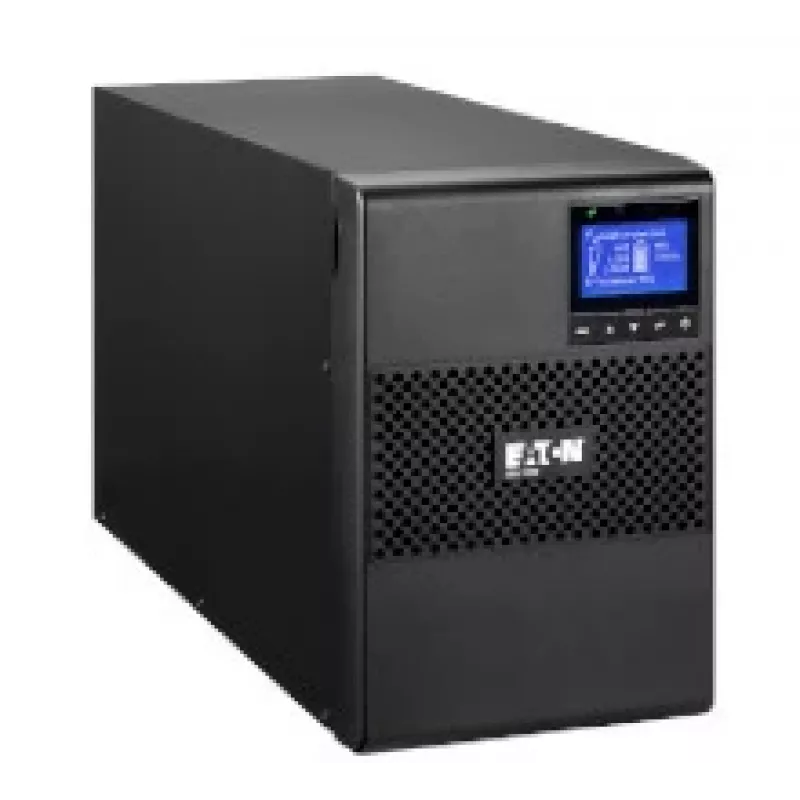

The Eaton 9SX is a 1.5 kVA double-conversion uninterruptible power supply (UPS) designed to provide stable, continuous power to critical equipment. It delivers 1350 W of output power through six AC outlets (C13 coupler) and includes a front-panel LCD for real-time status and measurements. The unit uses sealed lead acid battery technology and offers typical backup time around 16 minutes at half load, enabling orderly shutdowns or bridge time for generators and other continuity systems.

Advantages

The double-conversion topology ensures near-perfect output voltage and frequency independent of input fluctuations, protecting sensitive electronics from surges, sags and harmonic distortion. Built-in monitoring via the LCD and a USB 2.0 port allows simple integration with management software for automated actions and event logging. Compact rack/tower-compatible design and a robust build in black finish make it suitable for data closets, server rooms and network cabinets where physical space and appearance matter.

Suitable for

• Small to medium server racks and IT cabinets
• Network equipment: switches, routers and firewalls
• VoIP and telephony systems
• Workstations and storage devices requiring clean power
• Environments needing graceful shutdown or short-term backup

Key specifications

• Output power: 1350 W
• Apparent power capacity: 1.5 kVA
• AC outlets: 6 × C13-style sockets
• Front-panel LCD for status and measurements
• Battery technology: sealed lead acid
• Typical backup time: approximately 16 minutes at 50% load
• Connectivity: 1 × USB 2.0 port for management
• Form factor: rack/tower compatible, black finish
• Weight: 24.5 kg

How to use

Install the Eaton 9SX in a stable, ventilated location or mount it in a compatible rack following the manufacturer’s mechanical and clearance recommendations. Connect critical devices to the AC outlets and plug the UPS into a grounded AC supply. Use the front-panel LCD to verify input/output status and battery condition. For unattended sites, connect the USB 2.0 port to a management server and configure shutdown and notification software so devices can shut down safely when runtime is low. Periodically inspect the unit for dust accumulation and ensure battery health by following scheduled self-test or runtime checks.

Recommendations

To maximize reliability, place the UPS in a temperature-controlled environment, avoid stacking heavy objects on top, and perform regular battery tests. Keep firmware and management software up to date and plan load sizing to maintain sufficient runtime for orderly shutdown or transfer to backup power.
