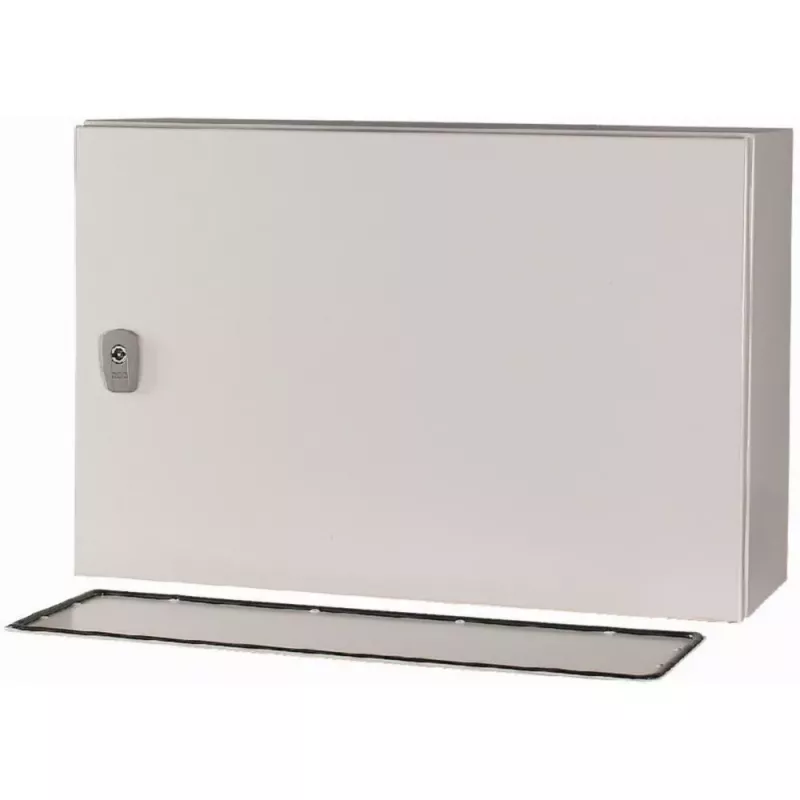

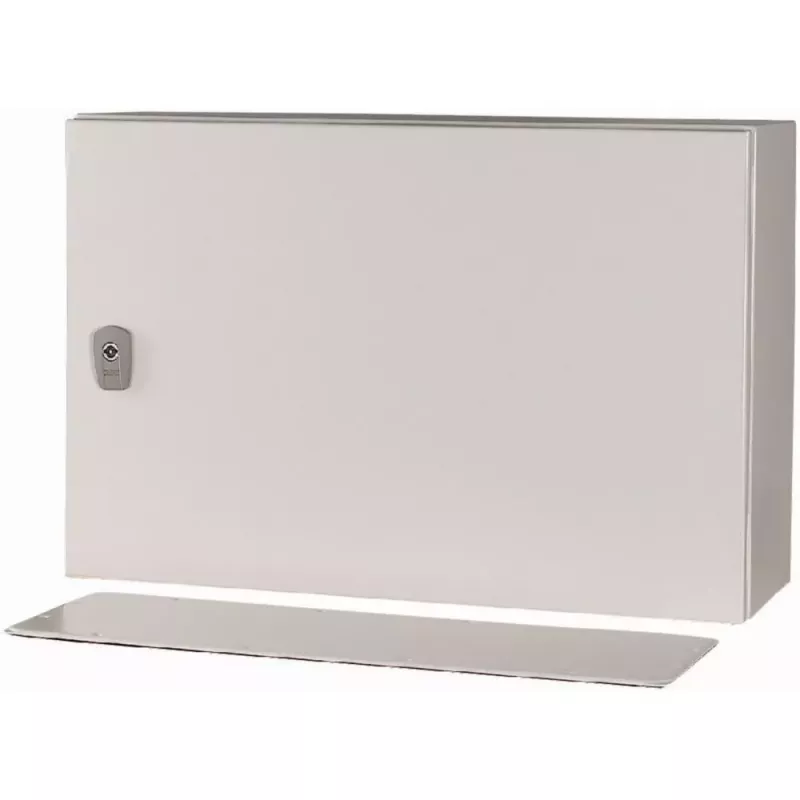

Eaton CS-46/200 wandbehuizing 10U grijs (111685)

With a load capacity of 20 kg and a 10U 19-inch rack format, this wall-mounted enclosure provides a compact, secure housing for network and IT distribution equipment.

Overview

The Eaton CS-46/200 is a wall-mounted enclosure constructed from steel sheet and finished in grey (RAL 7035). It accommodates 19-inch rack equipment up to 10 rack units (10U) and supports a total load of 20 kg. The enclosure features a single-section safety glass door that opens 180° and is secured with a swivel handle and security lock. Fixed side panels and pre-punched cable entry openings on the top and bottom allow for flexible cable routing. The usable depth is approximately 150-160 mm, suitable for patch panels, switches, and other shallow-depth equipment.

What stands out

• 10U wall-mounted design saves floor space
• Safety glass door with 180° opening and security lock
• 20 kg load capacity for network equipment
• Pre-punched top and bottom cable entries
• Steel construction with grey RAL 7035 finish

Technical details

• Rack units: 10U
• Rack standard: 19-inch
• Material: Steel sheet
• Colour: Grey (RAL 7035)
• Door type: Single-section safety glass door
• Door opening angle: 180°
• Lock type: Swivel handle with security lock
• Side panels: Fixed
• Cable entry: Top and bottom (pre-punched openings)
• Load capacity: 20 kg
• Mounting type: Wall mounting
• Usable depth: Approx. 150-160 mm
• Included accessories: 2 keys, wall mounting material

Our verdict

A dependable wall-mount enclosure for small network installations, offering security and easy cable management in a compact footprint.
