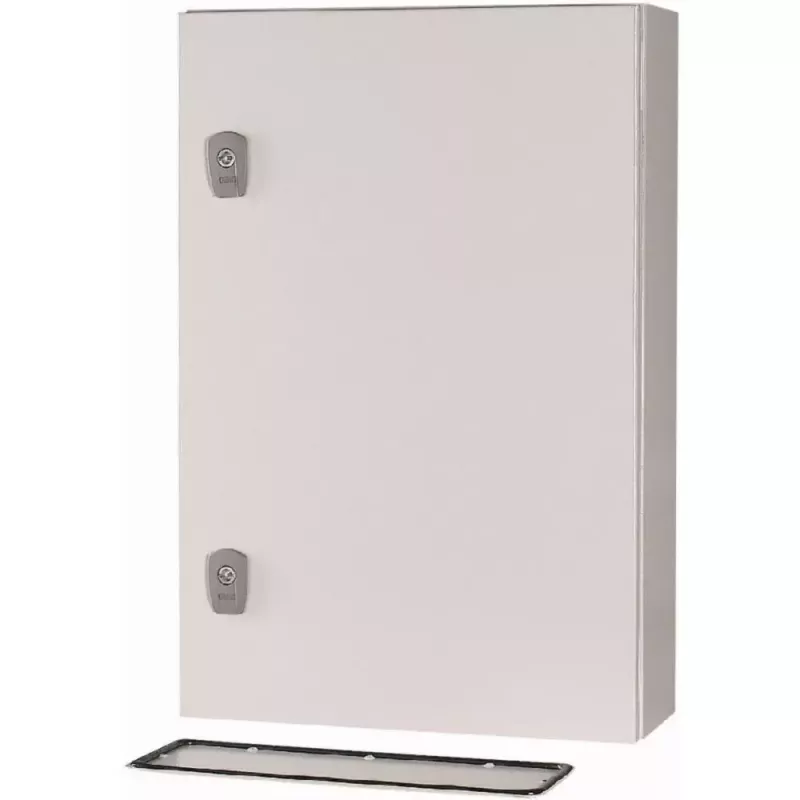

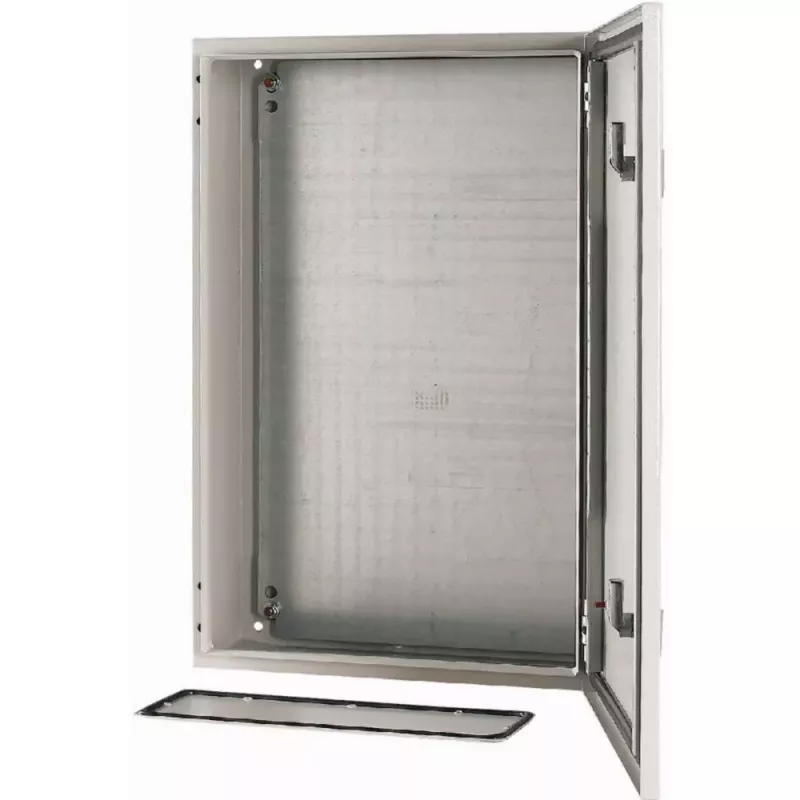

Eaton CS-64/150 wandgemonteerde rack 6U 600x400x150 mm grijs 111692

With a 20 kg load capacity, the Eaton CS-64/150 wall-mounted rack offers a secure 6U enclosure for network equipment in space-constrained environments.

Overview

The Eaton CS-64/150 is a wall-mounted rack designed for structured cabling and small network installations. Its 600 x 400 x 150 mm dimensions and 6U capacity provide a compact yet functional solution. The grey powder-coated sheet steel construction ensures durability, while the single-pane safety glass door with swivel handle and security lock protects installed equipment.

What stands out

• Wall-mounted design saves floor space
• Safety glass door with 180° opening for easy access
• Depth-adjustable 19-inch profile rails for flexible installation
• Top and bottom cable entry with brush strips for clean cable management
• Passive ventilation with option for fan unit

Technical details

• Rack units: 6U
• External dimensions: 600 mm (H) x 400 mm (W) x 150 mm (D)
• Material: Sheet steel, powder-coated
• Colour: Grey (RAL 7035)
• Load capacity: 20 kg
• Door: Single-pane safety glass, swivel handle with security lock
• Mounting rails: Two 19-inch profile rails, depth-adjustable
• Cable entry: Top and bottom with brush strips
• Side panels: Fixed
• Ventilation: Passive, prepared for optional fan unit
• Grounding: Grounding points on door and body

Our verdict

A reliable and compact wall-mounted rack for small network installations, offering solid construction and convenient access.
