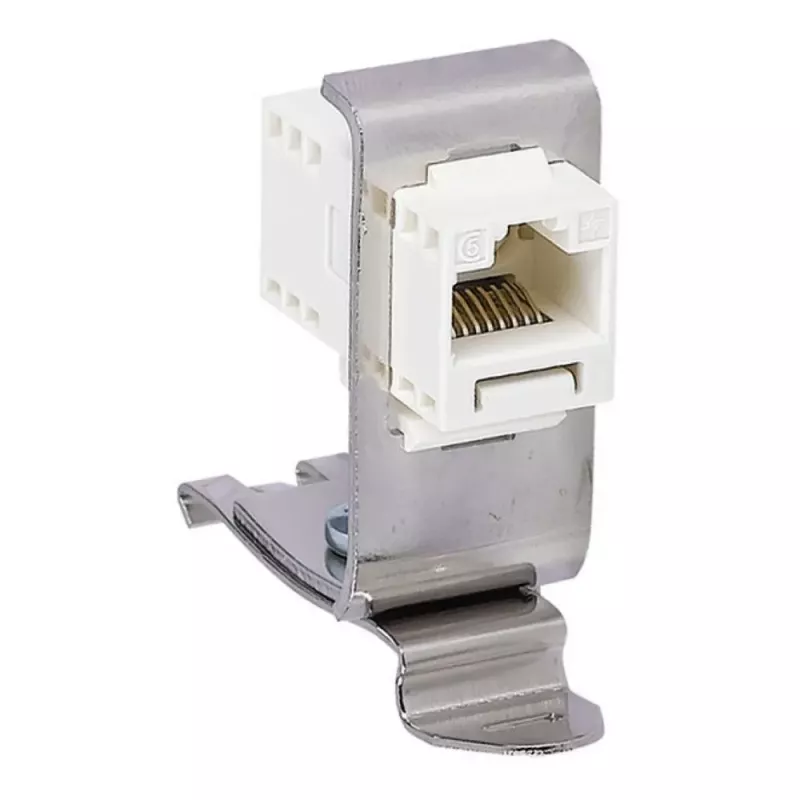

EATON data-interfacemodule ZSD-ZWR-RJ45, RJ45 naar schroefklemmen, DIN-rail, Cat.5e, afgeschermd, lichtgrijs 171507

In industrial environments, connecting field devices with RJ45 connectors to terminal blocks often requires a reliable, space-saving interface. The EATON ZSD-ZWR-RJ45 solves this by providing a direct conversion from an RJ45 socket to screw terminals, eliminating the need for separate patch panels or custom wiring. This module is designed for DIN rail mounting, making it ideal for control cabinets and building automation systems where standardized connectivity is essential.

Who is it for

This data interface module is intended for system integrators, panel builders, and maintenance technicians who need a robust and easy-to-install connection point between Ethernet cabling and screw-terminal field wiring. It is particularly suited for industrial Ethernet applications, building automation, and any control cabinet where space is at a premium.

Main features

• Converts RJ45 socket to screw terminals for flexible field wiring
• Supports Cat.5e transmission up to 100 MHz for reliable data rates
• Shielded design (STP/FTP compatible) for noise immunity
• DIN rail mountable (TS 35) for quick installation in cabinets
• Compact housing in light grey (RAL 7035) blends with standard enclosures
• Wide operating temperature range from -20 °C to +70 °C
• Rated for 60 V DC and 1 A, suitable for low-voltage signal circuits

Specifications

• Product Type: Data Interface Module
• Connector Type (Front): RJ45 Socket
• Connector Type (Rear/Field): Screw Terminals
• Number of Ports: 1 (RJ45)
• Mounting Type: DIN Rail (TS 35)
• Transmission Category: Cat.5e
• Transmission Speed: Up to 100 MHz
• Shielding: Shielded (STP/FTP compatible)
• Housing Material: Polyamide (PA) / Polycarbonate (PC)
• Color: Light Grey (RAL 7035)
• Protection Rating (IP): IP20
• Operating Temperature: -20 °C to +70 °C
• Storage Temperature: -40 °C to +85 °C
• Rated Voltage: 60 V DC
• Rated Current: 1 A
• Wire Size (Solid): 0.14 - 1.5 mm² (AWG 26 - 16)
• Wire Size (Stranded): 0.14 - 1.5 mm² (AWG 26 - 16)
• Flammability Rating: UL 94 V-0
• Standards Compliance: IEC 60603-7-3, EN 50173, ISO/IEC 11801
• Application: Industrial Ethernet, Building Automation, Control Cabinets

Tips

When wiring the screw terminals, use a torque screwdriver set to the manufacturer's recommended value to ensure secure connections without damaging the module. For best performance, pair with shielded Cat.5e or higher cables and maintain proper grounding of the DIN rail.
