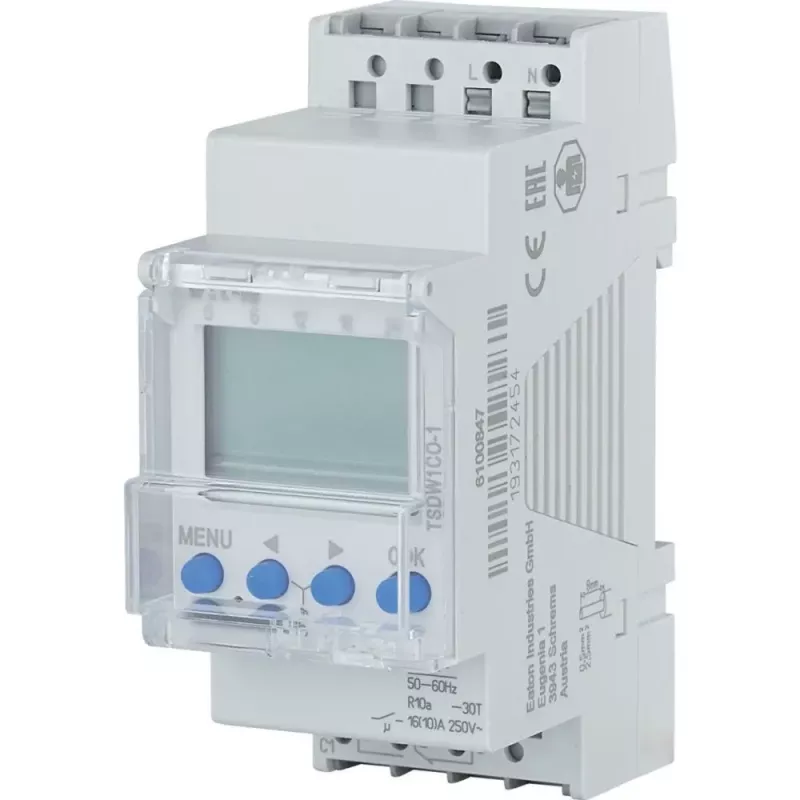

Eaton digitale tijdschakelaar 1 kanaal TSDW1CO-1 (196848)

16 A switching capacity with 50 programmable memory locations and a 3-year lithium power reserve define this DIN-rail digital time switch.

Overview

The Eaton TSDW1CO-1 is a 1-channel digital time switch for DIN rail mounting, offering daily and weekly programming with 50 memory locations for ON/OFF switching. It operates on 230 V AC at 50/60 Hz and provides a 1 changeover contact (SPDT) with 16 A resistive load capacity (10 A inductive at cos φ = 0.6). The LCD display and manual override (permanent/temporary ON/OFF) ensure straightforward control, while the quartz-controlled time base maintains accuracy. A lithium battery provides approximately 3 years of power reserve, and the minimum switching time is 1 minute. The unit occupies 1 module width (17.5 mm) and has an IP20 front protection rating, suitable for operating temperatures from -10 to +55 °C.

What stands out

• 50 memory locations for flexible daily/weekly scheduling
• 16 A resistive switching capacity (10 A inductive)
• 3-year lithium battery power reserve
• Manual override for permanent or temporary ON/OFF
• Compact 1-module DIN rail design

Technical details

• Number of channels: 1
• Programming type: daily and weekly
• Mounting type: DIN rail
• Module width: 1 module (17.5 mm)
• Supply voltage: 230 V AC
• Frequency: 50/60 Hz
• Contact configuration: 1 changeover contact (SPDT)
• Switching capacity (resistive load): 16 A at 250 V AC
• Switching capacity (inductive load): 10 A (cos φ = 0.6)
• Minimum switching time: 1 minute
• Number of memory locations: 50
• Power reserve: ~3 years (lithium battery)
• Display type: LCD
• Protection degree (front): IP20
• Operating temperature range: -10 to +55 °C
• Manual override: yes (permanent ON/OFF, temporary ON/OFF)
• Time base: quartz controlled

Our verdict

A reliable and precise digital time switch for DIN rail installations, offering ample programming capacity and robust switching performance in a compact form factor.
