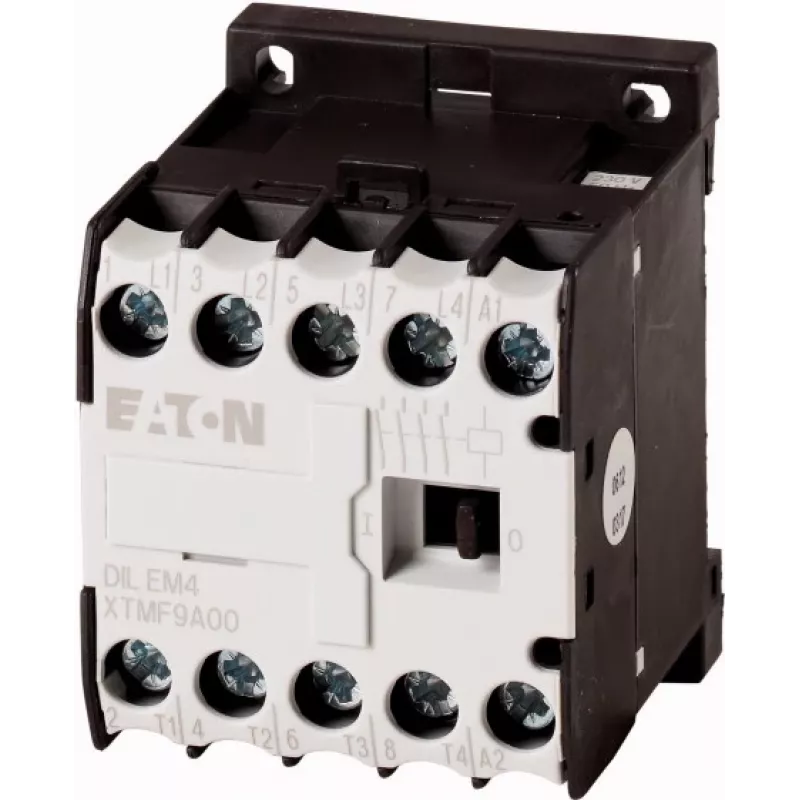

Eaton DILEM-4-230 Mini-contactrelais, 230 V AC, 4 kW, 3-polig, 1 NO hulpcontact, schroefaansluitingen

The Eaton DILEM-4-230 is a compact and reliable mini contactor designed for motor control and switching applications. With a coil voltage of 230 V AC (50 Hz) / 240 V AC (60 Hz), it delivers a rated operational power of 4 kW (AC-3, 400 V) and a rated current of 9 A. This 3-pole contactor features one normally open (NO) auxiliary contact and screw terminals for secure wiring. It complies with international standards IEC/EN 60947-4-1, UL 508, and CSA-C22.2 No. 14-05, and carries CE certification. Suitable for DIN rail or screw mounting, it operates in temperatures from -25 °C to 50 °C and has an IP20 protection degree.

Advantages

Compact design saves space in control panels. High reliability with mechanical durability of up to 10 million cycles. Easy installation with screw terminals and multiple mounting options. Compliant with global standards for broad acceptance.

Suitable for

• Motor starting and switching in industrial machinery
• Lighting and heating control systems
• HVAC equipment
• Pump and fan control
• General electrical distribution

Key specifications

• Product Type: Mini Contactor
• Coil Voltage: 230 V AC (50 Hz) / 240 V AC (60 Hz)
• Number of Main Poles: 3
• Auxiliary Contact Configuration: 1 NO
• Rated Operational Current (AC-3, 400 V): 9 A
• Rated Operational Power (AC-3, 400 V): 4 kW
• Rated Insulation Voltage (Ui): 690 V
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Operating Frequency: 50/60 Hz
• Standards: IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05
• Certifications: CE
• Operating Temperature Range: -25 °C to 50 °C
• Mounting Type: DIN Rail / Screw Mounting
• Protection Degree: IP20
• Weight: 170 g

Recommendations

For optimal performance, ensure the coil voltage matches your control circuit. Use appropriate overload protection devices. The contactor is suitable for AC-3 utilization category (inductive loads).
