Eaton DILEM4 magneetschakelaar, spoel 400 V 50 Hz / 440 V 60 Hz, 051806

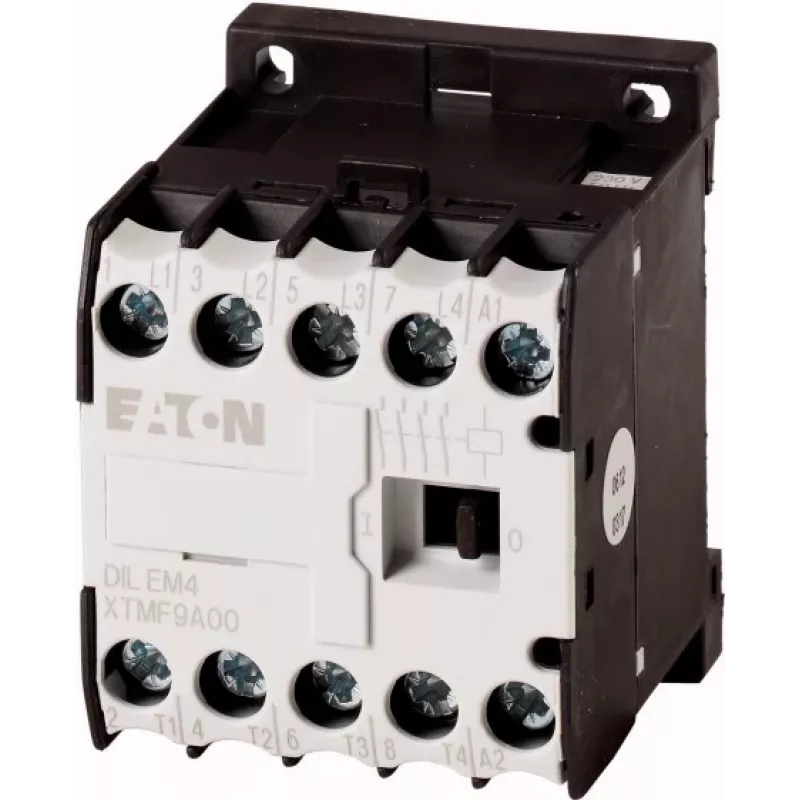

The Eaton DILEM4 is an electrical contactor designed for 400V 50Hz and 440V 60Hz applications. It operates within a voltage range up to 690 V and a frequency of 50/60 Hz, and is compliant with IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, and CE standards.

Key features

• Complies with IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, and CE
• Operates at 50/60 Hz
• Voltage up to 690 V
• Operating temperature range: -25 to 50 °C
• Weight: 170 g

Specifications

• Brand: Eaton
• MPN: 051806
• Coil voltage: 400V 50Hz, 440V 60Hz
• Voltage: 690 V
• Frequency: 50/60 Hz
• Weight: 170 g
• Operating temperature: -25 to 50 °C
• Compliance: IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14-05, CE
