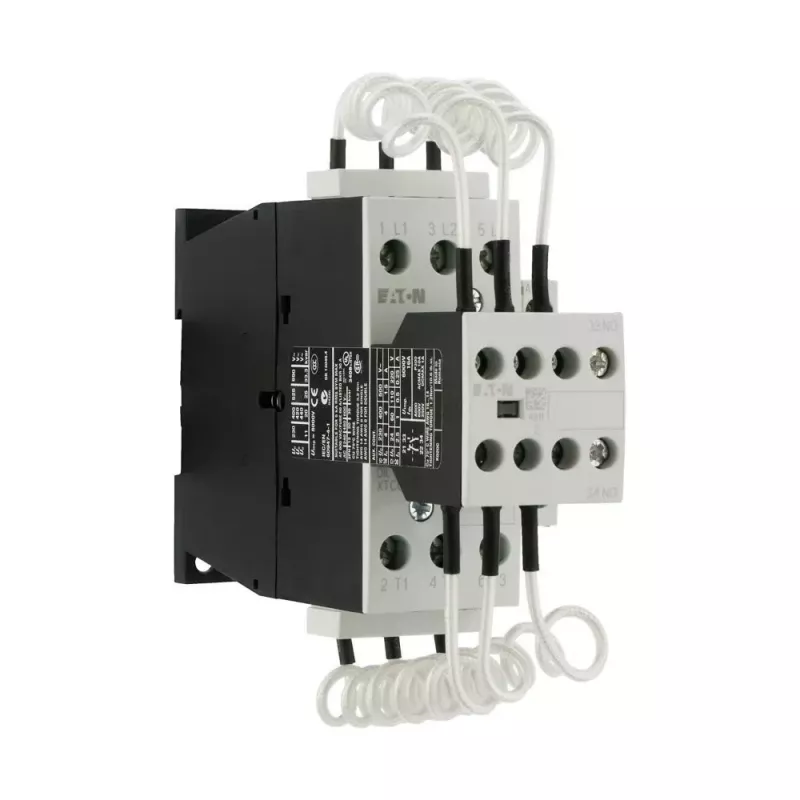

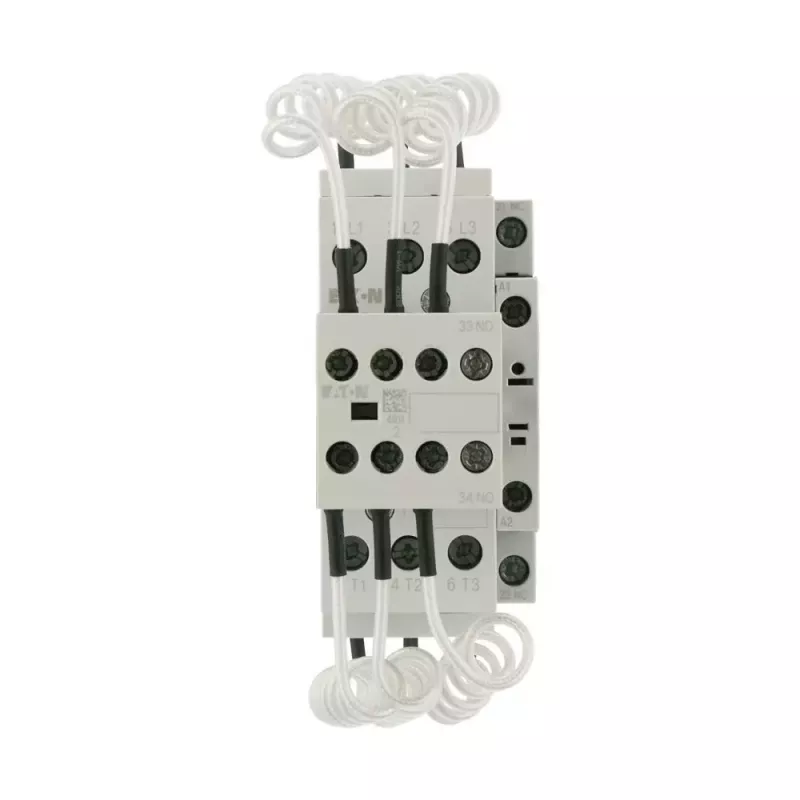

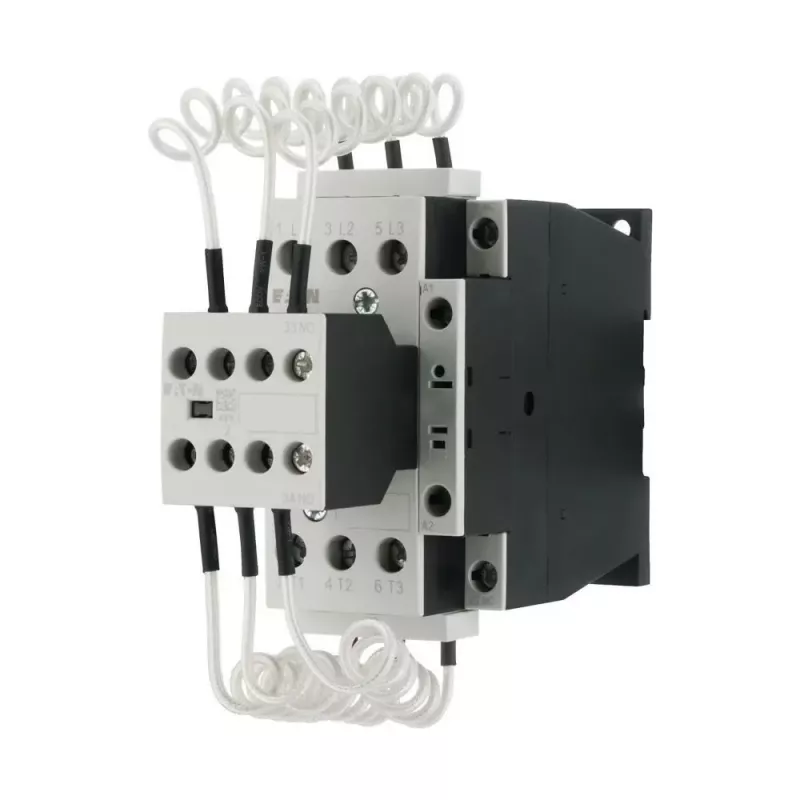

Eaton DILK25-11 condensatorcontactor 230V 50Hz 3-polig 12,5kVAr 294032

In industrial power factor correction systems, the Eaton DILK25-11 capacitor duty contactor switches capacitor banks reliably while limiting inrush currents. The integrated damping resistors reduce current peaks during energization, protecting capacitors and extending system life.

Key specifications

• Coil voltage: 230 V AC, 50 Hz
• 3-pole main contacts, 1 NO + 1 NC auxiliary contacts
• Capacitor switching capacity: 12.5 kVAr at 400 V, 7.5 kVAr at 230 V
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail or screw
• Terminals: screw type, IP20 protection

Why choose it

This contactor is engineered for capacitor switching, with built-in damping resistors that suppress inrush currents. It meets IEC/EN 60947-4-1 and VDE 0660, ensuring reliable operation in reactive power compensation equipment.

Ideal use cases

• Automatic power factor correction panels
• Industrial capacitor banks
• HVAC and motor control centers with reactive compensation

Good to know

The DILK series is designed for frequent switching of capacitive loads, offering long electrical and mechanical life. Screw terminals provide secure connections for field wiring.
