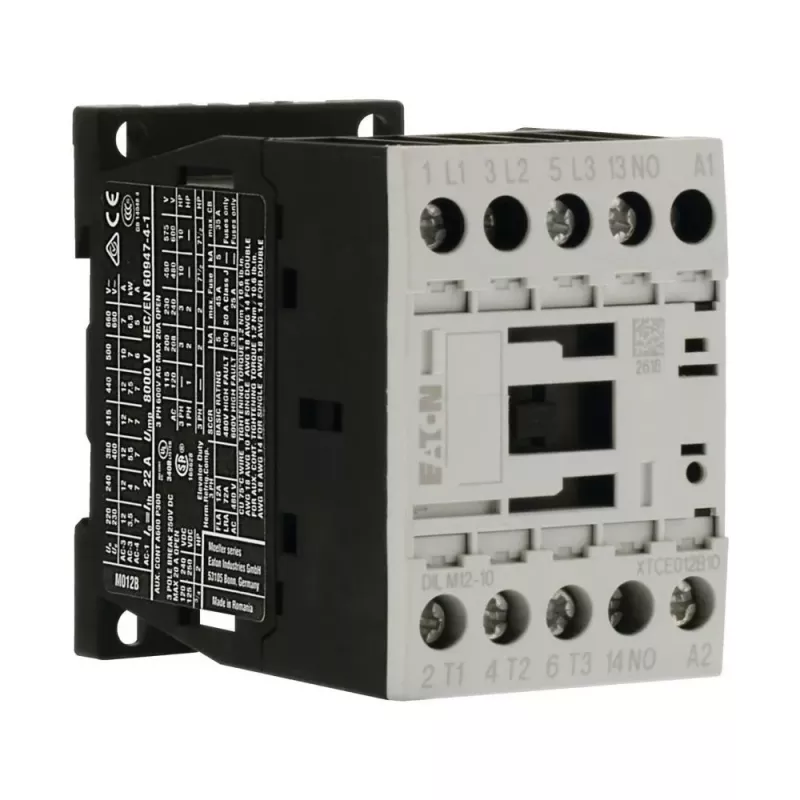

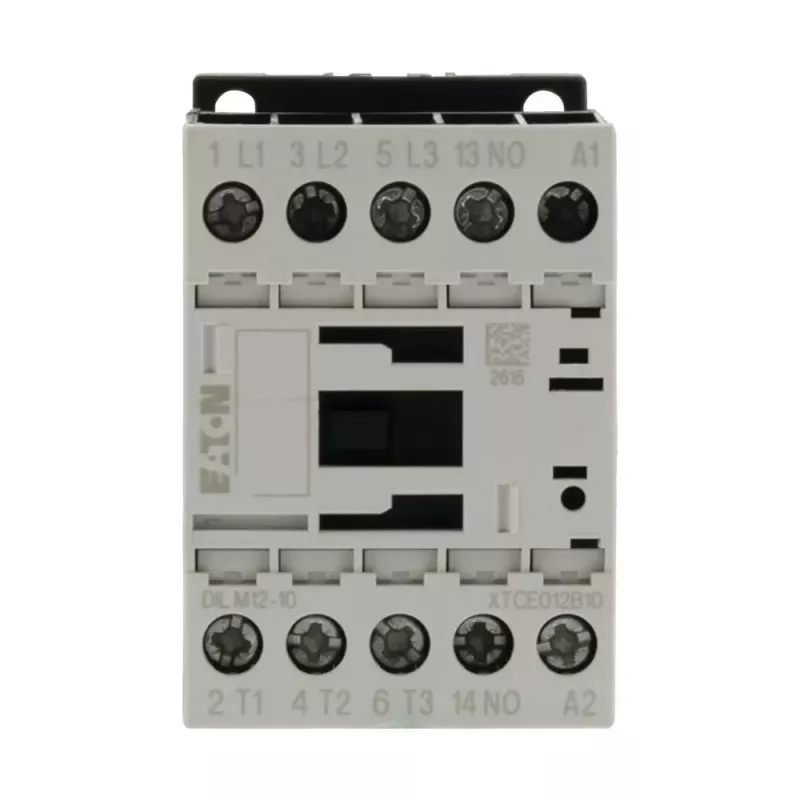

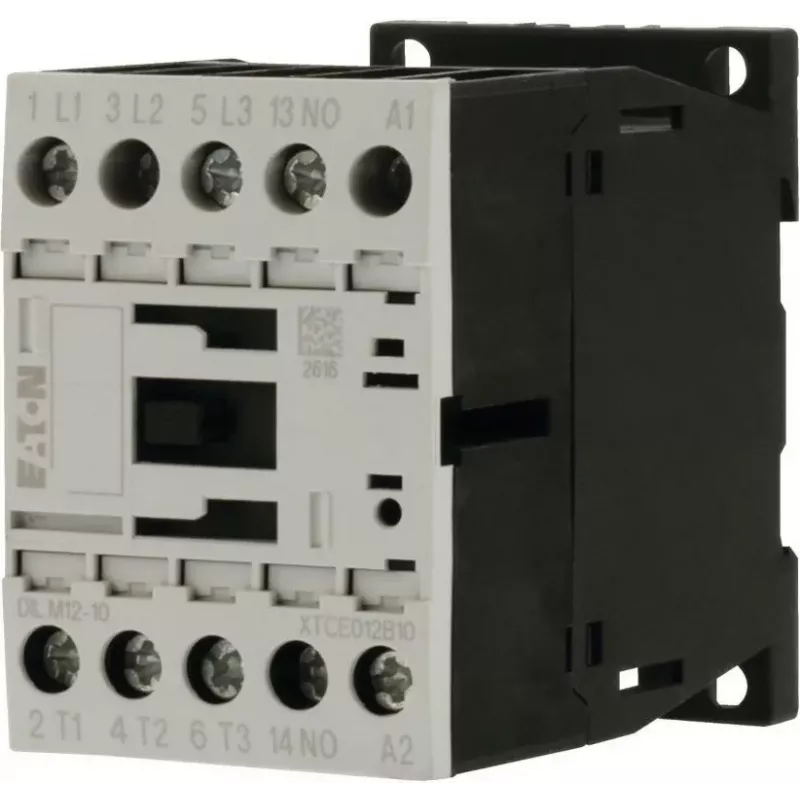

EATON DILM12-10 vermogenscontactor 3-polig 12 A 5,5 kW 110 V AC spoel 1 NO 276827

Power contactor for switching three-phase AC motors up to 5.5 kW at 400 V. The DILM12-10 features a 110 V AC coil and one normally open auxiliary contact, making it suitable for direct motor starting and control circuits.

Advantages

Compact frame size DILM12 with screw terminals and DIN rail or screw mounting. High mechanical durability of 10 million operations and electrical durability of 1.5 million operations in AC-3 duty ensure long service life. Rated insulation voltage 690 V and impulse withstand voltage 6 kV provide reliable isolation.

Suitable for

• Motor starting and stopping in industrial control panels
• Heating, ventilation, and air conditioning systems
• Pump and fan control circuits

Key specifications

• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Coil voltage: 110 V AC (50/60 Hz)
• Main poles: 3 NO
• Auxiliary contacts: 1 NO
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mechanical durability: 10 x 10^6 operations
• Electrical durability (AC-3): 1.5 x 10^6 operations
• Short-circuit protection (gG/gL): 16 A
• Ambient operating temperature: -25 to +60 °C
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Degree of protection: IP20

Recommendations

Select appropriate overload relay and short-circuit protection according to motor full-load current. Ensure coil voltage matches control circuit voltage.
