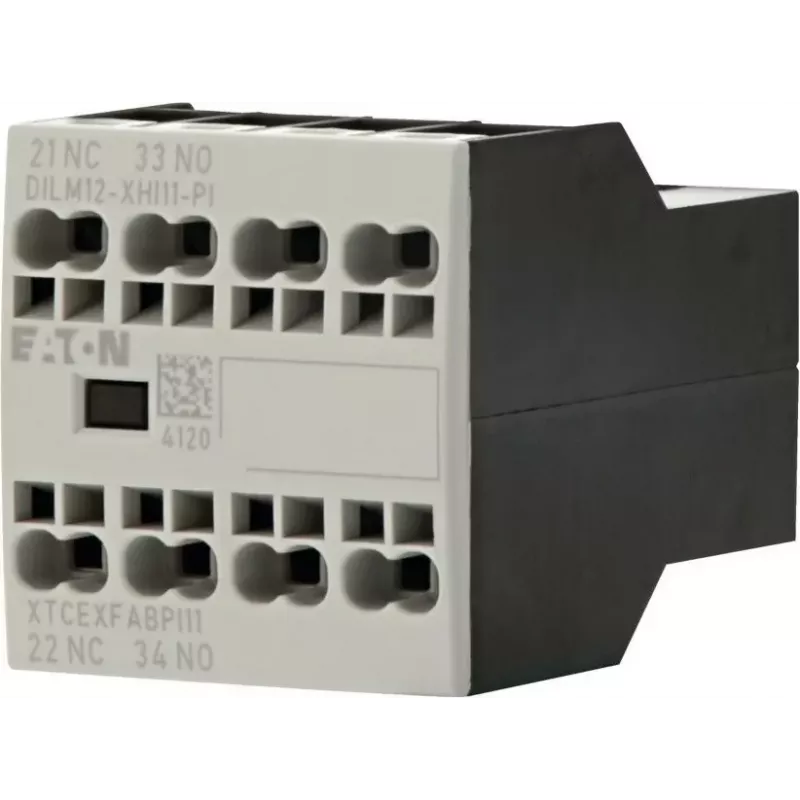

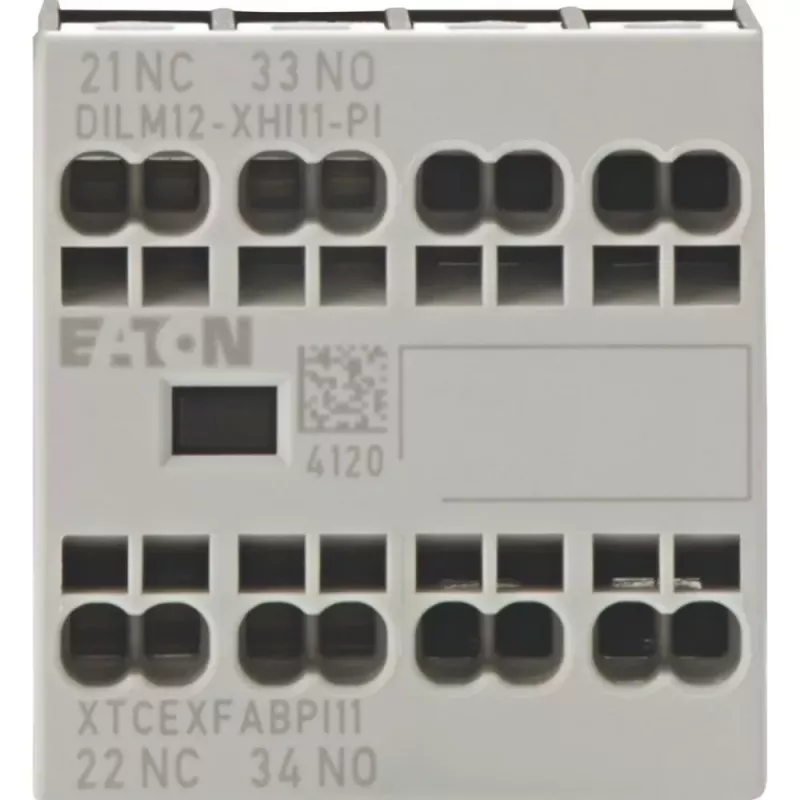

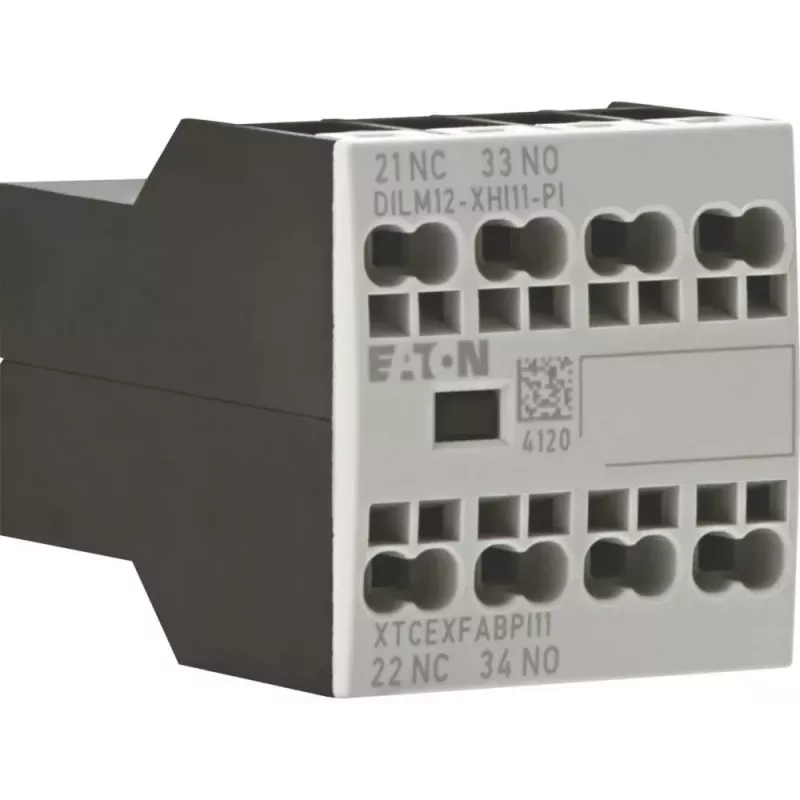

Eaton DILM12-XHI11 hulpcontactblok, 1NO+1NC, frontmontage, schroefklemmen 199456

Contactors often need extra auxiliary contacts for control signaling, interlocking, or status feedback. The Eaton DILM12-XHI11 auxiliary contact block adds one normally open and one normally closed contact to compatible DILM series contactors, expanding control possibilities without replacing the main device.

Who is it for

Panel builders, machine builders, and maintenance technicians who use Eaton DILM contactors and require additional auxiliary contacts for control circuits. It suits applications where a reliable, front-mounting contact block is needed for quick installation without tools.

Main features

• 1 normally open (N/O) and 1 normally closed (N/C) contact
• Front mounting for easy installation on Eaton DILM7 to DILM38 contactors
• Screw terminals for secure wiring
• Rated operational current: 4 A at AC-15, 230 V; 1 A at DC-13, 24 V
• Rated insulation voltage: 690 V
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Mechanical life: >10 million operations

Specifications

• Contact configuration: 1 N/O + 1 N/C
• Mounting type: Front mounting
• Compatibility: Eaton DILM7 to DILM38 contactors
• Terminal type: Screw terminals
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947-5-1
• Connection capacity (solid/stranded): 1 x (0.75 - 2.5) mm², 2 x (0.75 - 2.5) mm²
• Short-circuit protection: Fuse gG/gL, 6 A
• Electrical life (AC-15): >1.5 million operations
• Mechanical life: >10 million operations
• Number of poles: 2-pole
• Product series: DILM
• Function: Auxiliary contact block

Tips

Verify the contactor model before ordering to ensure compatibility. The block mounts on the front of the contactor without tools, simplifying installation and retrofitting. Use appropriate fusing as specified to protect the contacts.
