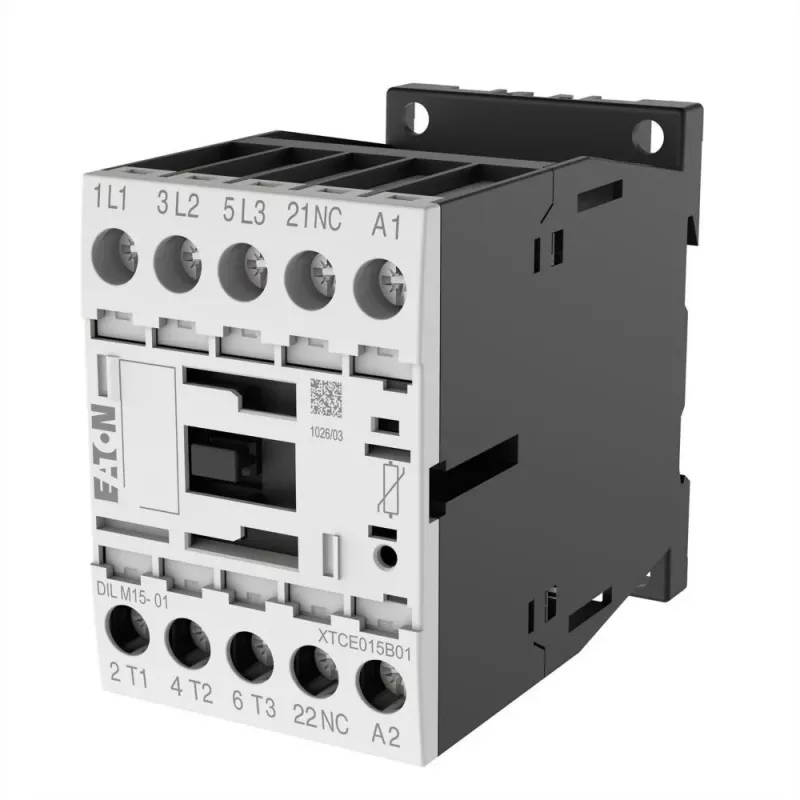

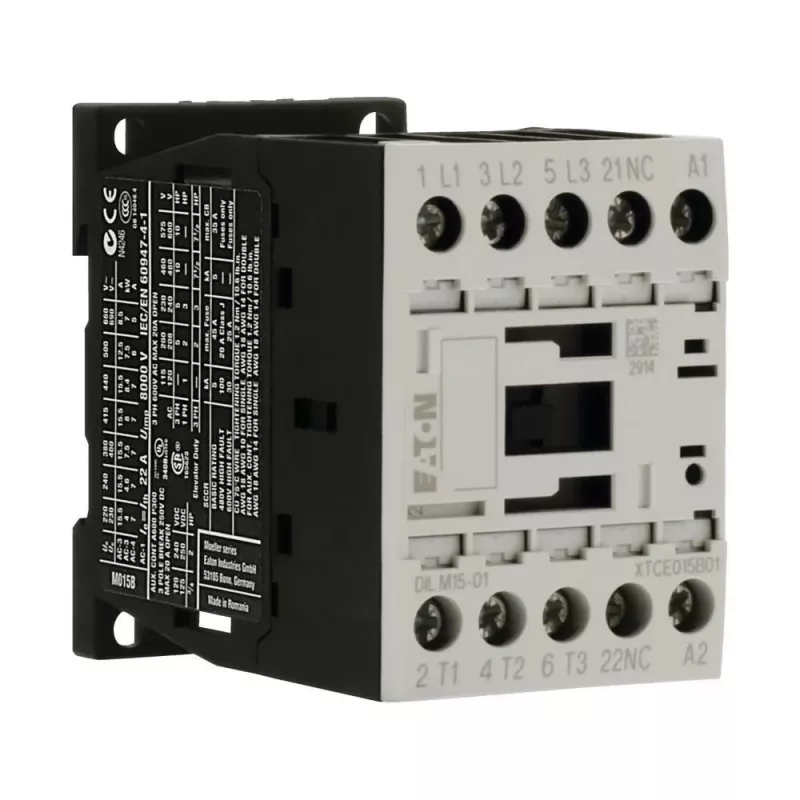

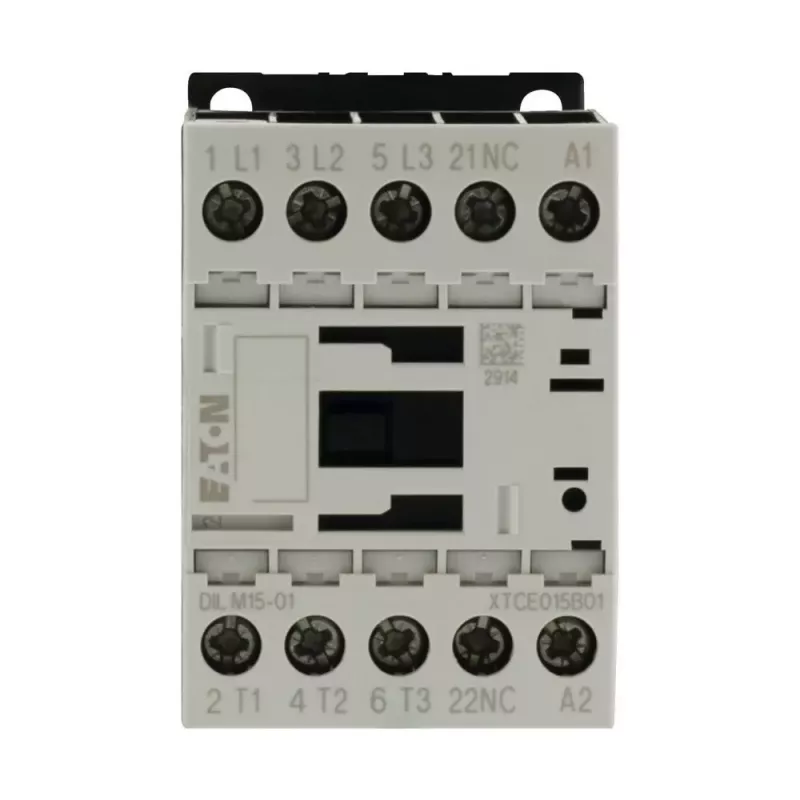

Eaton DILM15-01 24VDC 3-polige contactor, 1 NC hulpcontact, 15 A AC-3, DIN-rail/schroefaansluiting 290108

The Eaton DILM15-01 contactor stands out with its 24 V DC coil, making it ideal for control circuits where DC switching is preferred. Unlike many alternatives that rely on AC coils, this model offers precise low-voltage DC operation with a 3-pole main contact set and a built-in 1 NC auxiliary contact for status feedback or interlocking.

Highlights

• 3-pole main contacts rated 15 A (AC-3, 400 V) for motor switching up to 7.5 kW
• 24 V DC coil for direct control from PLC outputs or DC power supplies
• 1 NC auxiliary contact integrated for control logic or signaling
• Compact DIN rail or screw mounting for flexible panel installation
• Rated insulation voltage 690 V and impulse withstand 6 kV for robust industrial use

In daily use

Install the DILM15-01 on a standard 35 mm DIN rail or screw it directly to a backplate. Connect the 24 V DC coil to your control circuit, and wire the three main poles to your motor or load. The NC auxiliary contact opens when the contactor is energized, providing a reliable signal for interlocks or PLC inputs. With screw terminals, wiring is secure and maintenance-friendly.

Full specifications

• Number of poles: 3
• Auxiliary contacts: 1 NC
• Coil voltage: 24 V DC
• Rated operational current (AC-3, 400 V): 15 A
• Rated operational current (AC-1, 400 V): 22 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Rated operational voltage: up to 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail / screw
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Electrical life (AC-3): 10 million operations
• Mechanical life: 20 million operations

Final note

The DILM15-01 is a proven industrial contactor for motor control and switching applications, offering reliable DC coil operation and long service life.
