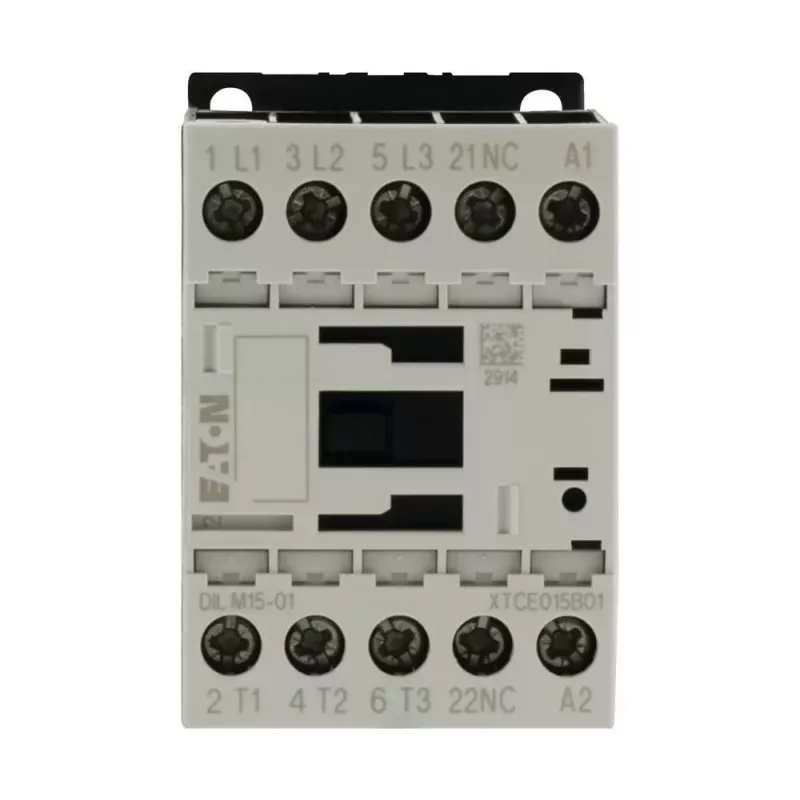

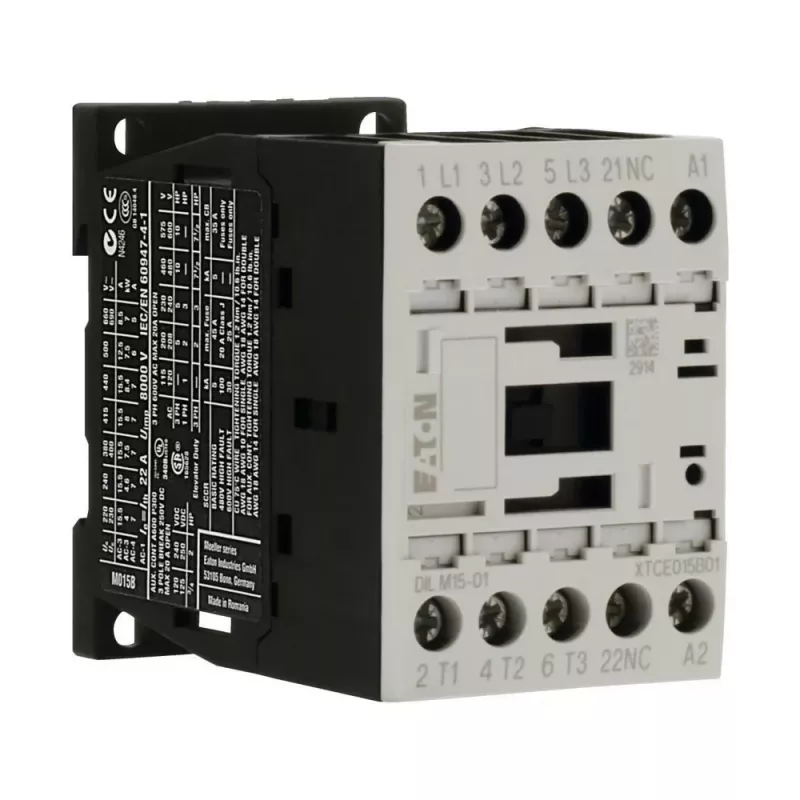

Eaton DILM15-01 schakelaar, 3-polig, 15 A, 230 V AC spoel, 1 NC hulpcontact 290093

Industrial motor control requires reliable switching of three-phase loads up to 7.5 kW at 400 V. The Eaton DILM15-01 contactor handles this with a 15 A AC-3 rating, a 230 V 50 Hz / 240 V 60 Hz coil, and a compact DIN-rail or screw-mount design.

Who is it for

Panel builders and maintenance engineers who need a dependable, standard-compliant contactor for motor starting, heating, and lighting circuits in industrial control panels.

Main features

• 3 main poles with a rated operational current of 15 A (AC-3, 400 V)
• 1 normally closed (NC) auxiliary contact for control and signaling
• Coil voltage: 230 V AC at 50 Hz, 240 V AC at 60 Hz
• Rated insulation voltage 690 V and impulse withstand 6 kV
• DIN rail or screw mounting, IP20 protection, screw terminals

Specifications

• Rated operational current (AC-3, 400 V): 15 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Number of main poles: 3
• Auxiliary contacts: 1 NC
• Coil voltage (AC 50 Hz): 230 V
• Coil voltage (AC 60 Hz): 240 V
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: DIN rail / screw mount
• Protection degree: IP20
• Operating temperature range: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10⁶ operations
• Mechanical life: 10 x 10⁶ operations
• Terminal type: screw terminals
• Standard compliance: IEC/EN 60947

Tips

Verify coil voltage and frequency match the control supply before installation. For motor loads, select the contactor based on AC-3 utilization category to ensure long electrical life.
