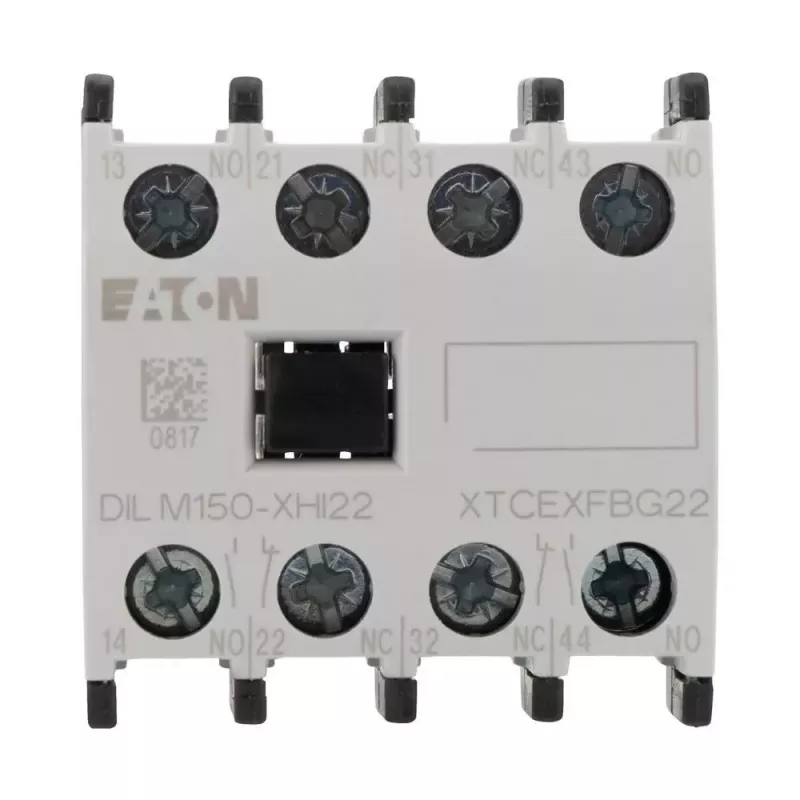

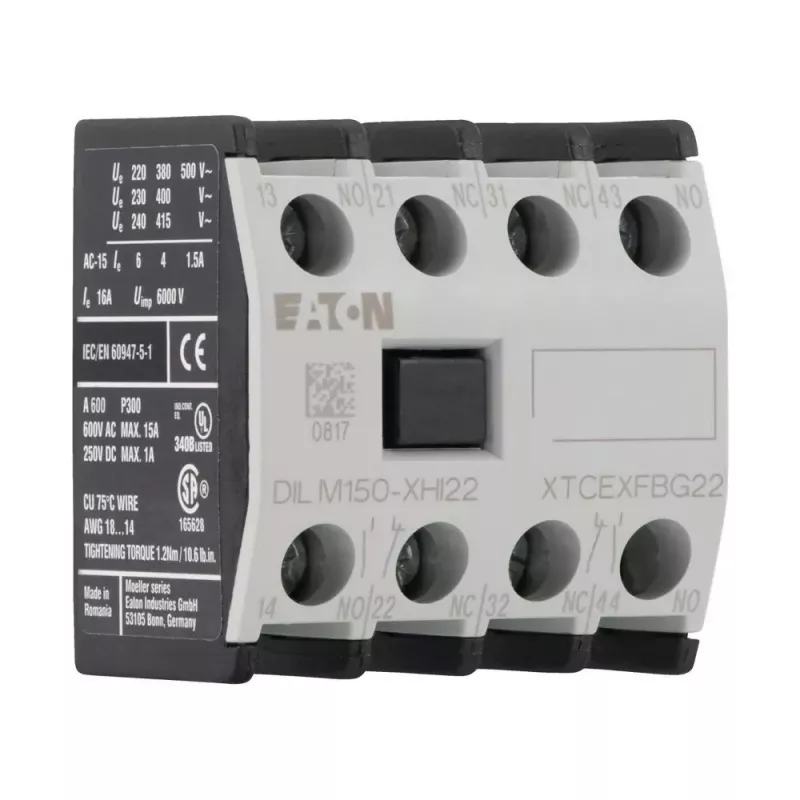

Eaton DILM150-XHI22 hulpcontactblok, 2NO+2NC, frontmontage, schroefklemmen 277950

The Eaton DILM150-XHI22 auxiliary contact block expands the functionality of Eaton DILM contactors with two normally open and two normally closed contacts. Front mounting and screw terminals ensure straightforward installation and secure wiring.

Advantages

This contact block offers reliable switching for control circuits, with a mechanical lifespan of 10 million operations. Its compact design integrates seamlessly with DILM40 to DILM170 contactors, providing versatile auxiliary contact expansion.

Suitable for

• Eaton DILM contactors (DILM40 - DILM170)
• Control circuit applications requiring additional NO/NC contacts
• Industrial automation and motor control systems

Key specifications

• Contact configuration: 2 NO + 2 NC
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 220 V): 1 A
• Rated insulation voltage: 690 V
• Degree of protection: IP20
• Ambient operating temperature: -25 to +60 °C
• Mechanical lifespan: 10 million operations
• Terminal capacity (solid): 1 x (0.75 - 2.5) mm²
• Terminal capacity (fine-stranded with ferrule): 1 x (0.75 - 1.5) mm²
• Tightening torque: 0.8 - 1.2 Nm

Recommendations

Verify compatibility with your specific Eaton DILM contactor model before ordering. Follow the tightening torque specifications to ensure reliable electrical connections.
