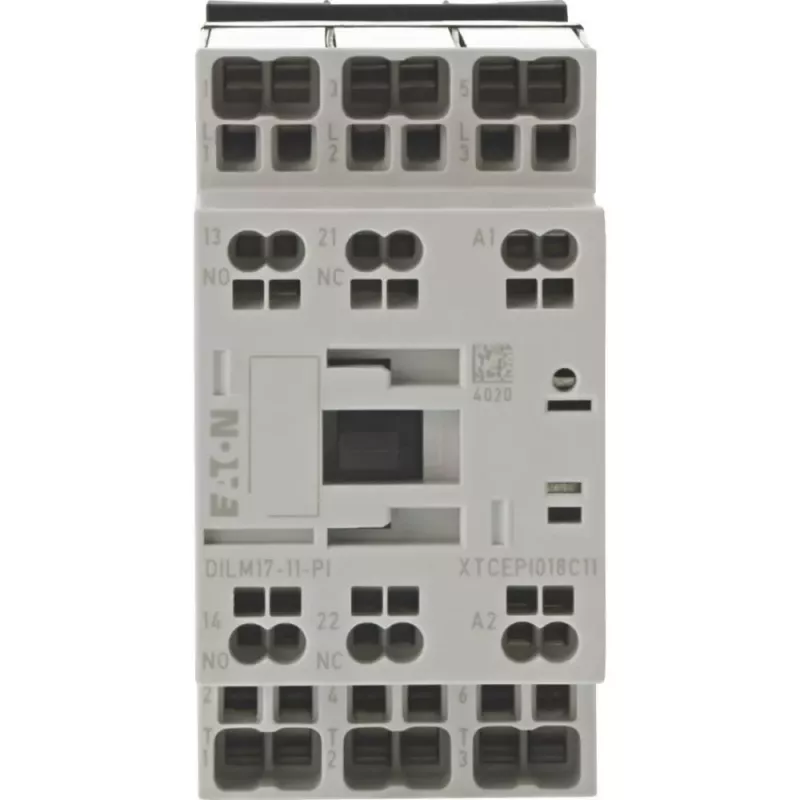

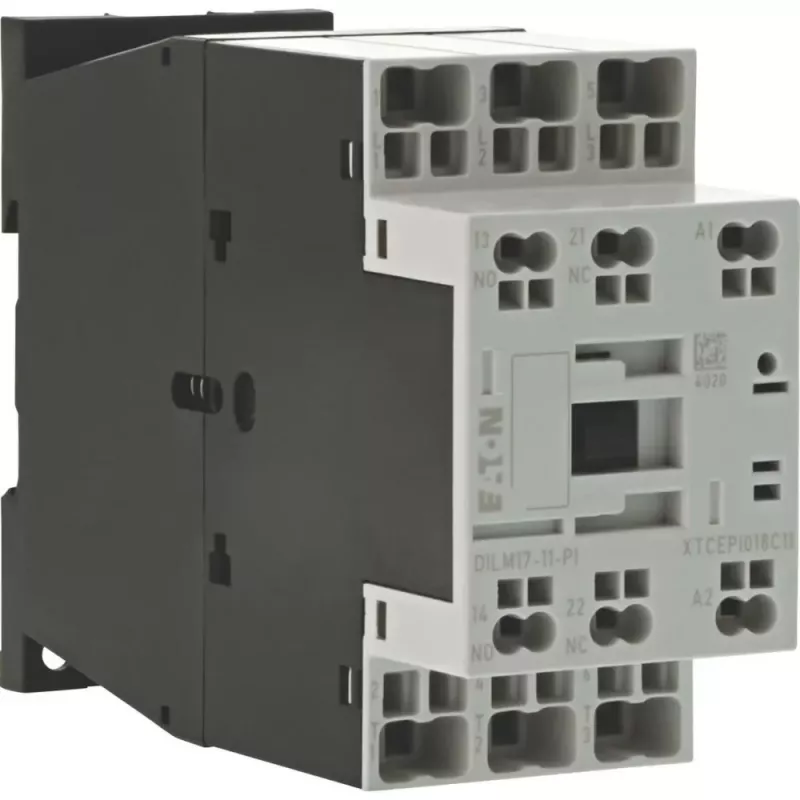

Eaton DILM17-11(RDC24)-PI vermogenscontactor, 3 NO hoofcontacten, 24 V DC spoel, 17 A 199283

The Eaton DILM17-11(RDC24)-PI stands out with its integrated suppressor circuit, which protects the coil from voltage spikes and reduces electromagnetic interference—a feature not always found on standard contactors. This 3-pole power contactor is engineered for reliable switching of three-phase motors up to 7.5 kW at 400 V AC-3, with a rated operational current of 17 A. Its compact design and screw terminals make it suitable for DIN rail or screw mounting in industrial control panels.

Highlights

• 3 main contacts, normally open (NO), for three-phase loads
• 24 V DC coil with integrated suppressor circuit for noise-free operation
• Rated for 17 A (AC-3, 400 V) and 7.5 kW motor power
• Auxiliary contacts: 1 NO + 1 NC for control and signaling
• High mechanical durability: 10 million operations

In daily use

This contactor is a workhorse in motor control applications, from conveyor systems to pumps and fans. The 24 V DC coil allows direct control from PLC outputs, and the integrated suppressor eliminates the need for external freewheeling diodes in many cases. The clearly labeled screw terminals and IP20 finger-safe design simplify installation and maintenance.

Full specifications

• Number of poles: 3
• Main contacts configuration: 3 NO
• Auxiliary contacts configuration: 1 NO + 1 NC
• Coil voltage: 24 V DC
• Rated operational current (AC-3, 400 V): 17 A
• Rated operational power (AC-3, 400 V): 7.5 kW
• Rated operational current (AC-1, 690 V): 32 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: DIN rail / screw mounting
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Mechanical life expectancy: 10 million operations
• Electrical life expectancy (AC-3): 1.5 million operations
• Standard compliance: IEC/EN 60947, VDE 0660, UL, CSA

Final note

Choose the DILM17-11(RDC24)-PI for dependable motor switching with built-in coil protection, backed by Eaton's engineering heritage.
