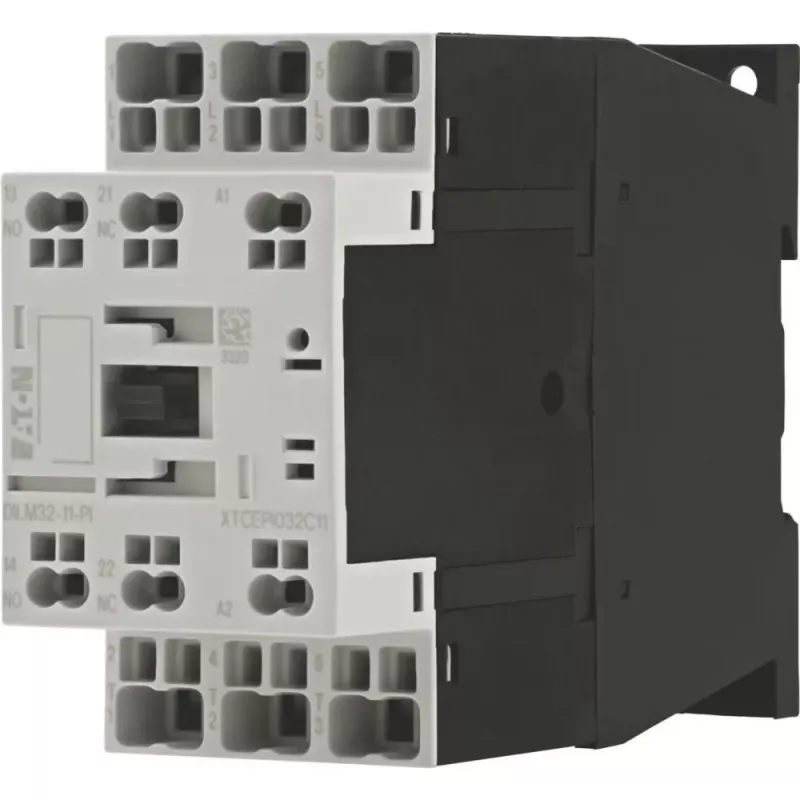

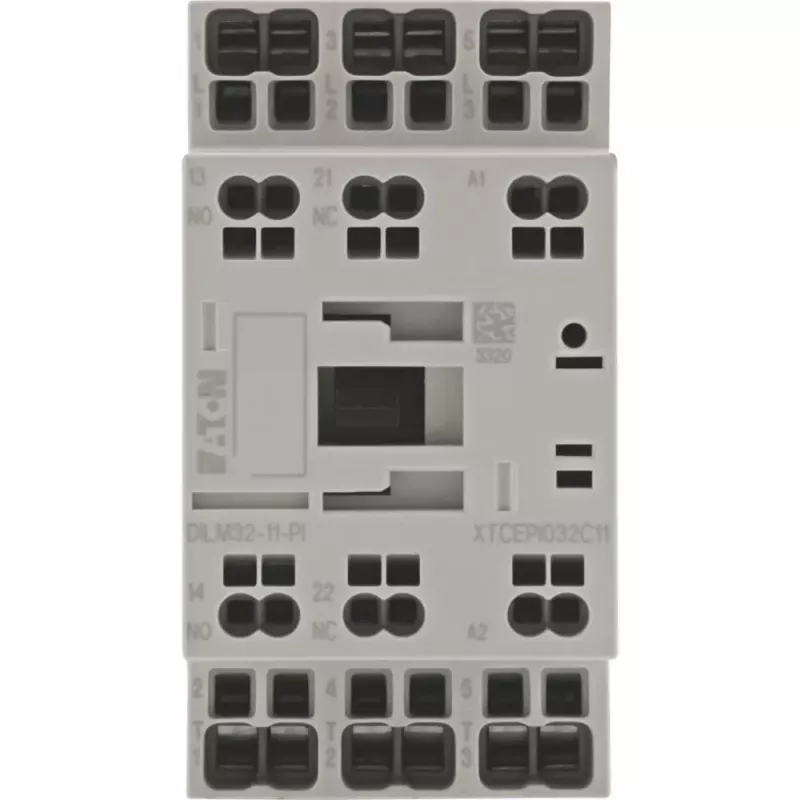

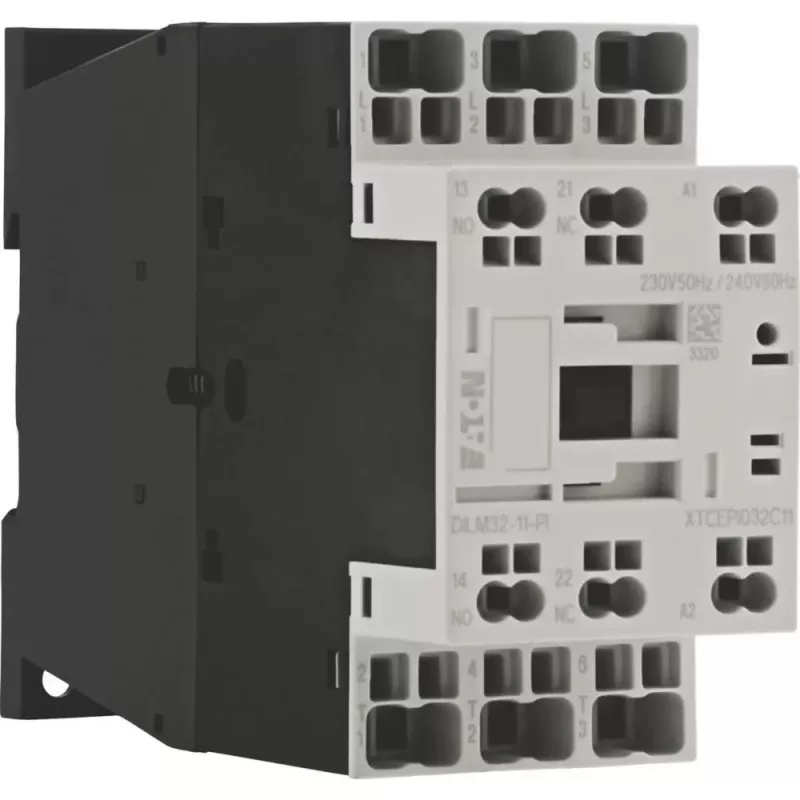

Eaton DILM32-11(RDC199293) 3-polige contactor, 32 A, 230 V AC spoel, 1NO+1NC

Industrial motor control demands a contactor that combines reliable switching, long service life, and straightforward installation. The Eaton DILM32-11(RDC199293) addresses these needs as a 3-pole contactor rated for 32 A at 400 V AC in AC-3 duty, making it suitable for motors up to 15 kW. Its 230 V AC coil and screw terminals simplify integration into control panels, while the auxiliary contacts provide feedback for interlocking or signaling.

Who is it for

Panel builders, maintenance engineers, and machine OEMs who need a robust, standards-compliant contactor for motor starting, heating loads, or lighting control in industrial environments.

Main features

• 3-pole main circuit rated 32 A (AC-3, 400 V) and 45 A (AC-1, 690 V).
• Control coil: 230 V AC, 50/60 Hz.
• Built-in auxiliary contacts: 1 normally open (NO) + 1 normally closed (NC).
• DIN rail or screw mounting for flexible installation.
• IP20 protection for use in enclosed panels.
• Long electrical life: 1.5 million operations (AC-3) and 10 million mechanical cycles.
• Complies with IEC/EN 60947, VDE 0660, UL, CSA.

Specifications

• Rated operational voltage: up to 690 V AC.
• Rated insulation voltage: 690 V (implied by operational voltage).
• Rated impulse withstand voltage (Uimp): 6 kV.
• Short-circuit protection: 40 A gG/gL fuse for main circuit.
• Terminal type: screw terminals.
• Ambient operating temperature: -25 to +60 °C.

Tips

For reliable operation, ensure the control voltage matches the coil rating and protect the contactor with the recommended fuse. Mount in a ventilated enclosure to stay within temperature limits.
