Eaton DILM32-XHI22 hulpcontactblok, 2NO+2NC, frontmontage, schroefklemmen 199311

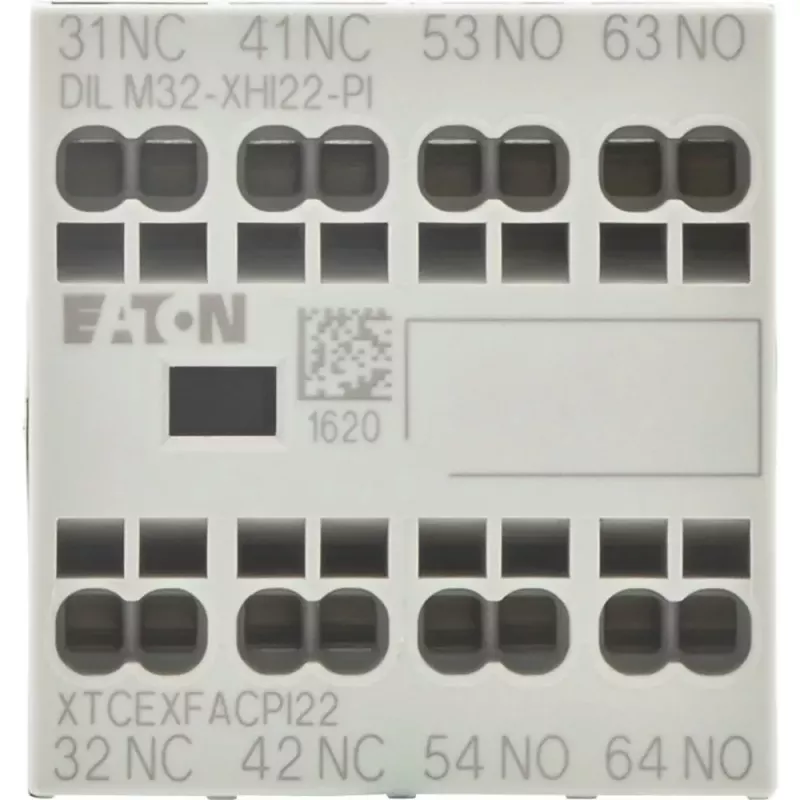

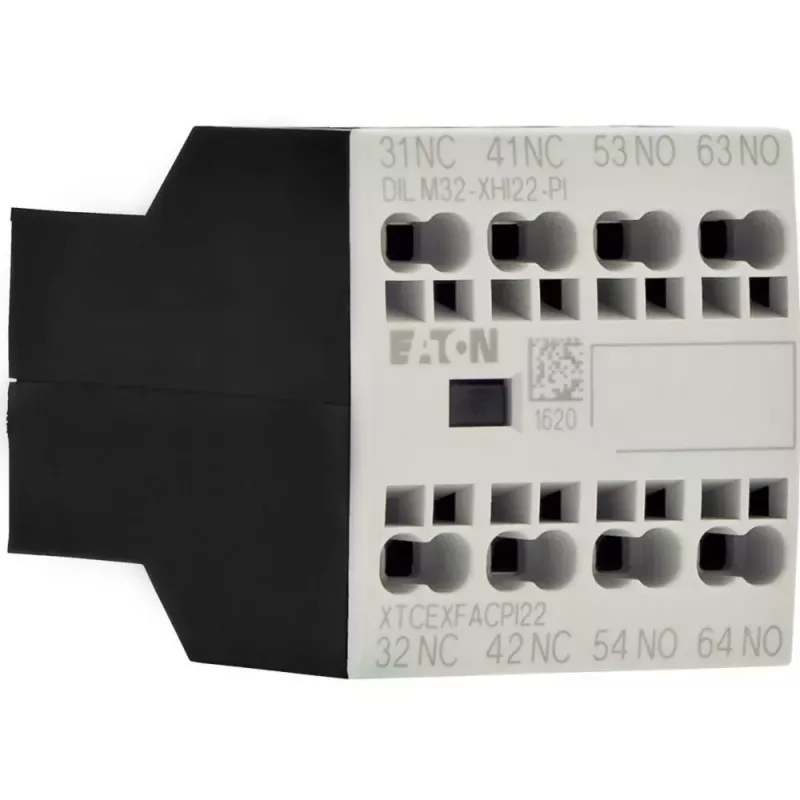

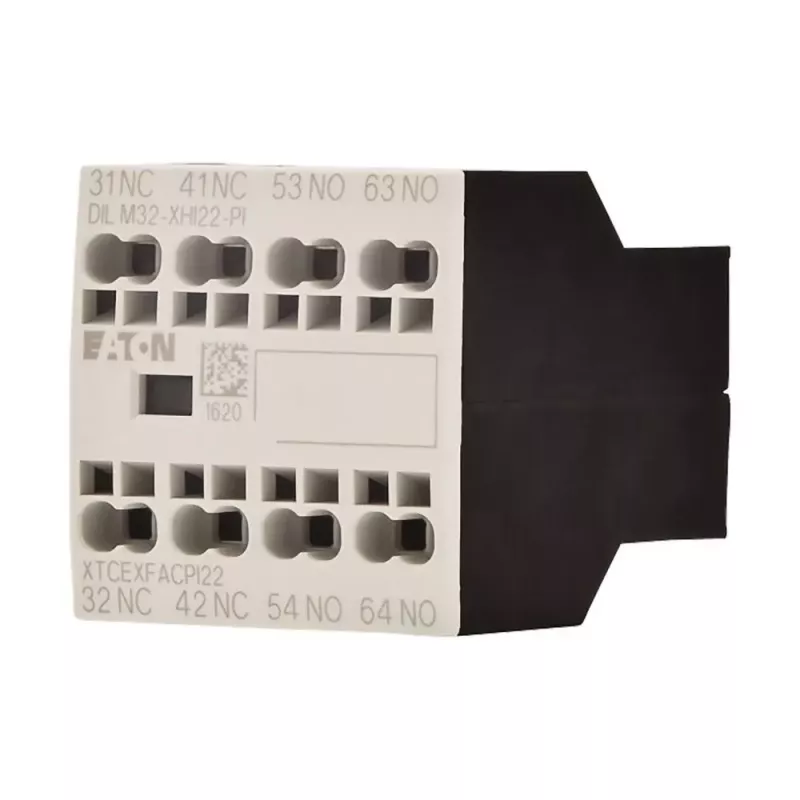

Panel builders and maintenance technicians use the Eaton DILM32-XHI22 auxiliary contact block to expand the signaling and control capabilities of DILM7 to DILM32 contactors. It mounts directly on the front of the contactor, providing four additional contacts for interlocking, status indication, or control logic in industrial control panels and motor starters.

Key specifications

• Contact configuration: 2 normally open (NO) + 2 normally closed (NC)
• Mounting type: front mounting
• Compatible with Eaton DILM7 to DILM32 contactors
• Rated insulation voltage (Ui): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 10 A
• Rated operational current (DC-13, 220 V): 0.22 A
• Terminal type: screw terminals
• Wire size (solid): 1 x (0.75 - 2.5) mm²
• Wire size (stranded): 1 x (0.75 - 2.5) mm²
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Standards: IEC/EN 60947-5-1
• Series: DILM
• Number of poles: 4
• Product type: auxiliary contact block

Why choose it

The DILM32-XHI22 offers a reliable way to add extra contacts without additional wiring complexity. Its front mounting design allows quick installation on compatible contactors, saving time during panel assembly or retrofits. The screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm², ensuring secure connections in industrial environments.

Ideal use cases

• Expanding contactor auxiliary contacts for control circuits
• Status signaling and interlocking in motor control centers
• Retrofitting existing Eaton DILM contactor installations
• Building control panels with limited space

Good to know

The contact block is part of the Eaton DILM series and is designed for use with DILM7 to DILM32 contactors. It is rated for operation in ambient temperatures from -25 to +60 °C and provides IP20 protection, suitable for installation inside enclosures. The product complies with IEC/EN 60947-5-1.
