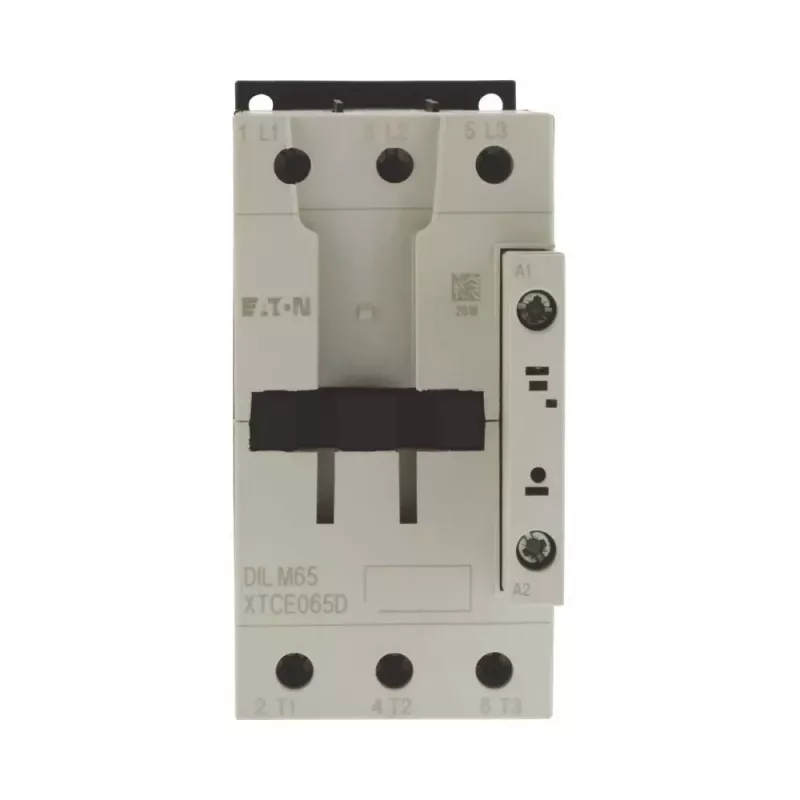

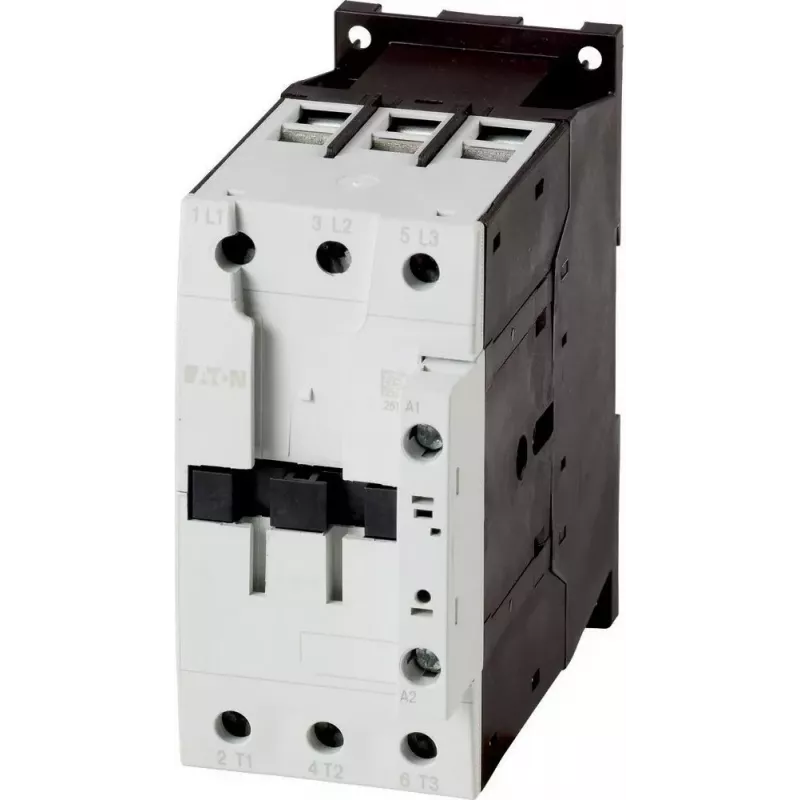

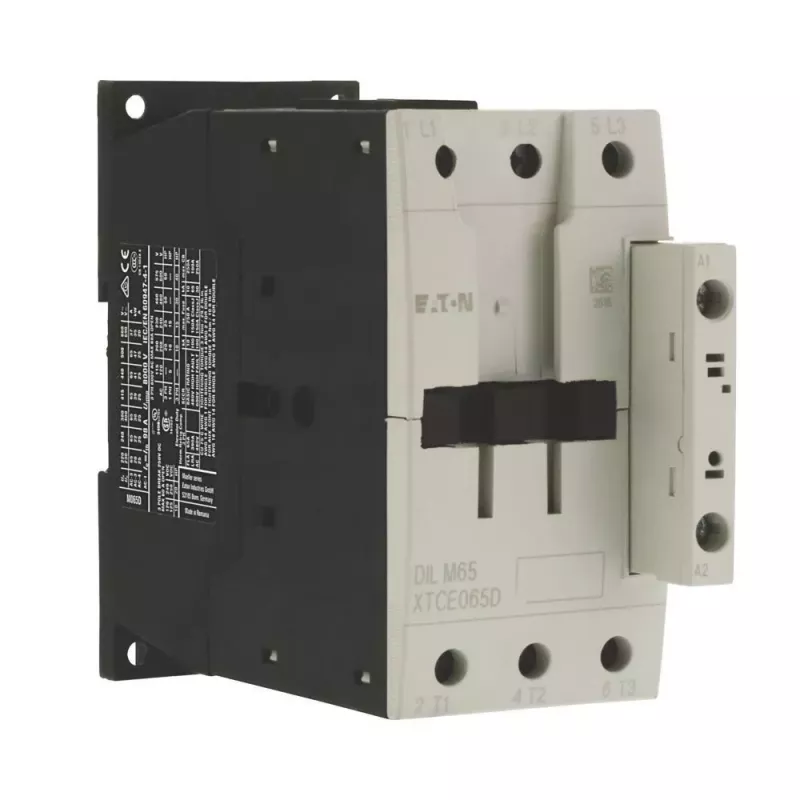

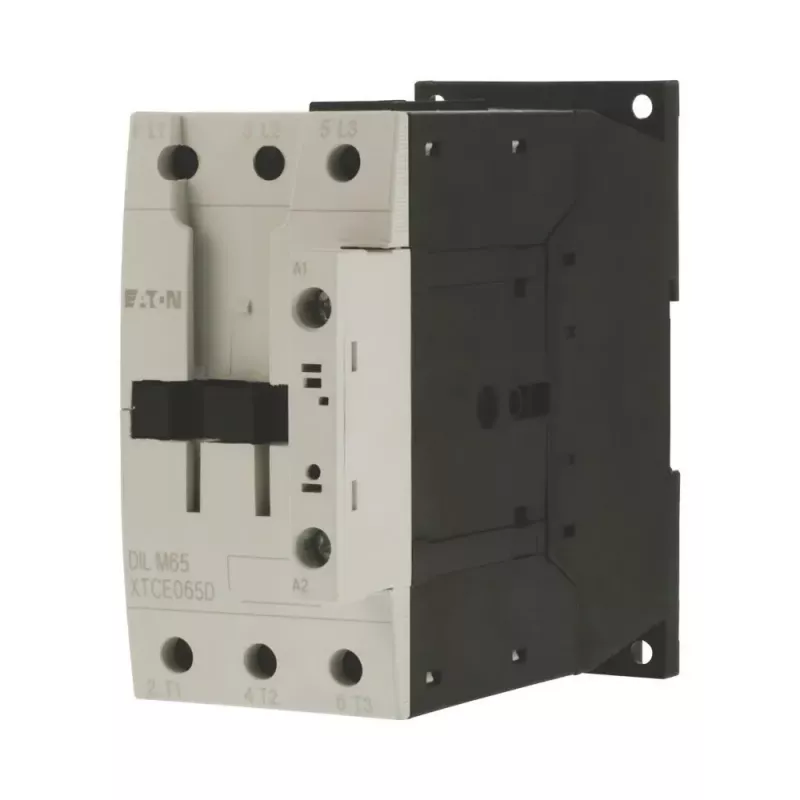

Eaton DILM65(RDC24) 3-polige contactor, 65 A, 24 V DC spoel 277908

Rated for 65 A (AC-3, 400 V) and 80 A (AC-1, 690 V), the Eaton DILM65(RDC24) contactor handles motor loads up to 30 kW with a 24 V DC coil. Its 3-pole design and built-in 1 NO + 1 NC auxiliary contacts suit demanding industrial switching.

Overview

The Eaton DILM65(RDC24) is a 3-pole contactor engineered for reliable switching of three-phase motors and other AC loads. It features a 24 V DC coil, screw terminals, and a compact design for DIN rail or screw mounting. With an IP20 rating, it is intended for installation in enclosed control panels.

What stands out

• High current capacity: 65 A (AC-3) and 80 A (AC-1) at 690 V AC
• Built-in auxiliary contacts: 1 NO + 1 NC for control and feedback
• Long mechanical life: 10 million operations
• Wide operating temperature range: -25 to +60 °C
• Complies with IEC/EN 60947 and VDE 0660

Technical details

• Number of poles: 3
• Rated operational current (AC-3, 400 V): 65 A
• Rated operational current (AC-1, 690 V): 80 A
• Rated operational voltage: 690 V AC
• Control voltage: 24 V DC
• Rated power (AC-3, 400 V): 30 kW
• Mounting: DIN rail or screw
• Degree of protection: IP20
• Terminal type: screw terminals
• Electrical life (AC-3): 1.5 million operations
• Mechanical life: 10 million operations
• Rated impulse withstand voltage: 8 kV
• Rated insulation voltage: 690 V AC
• Short-circuit protection: 80 A gG/gL fuse

Our verdict

A robust industrial contactor with high current ratings and a DC coil, ideal for motor control in automation systems.
