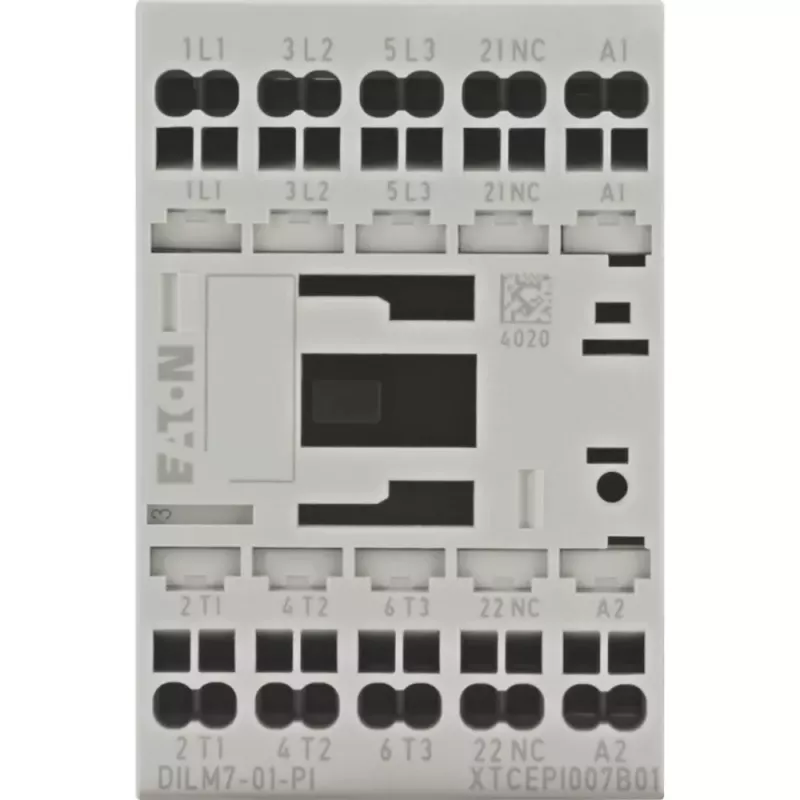

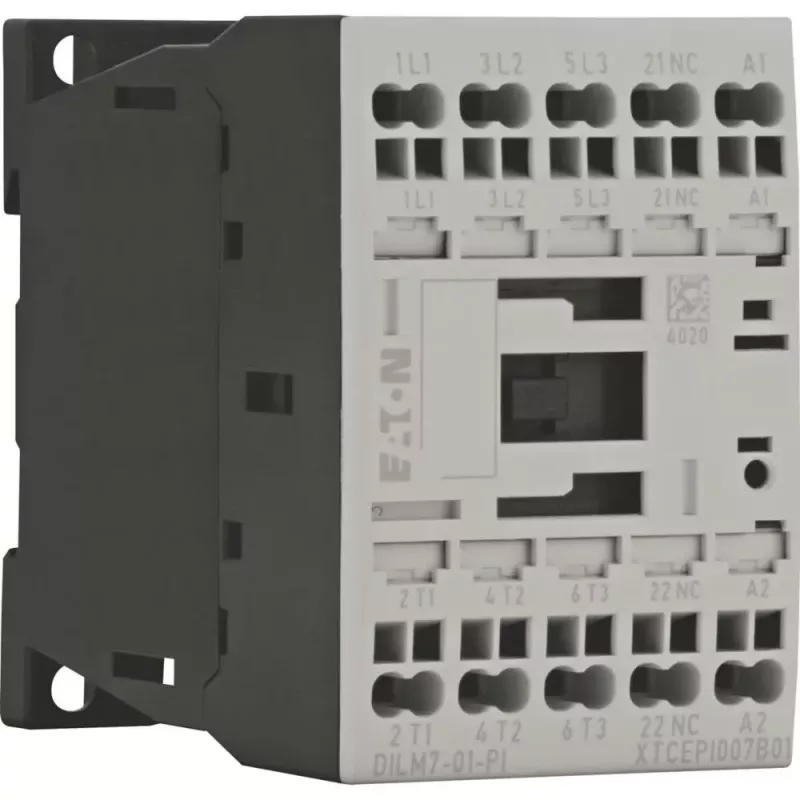

EATON DILM7-01(24VDC) vermogenscontactor 3-polig 400V 3kW 1NC 24VDC 199228

Power contactor for switching three-phase motors up to 3 kW at 400 V AC. The DILM7-01 operates with a 24 V DC coil and provides one normally closed auxiliary contact for control circuits.

Advantages

Compact frame size DILM7 to DILM15 supports DIN rail or screw mounting. Screw terminals ensure reliable wiring. Rated for 7 A operational current (AC-3) and 690 V insulation voltage.

Suitable for

• Motor starting and stopping in industrial control panels
• Switching resistive loads up to 7 A
• Applications requiring a DC control voltage

Key specifications

• Number of poles: 3
• Rated operational current (AC-3, 400 V): 7 A
• Rated operational power (AC-3, 400 V): 3 kW
• Coil voltage: 24 V DC
• Auxiliary contacts: 1 NC
• Main circuit rated operational voltage: 380–400 V AC
• Rated insulation voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Mounting: DIN rail / screw
• Terminals: screw
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 × 10⁶ operations
• Mechanical life: 10 × 10⁶ operations

Recommendations

Select appropriate overload relay for motor protection. Ensure coil voltage matches control circuit.
